Axis 02322-001 TQ1809-LE Axis TQ1809-LE Housing T92G Outdoor Camera Mount
Axis 02322-001 TQ1809-LE Axis TQ1809-LE Housing T92G Outdoor Camera Mount

Overview

SKU: 02322-001
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-Year
Write a Review 3% OFF

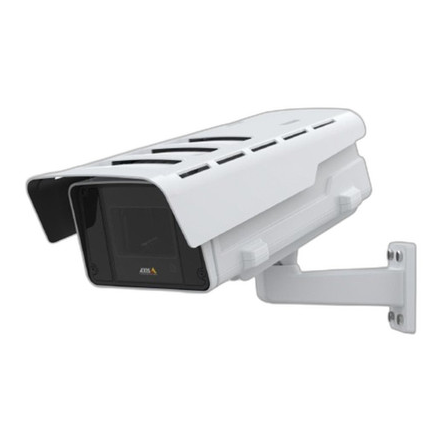

Axis TQ1809-LE Housing T92G Outdoor Camera Mount

Axis TQ1809-LE Housing T92G Outdoor Camera Mount The Axis TQ1809-LE Housing T92G is a professional-grade protective enclosure designed for outdoor IP …

Add to cart for sale price
$689.00
$669.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Axis TQ1809-LE Housing T92G Outdoor Camera Mount

$689.00
$669.99
Add to Cart

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price
Optional Add-Ons recommended
Services optional

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: 02322-001
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-Year
Description

Axis TQ1809-LE Housing T92G Outdoor Camera Mount

The Axis TQ1809-LE Housing T92G is a professional-grade protective enclosure designed for outdoor IP surveillance camera deployment. Built to withstand harsh environmental conditions, this aluminum housing delivers IP66, IP67, and NEMA 4X protection, making it ideal for demanding security installations across industrial, municipal, and enterprise environments.

Key Features

  • IP66/IP67/NEMA 4X-rated aluminum casing for dust and water resistance
  • IK10-rated impact protection
  • Integrated OptimizedIR illumination with 850 nm LEDs (30 m+ range)
  • Wide temperature operation: -40°C to 60°C
  • PoE-powered for simplified installation
  • White finish (NCS S 1002-B) with repainting capability
  • Supports condensing humidity (10–100% RH)

Supported Camera Models

Compatible with Axis Q1615 Mk III, Q1645, Q1647, Q1715, P1375, P1377, and P1378 network cameras.

Technical Highlights

Weighing 5.4 kg, the housing features OptimizedIR night vision technology with power-efficient, long-life LEDs delivering 30+ meters of infrared reach. All electrical components meet EMC, FCC, and international safety standards including IEC/EN/UL 62368-1. The enclosure is PVC-free and BFR/CFR-free, supporting sustainable facility practices.

Installation & Accessories

Includes installation guide, drill template, connector kit, Torx T20 driver, sunshield, connector guard, and wall mount. Optional mounting accessories and PT motor expansion available. Three-year manufacturer warranty included.

Expert Analysis
Specifications
Supported products: AXIS Q1615 Mk III Network Camera AXIS Q1645 Network Camera AXIS Q1647 Network Camera AXIS Q1715 Block Camera (HDMI and SDI outputs disabled) AXIS P1375 Network Camera AXIS P1377 Network Camera AXIS P1378 Network Camera
Casing: IP66-, IP67-, NEMA 4X- and IK10-rated Aluminum Color: white NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner.
Power Type: PoE
IR illumination: OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 30 m (98 ft) or more depending on the scene
Operating Temperature: -40 °Cto 60 °C (-40 °Fto 140 °F) Start-up: -40 °Cto 60 °C (-40 °Fto 140 °F) Humidity 10–100% RH (condensing)
Approvals: EMC EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, EN 55015, EN 61547 Safety IEC/EN/UL 62368-1
Weight: 5400 g (11.9 lb)
Sustainability: PVC free, BFR/CFR free
Included accessories: Installation guide, drill hole template, connector kit, Torx® T20 screw driver, sunshield, connector guard, AXIS T94Q01A Wall Mount
Optional accessories: T91 Mounting Accessories, T94 Mounting Accessories, YP3040 PT Motor, Bird Control Spikes, AXIS Door Switch A For more accessories, see axis.com
Warranty: 3-year warranty
Product Type: Accessory
Night Vision: IR
