Axis T8606 Media Converter Switch 24V DC
Axis T8606 Media Converter Switch 24V DCThe Axis T8606 Media Converter Switch is a compact, four-port network switching solution designed to extend an…
Axis T8606 Media Converter Switch 24V DC
$449.00
$435.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
5901-261
UPC:
7331021058958
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
3-year warranty
Description

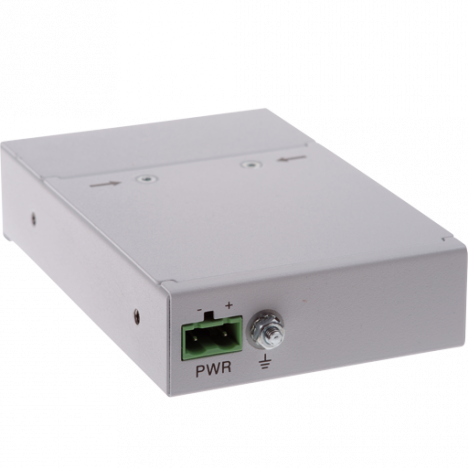

Axis T8606 Media Converter Switch 24V DC
The Axis T8606 Media Converter Switch is a compact, four-port network switching solution designed to extend and integrate copper and fiber optic connectivity across Axis IP surveillance systems. This DIN rail-mounted accessory bridges RJ45 and SFP connections, enabling flexible network topology in security installations where distance or electromagnetic interference demands optical fiber.
Key Features
- Dual connectivity: 2x RJ45 (10/100 Mbps) + 2x SFP slots (100/1000 Mbps)
- Support for SFP fiber optic or copper modules
- 24V DC powered operation (max 3.5W)
- Wide temperature range: -40°C to +75°C (-40°F to 167°F)
- Power and network LED indicators
- Metal enclosure, white finish (NCS S 1002-B)
- DIN rail mount for cabinet installation
Technical Specifications
- Connectors: RJ45 (shielded CAT5+ cables required), SFP fiber/copper modules
- Environmental: Indoor/cabinet rated, 10–85% RH non-condensing
- Dimensions: 121 × 80 × 28 mm; 284g
- Compliance: RoHS, REACH, WEEE, CE, EMC EN 55032 Class A, FCC Part 15 Subpart B
- Includes: DIN bracket, installation guide
- 3-year warranty
Applications
Ideal for extending Axis network video products across long distances using fiber optic modules, integrating mixed copper and fiber network segments, and deploying surveillance systems in electrically noisy environments where isolation is critical.
Specifications
Supported products:
All Axis network video products
Casing:
Metal Color: White NCS S 1002-B
Power Type:
24 V DC, max 3.5 W (power supply not included)
Connectors:
2x RJ45 connectors (10/100 Mbps) (Use shielded cables (STP) CAT5 or higher.) 2x SFP connectors (100/1000 Mbps) for SFP fiber optic modules or SFP to copper modules 1x power
Display and indicators:
Power LED indicator Network LED indicator (4x)
Mount Type:
DIN Rail mount
Environment Rating:
Indoor/Cabinet
Operating Temperature:
-40 °Cto 75 °C (-40 °Fto 167 °F) Humidity 10-85% RH (non-condensing)
Storage conditions:
-40 °Cto 75 °C (-40 °Fto 167 °F) Humidity 10–85% RH (non-condensing)
Approvals:
EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32, KCC KN32 Class A, KN35 Safety IEC/EN 60950-1
Dimensions:
121 x80x28 mm (4.76 x 3.14 x 1.1 in)
Weight:
284 g (0.63 lb)
Included accessories:
Bracket Mount DIN Clip, Installation Guide
Warranty:
3-year warranty
Product Type:
Accessory
Connectivity:
Wired
