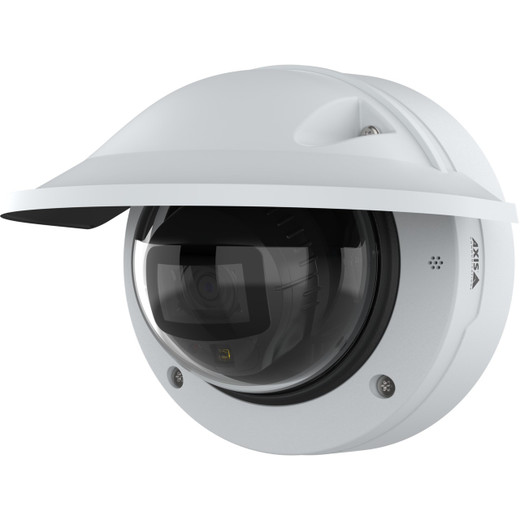

Axis 02986-001 8 MP Dome Camera

Axis Communications 02986-001 Overview

The Axis 02986-001 is a high-performance 8 MP dome camera designed for outdoor surveillance environments requiring robust image quality, advanced AI analytics, and vandal resistance. Built for security integrators and IT managers deploying mission-critical surveillance infrastructure, this model combines forensic imaging capabilities with intelligent object classification and counting analytics in a weatherproof, tamper-secure polycarbonate housing rated IP66/IK10.

Axis 02986-001 Key Features

• 8 MP Resolution at 30 fps: Captures full 8 MP video at 30 frames per second with support for multiple individually configurable streams, enabling simultaneous recording and live monitoring at different resolutions and frame rates.
• Forensic WDR and Lightfinder 2.0: Forensic Wide Dynamic Range combined with Lightfinder 2.0 technology delivers exceptional image detail in high-contrast and low-light outdoor scenes, compensating for glare, shadows, and challenging lighting without washout.
• Optimized IR with Extended Night Vision: Built-in infrared (850nm) with Optimized IR provides reliable 24/7 surveillance capability; infrared range extends to 131 feet (40m), enabling identification and object classification in complete darkness.
• Varifocal P-Iris Lens with Remote Control: 4.4–14.6 mm varifocal lens with motorized precision iris (P-iris) and remote zoom/focus capability allows post-installation optical adjustment without physical camera repositioning, reducing deployment time and site visits.
• AI-Powered Analytics: On-camera edge analytics support object classification, people and vehicle counting, privacy masking, and advanced behavior detection—reducing bandwidth and NVR storage requirements by processing intelligence at the camera edge.
• Compact H.265, H.264, and AV1 Codec Support with Zipstream: Multiple compression formats with Axis Zipstream technology intelligently reduce bitrate (up to 50%) while maintaining forensic detail, optimizing bandwidth utilization and storage efficiency across large deployments.
• Vandal-Resistant Polycarbonate Dome with Weathershield: Rated IP66 (complete dust protection, high-pressure water jets) and IK10 (20 joule impact resistance, equivalent to 2m steel ball drop), with included weathershield for extended environmental durability and reduced reflections.
• PoE+ Power (802.3at): Powered via IEEE 802.3at Type 1 Class 3 PoE+, eliminating need for dedicated power infrastructure and simplifying cabling in retrofit and new installations.
• Acoustic Sensors and Audio Analytics: Integrated audio input and acoustic sensors enable sound-triggered alerts, alarm detection, and multi-modal event correlation for comprehensive site awareness.
• Edge-Based Cryptographic Security: Axis Edge Vault with FIPS 140-3 Level 3 certification provides on-camera encrypted storage and case-open tamper detection, protecting recorded footage and preventing unauthorized access or evidence tampering.
• MicroSD Card Local Storage: Support for microSD card recording provides local failover storage, enabling continuous recording even during network interruptions.
• Supervised Digital I/O: Configurable digital inputs and outputs support alarm integration, relay control, and third-party device triggering, enabling automated response workflows within existing security ecosystems.

Axis 02986-001 Integration & Compatibility

The 02986-001 integrates with ONVIF-compliant video management systems (VMS) and security platforms supporting AXIS Camera Station, Milestone XProtect, and other enterprise surveillance software. On-camera analytics reduce dependency on separate analytics servers, lowering total cost of ownership. Edge Vault encrypted storage and FIPS 140-3 certification meet federal security compliance requirements. PoE+ powered deployment reduces infrastructure costs and simplifies network design for large multi-camera installations.

Axis 02986-001 Package Contents

• Axis Communications 02986-001 dome camera unit
• Included weathershield
