Axis P1245 Mk II Overview
The Axis P1245 Mk II (model 02857-021) is a modular standard camera delivered as a 10-unit bulk pack, designed for security integrators and system installers deploying indoor surveillance infrastructure. This camera combines a small-footprint main unit with a detachable sensor module, delivering 1080p video with on-device deep learning analytics for forensic and real-time object detection in compact, cost-conscious deployments.
Axis P1245 Mk II Key Features
- 1080p Full HD Resolution (2 MP) — Captures clear 1920×1080 video in 16:9, 16:10, and 4:3 aspect ratios, scalable from 1920×1080 down to 640×360, supporting up to 25/30 fps frame rate at all resolutions in H.264 and H.265.
- 111° Horizontal Field of View — Wide 111° horizontal FoV and 61° vertical FoV with fixed 2.8mm F2.0 lens and M12 mount, enabling broad coverage with minimum focus distance of 0.2 m for close-range applications.
- WDR Forensic Capture — Advanced wide dynamic range technology optimized for forensic detail recovery in mixed lighting, delivering superior image quality in high-contrast indoor environments.
- Deep Learning Processing Unit (DLPU) — Integrated deep learning compute capability on-device for real-time analytics, including object detection and classification, reducing bandwidth and backend server load.
- H.265, H.264, and Motion JPEG Streaming — Multiple individually configurable video streams with support for H.265 Main Profile, H.264 Baseline/Main/High Profiles, and MJPEG, enabling flexible VMS and archival integration.
- Axis Zipstream Technology — Bandwidth and storage optimization in both H.265 and H.264, reducing data transmission and NAS requirements without sacrificing image quality for storage-constrained deployments.
- PoE (802.3af) Powered Main Unit — Single-cable power and data delivery via standard PoE, simplifying installation in ceilings and wall-mounted locations without dedicated power runs.
- Modular Sensor Design with Detachable Cable — Separated main processing unit from sensor module with 8 m (26 ft) detachable cable, enabling flexible mounting of the sensor head away from the processor for discrete or remote placement.
- Edge Storage via microSD Card — Local recording capability using microSD cards for continuous or event-triggered archival, providing backup storage independent of network infrastructure.
- Signal-to-Noise Ratio >55 dB — High SNR at 0.2 lux (F2.0) in color mode ensures clean, low-noise imagery in dim indoor environments.
- Shutter Speed Control (1/16500 to 1/5s) — Programmable electronic shutter for frame-rate and motion-blur optimization across varying illumination levels.
- Image Overlay and Privacy Masking — Dynamic text overlay, configurable image rotation (0°/90°/180°/270° including corridor format), mirroring, and polygon-based privacy masking for compliance and monitoring focus.
Axis P1245 Mk II Integration & Compatibility
The P1245 Mk II integrates via standard network protocols including IPv4/IPv6, HTTP/HTTPS, RTSP/RTSPS, and secure transport (TLS). Supports ONVIF Profile G, M, S, and T specifications for VMS interoperability. Features Open API integration including VAPIx and AXIS Camera Application Platform (ACAP) for custom application development. One-click cloud connection is supported. Network management includes SNMPv1/v2c/v3, mDNS (Bonjour), UPnP, DNS/DNSv6, DDNS, NTP, PTP, and NTS. Security protocols include IEEE 802.1X (EAP-TLS) and SSH. The system-on-chip (SoC) CV25 with 1024 MB RAM and 512 MB Flash provides sufficient compute for on-device deep learning inference and multi-stream encoding.

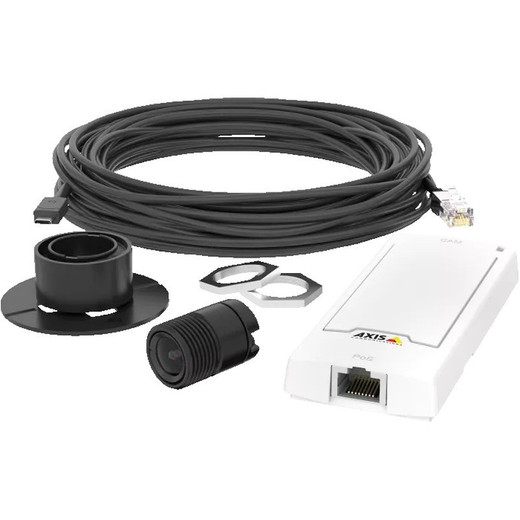

Axis P1245 Mk II Package Contents
- 10x Axis P1245 Mk II Camera main units
- 10x AXIS FA1105 Sensor Units
- 10x Detachable sensor cables (8 m / 26 ft each)
- Metal installation nuts
