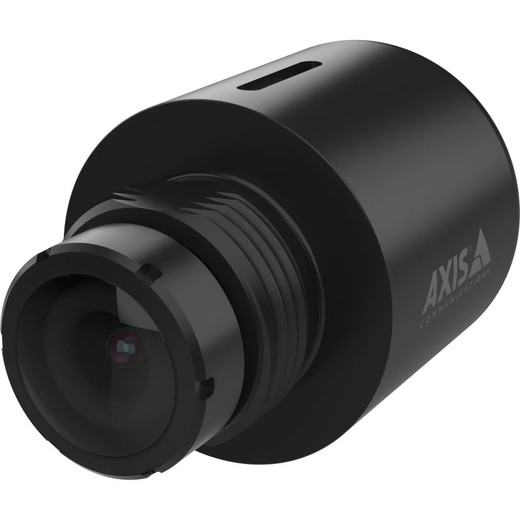

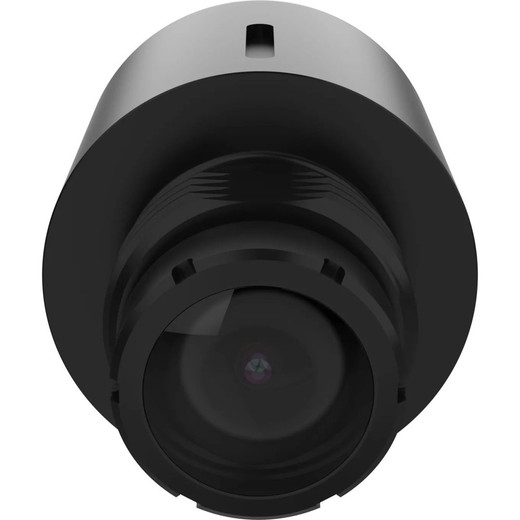

Axis Communications AXIS F2135-RE Fisheye Sensor Overview
The AXIS F2135-RE Fisheye Sensor (MPN 02641-021) is a compact, rugged panoramic image sensor designed for integration into modular surveillance systems. This bulk 8-pack delivers significant cost savings on transport, storage, and inventory while maintaining environmental efficiency. The sensor is engineered for wide-angle capture in demanding indoor and outdoor environments, with IP66/IP67 environmental ratings and extended temperature operation from -40°C to 60°C.
Axis Communications F2135-RE Key Features
- Ultra-Wide Panoramic Coverage: 185° horizontal field of view (1080p mode) and 97° vertical FOV deliver panoramic surveillance in a single sensor footprint, ideal for corridor monitoring, retail floor surveillance, and facility-wide perimeter coverage.
- 1/2.8" Progressive Scan RGB CMOS Sensor: High-quality image sensor with progressive scan technology ensures clean, flicker-free video capture across lighting conditions without interlacing artifacts.
- Dual Resolution Capture Modes: Supports 1920×1080 (1080p) at up to 60 fps with WDR capability (30 fps WDR mode) and 1280×720 (720p) at up to 180 fps (60 Hz), providing flexibility for bandwidth-constrained or high-frame-rate deployments.
- Advanced Wide Dynamic Range (WDR): Automatic WDR processing at 30/25 fps in 1080p mode expands the effective exposure range (1/20000s to 1.5s shutter speed), enabling capture of high-contrast scenes with backlighting or extreme lighting variation.
- Day/Night Capability with Fixed IR-Cut Filter: 0.1 lux minimum illumination in color mode combined with fixed IR-cut filter supports operation from daylight to low-light environments. Pairs with external IR illumination for true night vision via M12 connector compatibility.
- Rugged Industrial-Grade Construction: IP66 and IP67 ratings (with matching cable) plus IP6K9K high-pressure jet certification ensure reliability in wet, dusty, and aggressive wash environments. NEMA 4x stainless-steel casing option available; aluminum body with black NCS S9000-N finish. Operating temperature range -40°C to 60°C (-40°F to 140°F) with NEMA TS2 maximum rating of 74°C (165°F).
- Low Power Consumption: Typical 1W power draw, maximum 1.7W, minimizes PSU load and heat dissipation in compact modular frame systems.
- M12 Connector and Fixed Iris Optics: 1.98mm f/2.0 lens with fixed iris and M12 mount enables rapid integration into Axis F9 modular camera platforms and third-party 1/2.8" sensor-compatible systems. Minimal depth and weight (50g / 0.1 lb) support dense multi-sensor arrays.
- Comprehensive EMC and Safety Approvals: Meets EN55032 Class A, EN61000-6-1, FCC Part 15B Class A, ICES-3(A), VCCI Class A, KCKN32/35 Class A, and EAC certifications. Safety compliance includes IEC/EN/UL 62368-1 and 60950-22. Environmental stress testing per IEC 60068 series (temperature, humidity, vibration, shock). IP6K9K-2 and NEMA250 Type 4x ratings confirm washdown robustness.
- Bulk 8-Pack Sustainability: Environmentally friendly bulk packaging reduces per-unit transport carbon footprint and PVC-free materials support green procurement initiatives.
Axis Communications F2135-RE Integration & Compatibility
The AXIS F2135-RE is designed as a modular sensor for integration with Axis F9 series main units (F9111, F9114, F9114-B). Connection requires AXIS TU6004-E or TU6005 Plenum-rated cables with matching IP rating to maintain environmental sealing. Sensor capture modes (resolution, frame rate, WDR, and shutter speed) are determined by the paired main unit. The sensor operates within the broader Axis modular surveillance ecosystem and supports ONVIF-compliant architectures when deployed with compatible main units.
Axis Communications F2135-RE Package Contents
- AXIS F2135-RE Fisheye Sensor (quantity 8)
- Installation guide
