Axis P3247-LV Fixed Dome Camera

Axis P3247-LV Overview

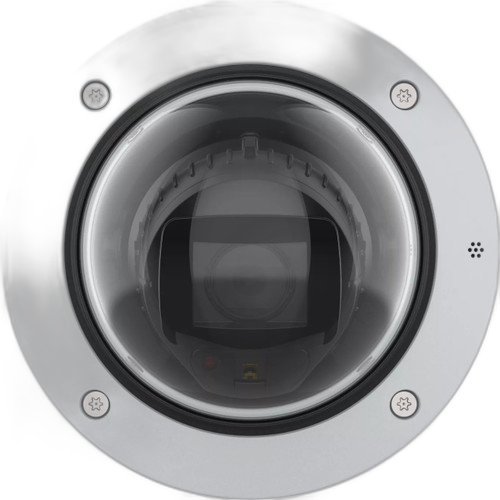

The Axis Communications P3247-LV (model 01595-001) is a 5 MP fixed indoor dome camera engineered for discreet, high-reliability surveillance in vandal-prone environments. Built with dust- and IK10 vandal-resistant casing, it delivers forensic-quality video in variable light conditions while maintaining a compact, low-profile form factor suitable for retail, education, transportation, and facility security deployments.

Axis P3247-LV Key Features

• 5 MP Resolution at 30 fps with Forensic WDR: Captures sharp, detailed video at 5 megapixels up to 30 frames per second with Forensic Wide Dynamic Range, enabling recovery of detail in both bright and shadow areas for evidence-quality footage in mixed-lighting scenes.
• Varifocal 3-8mm P-Iris Lens with Remote Zoom and Focus: Simplifies installation by allowing remote adjustment of zoom and focus post-deployment, eliminating costly re-visits for lens tuning and reducing labor during commissioning.
• Lightfinder 2.0 and OptimizedIR for Low-Light Performance: Combines Lightfinder 2.0 sensitivity enhancement with OptimizedIR illumination to maintain visibility in near-darkness without compromising color reproduction in twilight conditions.
• Motion-Adaptive Exposure: Automatically adjusts exposure to minimize motion blur during fast-moving subject capture, critical for retail loss prevention and facility monitoring applications.
• IK10 Vandal-Resistant Housing: Impact-rated to IK10 standard, delivering robust protection against intentional damage in high-risk indoor locations where tampering is a concern.
• H.265, H.264, and Motion JPEG Compression: Multiple codec support provides flexibility for bandwidth-constrained networks and legacy VMS compatibility. Zipstream integration reduces bandwidth and storage consumption without sacrificing quality.
• AXIS Object Analytics and Video Motion Detection: Built-in object detection and VMD enable intelligent alerting on people, vehicles, and behavioral events; tampering alarm detects lens obstruction, masking, or camera repositioning.
• Two-Way Audio with Audio Detection: Integrated microphone and speaker support bi-directional communication; audio detection triggers alerts on sound-based events such as breaking glass or raised voices.
• Supervised Digital I/O for Event Handling: Digital inputs and outputs with supervision enable integration with external alarm systems, door locks, and auxiliary devices for coordinated security responses.
• Firmware Security and Device Identity: Signed firmware, secure boot, and AXIS Edge Vault ensure firmware authenticity and protect device identity against unauthorized modification or spoofing.
• Memory Card Slot for Local Storage: Optional microSD card support enables independent local video recording and buffer storage during network interruptions, enhancing resilience.
• Power over Ethernet (PoE): Operates on standard PoE, simplifying cabling and power infrastructure while eliminating separate power supplies at the camera location.

Axis P3247-LV Integration & Compatibility

The P3247-LV supports ONVIF standards, enabling integration with a broad range of Video Management Systems and third-party platforms. Two-way audio, digital I/O supervision, and cloud-ready security features (signed firmware, secure boot, Edge Vault) position it for enterprise deployment in hybrid and edge-computing environments. Includes wall, ceiling, and junction box mounting brackets for flexible installation in conduits, recessed cavities, or surface-mounted applications.

Axis P3247-LV Package Contents

• Axis P3247-LV Camera Unit
• Mounting Bracket (wall/ceiling/junction box compatible)
