Altronix MAXIMAL1R 16-Output Rack Mount Controller
Altronix MAXIMAL1R Rack Mount Access Power Controller The Altronix MAXIMAL1R is a 16-output rack mount power controller designed for distributed acce…
Altronix MAXIMAL1R 16-Output Rack Mount Controller
$717.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
MAXIMAL1R
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
Lifetime Limited Warranty
Description

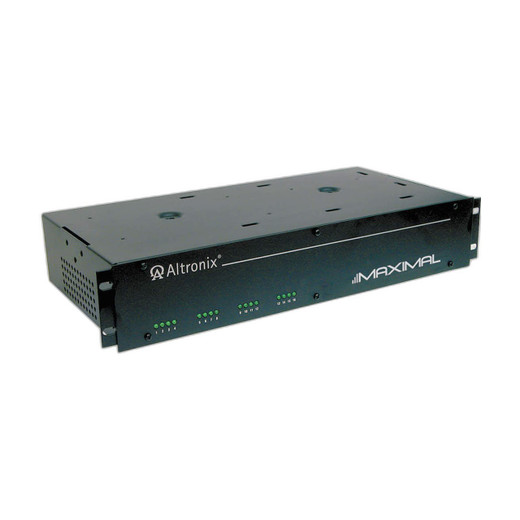

Altronix MAXIMAL1R Rack Mount Access Power Controller
The Altronix MAXIMAL1R is a 16-output rack mount power controller designed for distributed access control and security infrastructure. Operating from 115VAC input with selectable 12/24VDC output, the MAXIMAL1R delivers up to 4A per channel across 16 independently fused relay outputs, making it suitable for multi-door access control systems and entry point power distribution.
Key Features
- 16 fused relay outputs for independent circuit protection
- Dual voltage output: selectable 12VDC or 24VDC operation
- 4A maximum current capacity per output channel
- Integrated battery charger for backup power applications
- Rack mount form factor for standard equipment enclosures
- 115VAC input for standard building power
- Lifetime Limited Warranty
Applications
- Multi-door access control system power distribution
- Entry point electromagnetic lock and strike plate power
- Distributed relay switching for security perimeter control
- Backup-enabled power management for critical access points
Specifications
- MPN: MAXIMAL1R
- Form Factor: Rack Mount
- Input Voltage: 115VAC
- Output Voltage: 12/24VDC (selectable)
- Maximum Current: 4A per output
- Outputs: 16 fused relay outputs
- Battery Backup: Integrated charger included
Specifications
Form Factor:
Rack Mount
Input Voltage:
115VAC
Output Voltage:
12/24VDC
Max Current:
4A
Number of Outputs:
16 fused relay outputs
Battery_Backup:
Yes, integrated charger
Warranty:
Lifetime Limited Warranty
