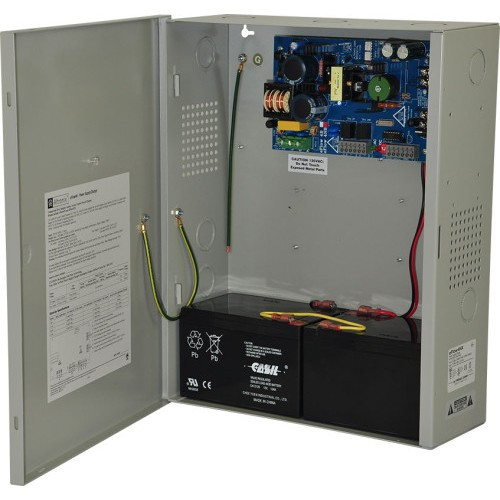

Altronix EFLOW4NX Two (2) Output Power Supply/Charger
Altronix EFLOW4NX Two Output Power Supply/Charger The Altronix EFLOW4NX is a UL Listed power supply and charger designed for security and access cont…
Altronix EFLOW4NX Two (2) Output Power Supply/Charger
$265.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
EFLOW4NX
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
Lifetime Limited Warranty
Description
Altronix EFLOW4NX Two Output Power Supply/Charger
The Altronix EFLOW4NX is a UL Listed power supply and charger designed for security and access control applications requiring dual-output capability with integrated battery backup. Operating from 120VAC 60Hz input, the EFLOW4NX delivers 12/24VDC output with a maximum total current capacity of 4A, supporting both primary and auxiliary load circuits. The single output with auxiliary configuration enables simultaneous powering of main security systems while maintaining dedicated charging and backup capacity.
Key Features
- Integrated battery backup with automatic switchover on AC loss
- Fire alarm disconnect capability for compliance with fire safety codes
- Multiple supervision outputs monitoring AC fail, low battery, and battery presence conditions
- Configurable 12/24VDC output voltage selection
- 4A total current capacity across all outputs
- UL Listed for commercial security installations
- Lifetime Limited Warranty coverage
Applications
- Access control system power and battery backup
- Security alarm panel primary and auxiliary power distribution
- Door lock power supplies with integrated charger functionality
- Integrated fire alarm disconnect installations
- Multi-circuit security infrastructure requiring centralized power management
Specifications
- Model: EFLOW4NX
- Input: 120VAC 60Hz
- Output Voltage: 12/24VDC selectable
- Output Configuration: Single output with auxiliary
- Maximum Current: 4A total
- Battery Backup: Yes
- Fire Alarm Disconnect: Yes
- Supervision: AC Fail, Low Battery, Battery Presence
- Agency Listing: UL Listed
- Warranty: Lifetime Limited Warranty
Specifications
Product Type:
Power Supply/Charger
Approvals:
UL Listed
Input Voltage:
120VAC 60Hz
Max Current:
4A total
battery_backup:
Yes
fire_alarm_disconnect:
Yes
Supervision:
AC Fail, Low Battery, Battery Presence
Output Voltage:
12/24VDC
Number of Outputs:
1 (Single Output with Auxiliary)
Warranty:
Lifetime Limited Warranty
