Altronix EFLOW3NX4D Power Supply/Charger with Fire Alarm Disconnect

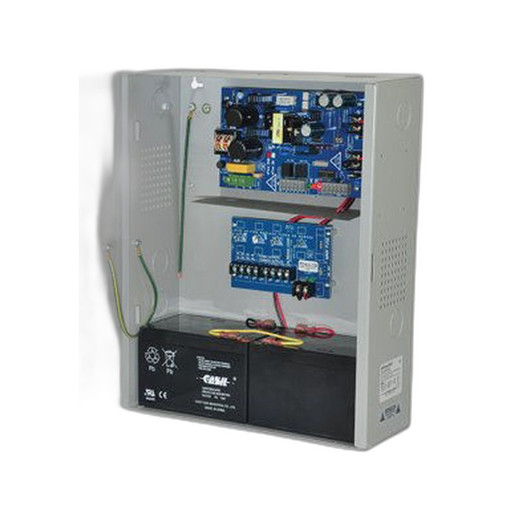

The Altronix EFLOW3NX4D is a UL Listed power supply and charger designed for security and alarm system installations requiring integrated fire alarm disconnect capability. Operating from 120VAC 60Hz input with 2A maximum total current, this unit delivers selectable 12/24VDC output across four PTC-protected outputs. Battery backup functionality combined with fire alarm disconnect ensures system resilience during power loss and emergency conditions.
Key Features
- Four PTC-protected outputs for load protection and automatic reset
- Selectable 12/24VDC output voltage configuration
- Integrated fire alarm disconnect for emergency protocols
- Battery backup support for continuous operation during AC failure
- AC Fail, Low Battery, and Battery Presence supervision
- UL Listed for security and fire alarm applications
- BC400 form factor enclosure for standard cabinet mounting
Applications
- Access control and alarm panel backup power
- Fire alarm system integration with emergency disconnect requirements
- Multi-zone security installations requiring distributed 12/24VDC supply
Specifications
- Input: 120VAC 60Hz, 2A maximum
- Output: Selectable 12/24VDC across four PTC outputs
- Enclosure: BC400
- Battery Backup: Yes
- Fire Alarm Disconnect: Yes
- Supervision: AC Fail, Low Battery, Battery Presence
- Warranty: Lifetime Limited Warranty
- Listing: UL Listed
Specifications
Product Type:
Power Supply/Charger
Approvals:
UL Listed
Input Voltage:
120VAC 60Hz
Max Current:
2A total
battery_backup:
Yes
fire_alarm_disconnect:
Yes
Supervision:
AC Fail, Low Battery, Battery Presence
Output Voltage:
12/24VDC
Number of Outputs:
4 PTC outputs
Enclosure_Dimensions:
BC400
Warranty:
Lifetime Limited Warranty
