Altronix EFLOW102N8 Power Supply/Charger with Fire Alarm Disconnect

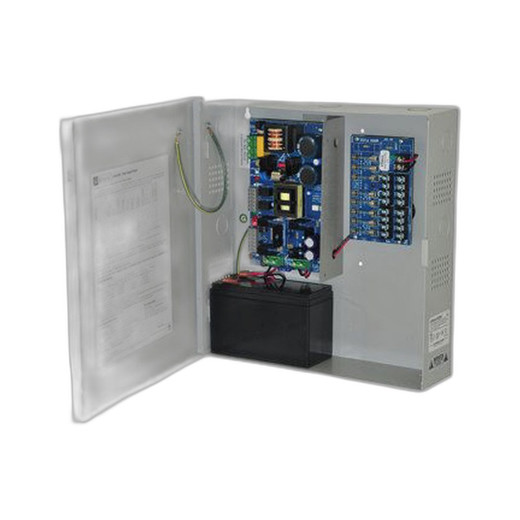

The Altronix EFLOW102N8 is a 12VDC power supply and charger with integrated fire alarm disconnect functionality, designed for security and life safety installations requiring coordinated power management. Rated for 120VAC 60Hz input with 10A total maximum current capacity, the EFLOW102N8 delivers 12VDC output across 8 separate circuits. The unit combines primary power distribution with backup battery charging in a single enclosure, eliminating the need for external battery chargers in monitored alarm and access control systems.

Key Features

• 8 independent 12VDC output circuits for modular load distribution
• Built-in battery charger with automatic switchover during AC loss
• Fire alarm disconnect relay—automatically removes power from protected devices during alarm activation
• AC Fail supervision—monitors input power status and triggers alerts on loss of mains voltage
• Low Battery and Battery Presence supervision—confirms backup battery health and connection status
• UL Listed for use in security and fire safety applications
• Lifetime Limited Warranty

Applications

• Central monitoring stations and security control rooms requiring redundant power with fire alarm integration
• Access control systems with battery backup and emergency shutdown capability
• Life safety installations where fire alarm signals must de-energize specific circuits
• Multi-zone intrusion detection systems with distributed power management
• Elevator security and emergency communication systems

Specifications

• Input Voltage: 120VAC 60Hz
• Output Voltage: 12VDC
• Number of Outputs: 8
• Maximum Current: 10A total
• Battery Backup: Yes
• Fire Alarm Disconnect: Yes
• Supervision: AC Fail, Low Battery, Battery Presence
• Certification: UL Listed
• Warranty: Lifetime Limited Warranty
