Altronix ALTV164 4-Output AC Power Supply 16-18VAC
Altronix ALTV164 4-Output AC Power Supply 16-18VAC The Altronix ALTV164 is a four-output AC power supply delivering 16VAC at 6A or 18VAC at 5A per ch…
Altronix ALTV164 4-Output AC Power Supply 16-18VAC
$127.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
ALTV164
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
Lifetime Limited Warranty
Description

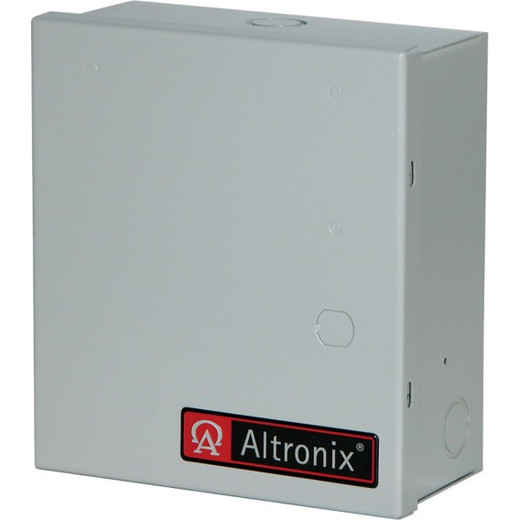

Altronix ALTV164 4-Output AC Power Supply 16-18VAC
The Altronix ALTV164 is a four-output AC power supply delivering 16VAC at 6A or 18VAC at 5A per channel. This compact unit accepts standard 115VAC 50/60Hz input and distributes regulated AC power across four independent outputs, making it suitable for security systems requiring multiple low-voltage AC feeds.
Key Features
- Four isolated AC outputs with selectable 16VAC or 18VAC configuration
- 6A maximum current at 16VAC, 5A maximum current at 18VAC
- Compact enclosure: 8.5" × 7.5" × 3.5"
- Standard 115VAC 50/60Hz input, 0.9A
- Operating temperature range 0°C to 49°C (32°F to 120°F)
- Lifetime Limited Warranty
Applications
- Multi-camera security systems requiring separate AC feeds
- Access control and intercom installations with distributed power needs
- Alarm panel and sensor networks in facility security
- CCTV infrastructure requiring independent channel isolation
Specifications
- Input: 115VAC 50/60Hz, 0.9A
- Output Voltage: 16VAC or 18VAC selectable
- Maximum Output Current: 6A @ 16VAC, 5A @ 18VAC
- Number of Outputs: 4
- Operating Temperature: 0°C to 49°C
- Dimensions: 8.5" × 7.5" × 3.5"
- Warranty: Lifetime Limited
Specifications
Operating Temperature:
0°C to 49°C (32°F to 120°F)
Input Voltage:
115VAC 50/60Hz, 0.9A
Output Voltage:
16VAC or 18VAC
Max Current:
6A @ 16VAC or 5A @ 18VAC
Number of Outputs:
4
Enclosure_Dimensions:
8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm)
Warranty:
Lifetime Limited Warranty
