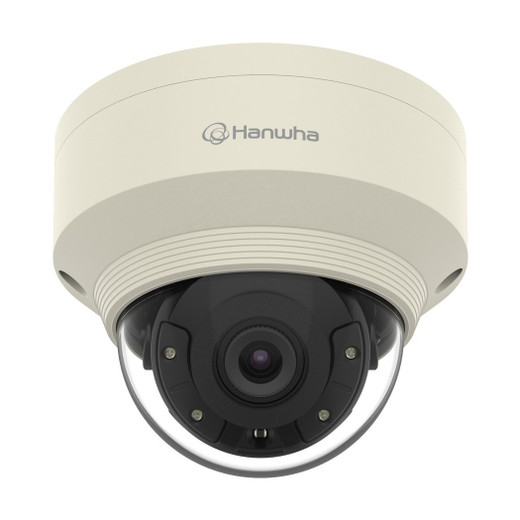

Hanwha XNV-8040R 5MP Outdoor Vandal-Resistant IR Dome

Hanwha XNV-8040R 5MP Outdoor Vandal-Resistant IR Dome IP Camera

The Hanwha XNV-8040R is a professional-grade 5MP outdoor dome camera engineered for demanding surveillance applications. Built with a 1/1.8" 6MP CMOS sensor delivering 5MP resolution, this camera captures fine detail across wide scenes with its 50.7° horizontal field of view. The robust IK10 vandal-resistant design and IP66/IP67 weatherproof certification ensure reliable operation in harsh outdoor environments, from parking lots to building perimeters, in temperatures ranging from -30°C to +55°C.

Key Features

• 5MP High-Resolution Imaging: 1/1.8" CMOS sensor with F1.6 aperture captures exceptional detail in daylight and low-light conditions
• 30m IR Night Vision: Built-in IR LEDs provide full-color operation down to 0Lux with illumination distance up to 98 feet
• Advanced WDR Technology: 120dB Wide Dynamic Range handles extreme lighting contrasts, complemented by BLC, HLC, and SSDR for optimized exposure
• Vandal-Resistant Design: IK10 rated dome construction withstands physical tampering and environmental stress
• PoE Powered: IEEE 802.3af Class 3 power delivery with 12VDC alternative—maximum 9W consumption
• Multi-Codec Support: H.265/H.264 and MJPEG compression with WiseStream II smart codec for bandwidth optimization
• Comprehensive Analytics: Motion detection (8-point polygonal zones), face detection, defocus detection, virtual line crossing, loitering, tampering alerts, and people counting
• Edge Storage: Dual microSD/SDHC/SDXC slots supporting up to 512GB for local recording and alarm event capture
• Audio Integration: Microphone/line-in input with selectable G.711 or G.726 compression; line-out audio output
• Flexible Installation: Supports 0°–354° pan, 0°–67° tilt, and 0°–355° rotation with video flip, mirror, and 90°/270° hallway view modes

Technical Highlights

The camera operates at 30fps maximum frame rate in H.265/H.264 modes and achieves color performance down to 0.16 Lux with IR supplementation. Digital noise reduction (SSNRⅤ), digital image stabilization, and lens distortion correction (LDC) enhance image quality across varying conditions. Multicast and unicast streaming support up to 20 simultaneous users with 10 configurable profiles. ONVIF Profile S/G/T and Wisenet open platform compatibility ensures integration with third-party VMS platforms.

Security is handled via HTTPS/SSL encryption, digest authentication, IP filtering, 802.1X support, and comprehensive user access logging. The camera features 1 alarm input and 1 output for integration with external devices, with event triggers linked to FTP upload, email notification, SD recording, and preset DPTZ recall.

Typical Applications

• Commercial building exteriors and perimeter security
• Parking structures and vehicle lots
• Retail storefronts and loading docks
• Public transportation hubs and facilities
• Industrial sites and equipment monitoring

Marty Allison

The XNV-8040R strikes a balance between imaging capability and operational efficiency, making it suitable for mid-to-large outdoor deployments. The 5MP resolution and wide 50.7° FOV accommodate monitoring of broad areas without requiring excessive camera count. The 120dB WDR and quad-compensation suite (BLC/HLC/WDR/SSDR) effectively manage glare from reflective surfaces—critical for parking and retail environments.

H.265 codec support with WiseStream II enables bandwidth-conscious deployments; at maximum 9W PoE consumption, it operates efficiently on standard Class 3 injectors. The dual-slot microSD architecture allows continuous recording with failover capability, valuable for remote sites with intermittent network access. Analytics depth—including directional detection, audio classification, and queue management—positions this camera for smart venue and loss-prevention applications.

IK10 certification provides genuine vandal resistance without optical compromise, a distinction from lower-rated models.

Product Documentation

📄 Download Product Datasheet (PDF)
