Hanwha XNV-6081 2MP Outdoor Vandal-Resistant Dome

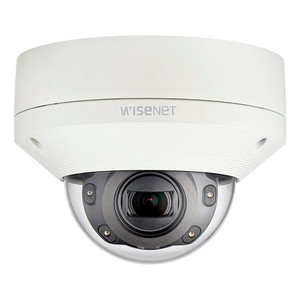

Hanwha XNV-6081 2MP Outdoor Vandal-Resistant Dome IP Camera

The Hanwha XNV-6081 is a professional-grade 2MP outdoor dome camera engineered for demanding surveillance applications requiring durability, intelligent analytics, and reliable 24/7 performance. Built with a vandal-resistant IK10-rated housing and IP66/NEMA 4X environmental sealing, this camera withstands harsh outdoor conditions, physical tampering, and temperature extremes from -50°C to +60°C. Ideal for corporate campuses, retail properties, parking facilities, and critical infrastructure, the XNV-6081 combines robust construction with advanced imaging technology.

Key Features

• 2MP 1/2.8" CMOS sensor with 1920x1080 resolution at up to 60fps
• 2.8–12mm motorized varifocal lens (4.3x zoom) with DC auto iris and P iris
• Day/night capability with IR illumination (0.015 Lux color / 0.0015 Lux B&W)
• 150dB Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes
• IK10+ vandal resistance and IP66/NEMA 4X weatherproof rating
• H.265/H.264/MJPEG video compression with WiseStream II smart codec
• Built-in gyro-based digital image stabilization and defog
• PoE (Class 3) power with optional 12VDC or 24VAC
• Dual microSD card slots for edge storage (up to 512MB)
• ONVIF-compliant with open platform support

Advanced Imaging & Analytics

The XNV-6081 delivers superior low-light performance with minimum illumination of 0.0015 Lux in black-and-white mode, enabling effective surveillance in near-darkness. The motorized varifocal lens provides flexible field-of-view adjustment (119.5° to 27.9° horizontal) without repositioning hardware. WDR technology captures detail in both bright and shadowed areas simultaneously, critical for outdoor environments with variable lighting.

Integrated video analytics include motion detection with 8 polygonal zones, defocus detection, fog detection, facial recognition, tampering alerts, virtual line crossing, loitering detection, and directional tracking. Advanced features support people counting, queue management, and heatmap generation for business intelligence and operational optimization.

Network & Security

Streaming up to 20 unicast users with multiple profiles (10 maximum), the camera supports IPv4/IPv6, RTSP, ONVIF Profile S/G/T, and SUNAPI HTTP integration. Security protocols include HTTPS/SSL encryption, 802.1X EAP authentication, IP address filtering, and comprehensive user access logging. Audio in/out connectivity supports G.711 and G.726 compression for two-way communication.

Operational Specifications

The camera operates reliably in extreme temperatures and humidity, with 1GB RAM and 256MB flash memory supporting real-time processing. Maximum power consumption is 7.0W via PoE (typical 4.9W), ensuring efficient deployment across large-scale installations. The compact aluminum dome (Ø180×125mm, 1.45kg) integrates seamlessly into modern surveillance architectures.

James Everett

The XNV-6081 represents a mature, field-proven solution for organizations requiring enterprise-grade outdoor surveillance without premium pricing. Its motorized varifocal lens eliminates the need for multiple fixed-lens cameras across varied distances, reducing deployment complexity and maintenance overhead. The 150dB WDR and dual IR capability address common outdoor challenges—backlighting from vehicle headlights, reflective surfaces, and nighttime visibility gaps.

WiseStream II adaptive bitrate control optimizes storage utilization and network bandwidth, particularly valuable for multi-camera deployments on limited infrastructure. Built-in analytics reduce dependency on external video management system processing, lowering overall system load. IK10 vandalism resistance and sealed construction justify the investment for facilities subject to theft, environmental exposure, or intentional damage. Compatible with ONVIF and open platforms, the camera integrates with third-party VMS solutions, avoiding vendor lock-in.

Practical considerations: The 0.5m minimum focus distance limits macro surveillance but suits typical property perimeter and entrance monitoring. Dual microSD slots enable redundant recording during network interruptions. The varifocal design requires initial setup calibration but provides lasting flexibility for future coverage adjustments.

Product Documentation

📄 Download Product Datasheet (PDF)
