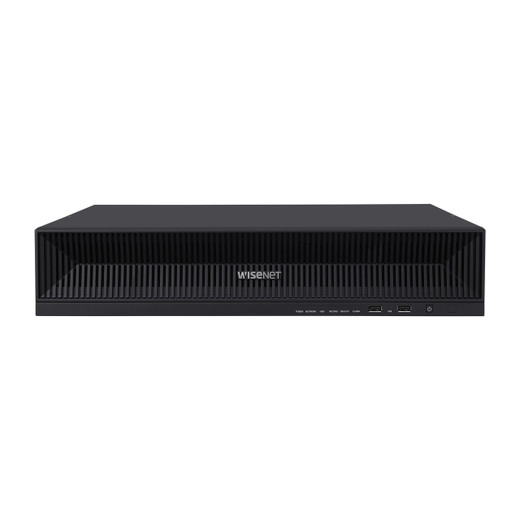

Hanwha XRN-1620B2-48TB 8K NVR (Intel based)

Hanwha XRN-1620B2 Overview

The Hanwha XRN-1620B2 is a 16-channel 4K network video recorder designed for mid-to-large enterprise surveillance deployments requiring high-bandwidth recording and multi-display monitoring. This Intel-based NVR supports up to 32 megapixel camera resolution with 140Mbps aggregate recording bandwidth, dual stream recording, and H.265/H.264/MJPEG compression. The XRN-1620B2-48TB configuration includes 48TB raw storage capacity via eight internal SATA drives (maximum 10TB per drive), providing extended retention for forensic and continuous monitoring operations.

Hanwha XRN-1620B2 Network & Recording Performance

• 16-channel network camera input; supports SUNAPI and ONVIF protocols
• 140Mbps maximum recording bandwidth; dual stream recording capability
• H.265, H.264, and MJPEG compression modes for flexible codec selection and bandwidth optimization
• Normal, scheduled (continuous/event), and event-triggered (pre/post) recording modes with bookmark functionality
• Event triggers: Alarm input, video loss, camera events (sensor, motion detection, video analytics, defocus, audio), dynamic events, and user-defined events
• Event actions: Email, event push, PTZ preset, alarm output, buzzer, monitor output, FTP, and SUNAPI commands
• Automatic Recovery Backup (ARB) and N+1 failover support for operational continuity

Hanwha XRN-1620B2 Display & Playback

• Dual monitor output: HDMI and VGA (FHD for dual display; UHD via single HDMI)
• Local display supports dynamic layout, virtual channel view, clone mode (up to 16 divisions), and expand mode (up to 9 divisions)
• Web UI 2.0 with no plugins required; supports 1/2H/2V/3V/4/6/8/9 multi-screen display layouts
• Local playback up to 32MP at 15fps (H.265); up to 32Mbps playback bandwidth
• Maximum 4 simultaneous users (1 local, 3 remote); up to 64-channel simultaneous playback (16 local, 16 per remote user)
• Fisheye dewarping support on web interface and CMS (CIF to 32MP resolution with H.264 4MP support and H.265 32MP support)
• Fast/slow forward and backward, frame-by-frame playback controls

Hanwha XRN-1620B2 Storage & Search

• 48TB raw capacity; maximum 8 internal SATA HDDs (10TB per drive)
• Embedded Linux operating system
• Wisenet AI metadata search support for Wisenet AI-compatible cameras
• AI search capabilities (Date & Time calendar view, event list, text search, smart search)
• QR code functionality for mobile integration and device management
