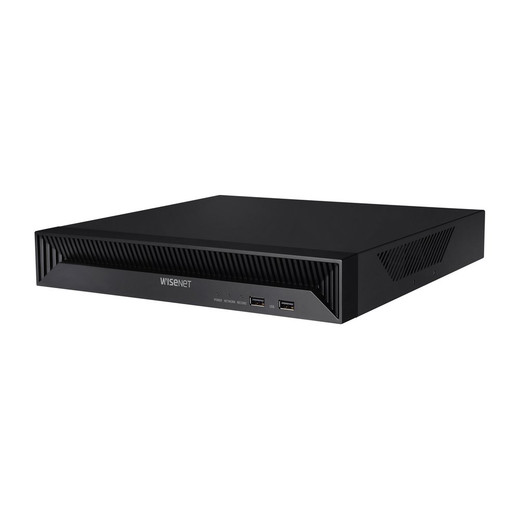

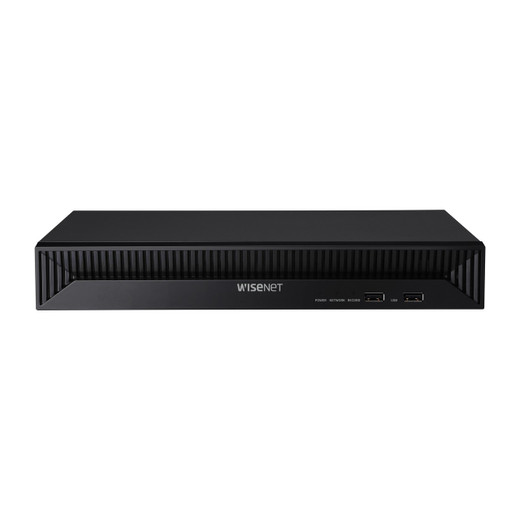

Hanwha QRN-830S-4TB Overview
The Hanwha QRN-830S-4TB is an 8-channel PoE network video recorder designed for mid-scale surveillance deployments requiring integrated power delivery and storage in a compact form factor. This NVR supports up to 8 megapixel camera streams with dual-stream recording capability, making it ideal for security integrators deploying mixed-resolution Hanwha Wisenet and standards-compliant ONVIF cameras. The unit combines embedded Linux architecture with plug-and-play PoE connectivity to simplify installation and reduce cabling costs.
Hanwha QRN-830S-4TB Key Features
- 8 Integrated PoE Ports with 65W Budget: Built-in PoE+ power delivery (802.3af) across 8 ports eliminates the need for external injectors, streamlining installation and reducing equipment footprint. Supports up to 8 network cameras simultaneously.
- 8 Megapixel Resolution Support: Capable of recording and decoding up to 8MP streams at real-time frame rates, enabling forensic-quality video capture across all 8 channels from compatible Wisenet and ONVIF cameras (CIF to 8MP).
- Dual-Stream Recording and 80 Mbps Recording Bandwidth: Supports simultaneous Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), and Bookmark recording modes. Maximum recording bandwidth of 80 Mbps accommodates high-resolution multi-camera deployments without performance bottlenecks.
- H.265, H.264, and MJPEG Codec Support: Flexible compression options reduce storage consumption while maintaining video quality. H.265 encoding delivers significant bitrate savings compared to H.264, extending recording duration on fixed storage.
- 4TB Fixed Internal Storage with 6TB Maximum Capacity: Includes one 1ea SATA HDD slot supporting drives up to 6TB, providing 4TB capacity in the standard configuration. Single HDD design simplifies maintenance and reduces RAID complexity.
- 4K Local Display via Dual HDMI Outputs: HDMI1 outputs 4K resolution at 3840x2160 (30Hz) for forensic-quality local monitoring; HDMI2 provides 1920x1080 at 60Hz. Dynamic multi-screen layout options (1/2H/2V/3V/4/6/8/9 configurations) for flexible monitoring scenarios.
- Local Decoding Performance: Local playback supports 8MP at 60fps, 1080p at 240fps, 720p at 240fps, and D1 at 240fps, enabling rapid video review and forensic analysis without network dependency.
- 32 Mbps Maximum Playback Bandwidth: Remote playback bandwidth management supports up to 4 simultaneous users (1 local, 3 remote), with maximum 32 concurrent playback channels (8 local, 8 remote per user) for secure multi-location access.
- ONVIF Protocol Compatibility: Supports SUNAPI and ONVIF protocols for seamless integration with third-party cameras and VMS platforms, ensuring future-proof interoperability beyond Hanwha Wisenet devices.
- Comprehensive Event Handling: Intelligent event triggering supports Alarm Input, Video Loss, Camera Events (Sensor, Motion Detection, Video Analytics, Defocus, Audio Detection), Dynamic Events, and User Events with granular actions including e-Mail notification, Event Push, PTZ presets, Alarm Output, Buzzer, Monitor Out, FTP, SUNAPI Command, and Shutdown.
- P2P Service with QR Code Provisioning: Quick-connect capability via QR code simplifies remote access setup. Compatible with Wisenet Mobile App (Android and iOS) and free Wisenet Viewer software for secure camera monitoring from any location.
- NDAA & FCC Compliance: Meets U.S. government procurement standards, making it suitable for integrations requiring NDAA compliance and federal acquisition frameworks.
Hanwha QRN-830S-4TB Integration & Compatibility
The QRN-830S-4TB supports SUNAPI and ONVIF protocols, enabling integration with Hanwha Wisenet cameras, third-party ONVIF-compliant devices, and industry-standard VMS platforms. Automatic Recovery Backup (ARB) functionality retrieves edge-recorded footage from connected cameras in the event of NVR failure, protecting against data loss. Fisheye dewarping is supported for panoramic camera feeds, and CMS integration enables centralized multi-site management. The unit runs Embedded Linux operating system, delivering stable, secure performance without licensed OS dependencies.
