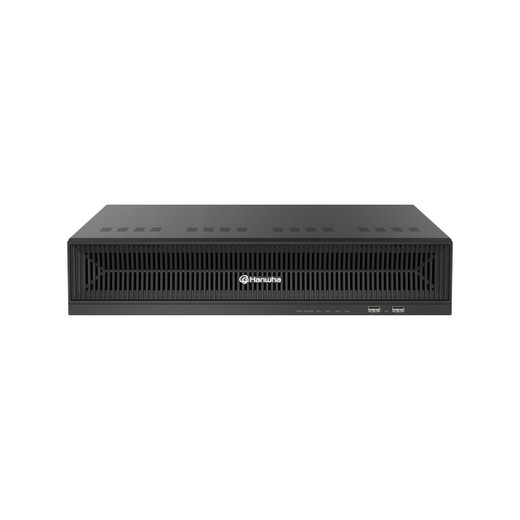

Hanwha WRN-1632-30TB Overview
The Hanwha WRN-1632-30TB is a professional-grade 2U rack-mount network video recorder designed for mid-to-large scale surveillance deployments. Built on Intel architecture with embedded Ubuntu 22.04 LTS, this NVR delivers 32-channel support with 250 Mbps recording throughput and up to 30TB of raw internal storage capacity. The WRN-1632-30TB integrates the Wisenet WAVE platform, enabling AI metadata support, cloud integration, and scalable monitoring across distributed sites via Wave client, mobile, and Cloud Sync interfaces.
Hanwha WRN-1632-30TB Key Features
- 32-Channel Network Video Recording: Supports up to 32 IP cameras with simultaneous recording and playback capability, ideal for enterprise and integrator deployments requiring medium-scale channel density without external expansion.
- 250 Mbps Recording Throughput: Delivers consistent high-bandwidth recording performance, supporting multiple 4K streams and mixed resolution environments without bottlenecking.
- 30TB Raw Internal Storage: Four hot-swap SATA drive bays, each supporting up to 10TB drives, provide 40TB maximum storage capacity for extended retention periods; 30TB configuration offers proven reliability and cost optimization for continuous operation.
- Wisenet WAVE Platform Integration: Pre-installed WAVE software provides native support for AI metadata extraction, enabling intelligent event filtering and searchability without third-party VMS dependencies.
- Multi-Codec Compression Support: Native H.265, H.264, and MJPEG codec support optimizes storage efficiency and bandwidth utilization across heterogeneous camera environments while maintaining compatibility with legacy equipment.
- Dual Gigabit Ethernet Interface: Two independent 1Gbps RJ-45 ports (WAN and LAN) enable network redundancy, load balancing, and isolated monitoring traffic for enhanced reliability in mission-critical deployments.
- Local Display and Configuration: Integrated HDMI and DisplayPort outputs support direct monitor connection for on-site configuration, basic monitoring, and manual search without network dependency; includes USB mouse for operator convenience.
- Compact 2U Rack Form Factor: 440mm width × 89.8mm height × 428.4mm depth fits standard 19-inch server racks; 5.47 kg weight and included rack-mount brackets enable rapid deployment in data centers and security operations centers.
- Four Professional Licenses Included: Bundled licenses provide immediate deployment flexibility for licensed features within the WAVE ecosystem, reducing initial licensing overhead.
- Embedded Ubuntu 22.04 LTS Operating System: Hardened Linux foundation with long-term support cycle ensures security patching availability and system stability for extended lifecycle deployments.
- Quad-Core Intel Processor with 8GB DDR4 RAM: Dedicated hardware acceleration enables smooth multi-stream decoding, AI processing, and concurrent user sessions without performance degradation.
- Multiple USB Connectivity: Front-panel USB 2.0 (2 ports) and rear-panel USB 3.0 (2 ports) support external storage, firmware updates, and configuration backup workflows typical in integrator environments.
Hanwha WRN-1632-30TB Integration & Compatibility
The WRN-1632-30TB integrates natively with the Wisenet WAVE ecosystem, supporting cloud synchronization, mobile client access, and distributed multi-site management. Dual Gigabit Ethernet ports (WAN/LAN) enable flexible network topology deployment, including redundancy and isolated management traffic. Front and rear USB ports, combined with HDMI/DP local display outputs, support standard integrator configuration and diagnostic workflows. Compatible with Hanwha Wisenet IP cameras and third-party ONVIF-compliant devices, this NVR suits both single-site installations and multi-location managed service provider deployments.
Hanwha WRN-1632-30TB Package Contents
- WRN-1632-30TB 2U Network Video Recorder (4x SATA HDD bays pre-populated with storage)
- USB Mouse
- Rack Mount Brackets
