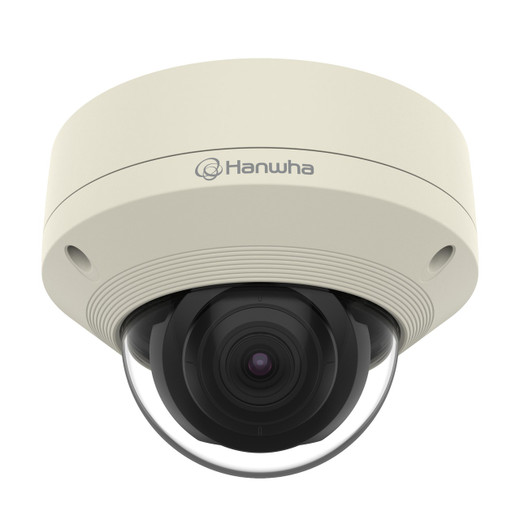

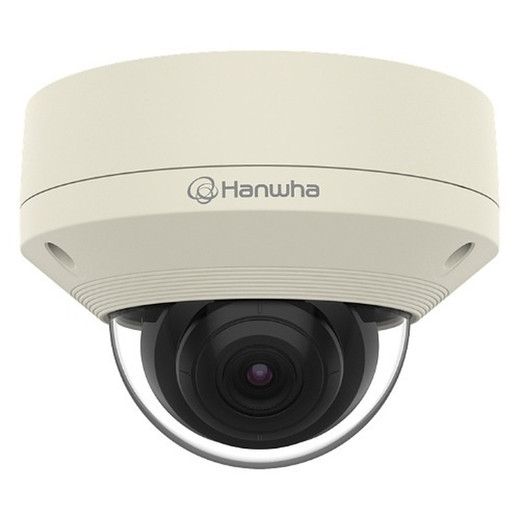

Hanwha XNV-L6080/VTG Overview
The Hanwha XNV-L6080/VTG is a 2MP Full HD network outdoor vandal dome camera built on the Wisenet X platform, powered by Wisenet 5 technology. Engineered for harsh outdoor environments requiring impact resistance and weatherproofing, this camera delivers 1080p video at 60 fps with a motorized vari-focal lens (3.2–10mm, 3.1x zoom, 109°–33.2° field of view) and advanced imaging features including 120dB wide dynamic range, true day/night operation, and defog detection. The triple codec engine (H.265, H.264, MJPEG) with WiseStream II compression technology optimizes bandwidth and storage without compromising image quality.
Hanwha XNV-L6080/VTG Key Features
- 2MP Full HD Resolution at 60 fps: Captures crisp 1080p video at up to 60 frames per second, enabling smooth motion capture and detailed forensic review in surveillance applications.
- Motorized Vari-focal Lens (3.2–10mm, 3.1x Optical Zoom): Field of view ranges from 109° (wide) to 33.2° (telephoto), allowing remote focal adjustment without physical camera repositioning—ideal for integrators optimizing scene coverage post-installation.
- 120dB Wide Dynamic Range (WDR): Delivers exceptional image clarity in challenging lighting conditions where bright and dark areas coexist, such as parking garages, building entrances, and mixed indoor/outdoor transition zones.
- True Day/Night Capability: Automatically switches between color mode and infrared (IR) operation based on ambient light levels, maintaining surveillance continuity across 24-hour cycles without manual intervention.
- Triple Codec Support (H.265/H.264/MJPEG) with WiseStream II: Flexible compression options reduce bandwidth consumption and storage requirements while maintaining image fidelity. WiseStream II intelligent bitrate adaptation prioritizes detail in regions of interest.
- Vandal-Resistant Design (IP66/IK10): IP66 rating ensures complete dust protection and powerful water jet resistance; IK10 rating withstands 20 joules of impact energy, defending against deliberate strikes and accidental damage in outdoor public-facing installations.
- Extended Operating Temperature Range (-40°C to +55°C / -40°F to +131°F): Operates reliably in extreme climates from arctic to desert conditions without thermal management complications.
- PoE Power Delivery (802.3af): Single-cable network deployment simplifies installation and reduces cabling infrastructure costs in outdoor environments.
- USB Port for Easy Installation: Enables streamlined initial setup and firmware updates without requiring separate diagnostic tools or network access.
- Hallway View Mode: Optimizes vertical field coverage for corridor and narrow-space applications, maximizing person detection in confined areas.
- Highlights Light Compensation (HLC) and Defog Detection: HLC mitigates backlight glare from direct sunlight or vehicle headlights; defog detection automatically adjusts imaging parameters when moisture or condensation affects the lens.
- Digital Image Stabilization (DIS): Compensates for vibration from wind, traffic, or camera mounting flex, delivering steady video without mechanical gyroscopes.
- Single SD Card Storage: On-camera microSD card slot provides local backup and edge storage capability for mission-critical footage.
Hanwha XNV-L6080/VTG Integration and Compatibility
The XNV-L6080/VTG supports ONVIF standard protocols, enabling seamless integration with third-party VMS platforms and IP network infrastructure. The camera is compatible with Hanwha Wisenet NVR and VMS systems as well as integrator-deployed multi-vendor architectures. USB-assisted provisioning and standard PoE (802.3af) power simplify deployment workflows across existing network backbone infrastructure.
