Hanwha XNV-8080RB Overview

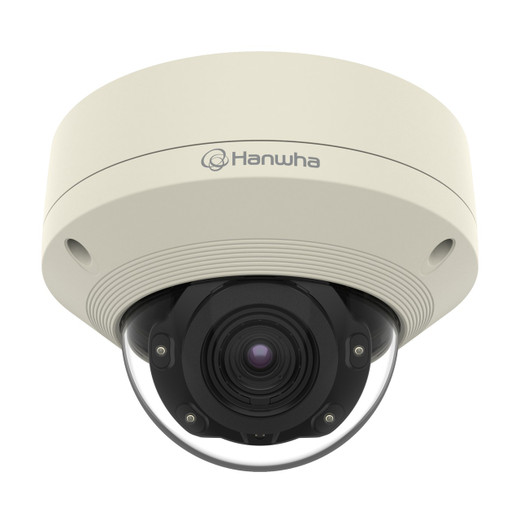

The Hanwha XNV-8080RB is a 5MP outdoor vandal-resistant dome camera engineered for demanding surveillance deployments. Powered by Wisenet X and Wisenet 5 platform, this camera combines high-resolution imaging with motorized varifocal optics and advanced video analytics to deliver reliable perimeter monitoring in challenging environments. The rugged IP67 and IK10 rated design withstands vandalism and harsh weather, making it ideal for facility protection, campus security, and critical infrastructure applications.
Hanwha XNV-8080RB Key Features
- 5MP Resolution at 30 fps — Captures sharp detail across wide deployment areas with standard 30 fps performance, ensuring smooth motion in real-time monitoring and recorded playback.
- Motorized Varifocal Lens (2.4x zoom, 3.9–9.4mm) — Field of view ranges from 92.1° (wide) to 38.7° (telephoto), enabling flexible framing without camera relocation. Simple USB-based installation and adjustment.
- 120dB Wide Dynamic Range (WDR) — Reveals detail in both bright sunlight and deep shadow simultaneously, critical for scenes with mixed lighting or reflective surfaces.
- High-Powered IR with 164ft Range — Dual high-output IR LEDs deliver true day/night capability with extended infrared coverage for perimeter surveillance and low-light detection.
- Triple Codec Compression (H.265/H.264/MJPEG) with WiseStream II — H.265 delivers superior compression efficiency, reducing bandwidth and storage by up to 50% compared to H.264, while WiseStream II technology adapts bitrate dynamically to scene complexity for further optimization.
- Advanced Video Analytics and Sound Classification — Integrated analytics enable intelligent intrusion detection, line crossing, zone entry/exit, and audio event classification for automated alerting and investigative playback.
- Dual SD Card Slots — Local edge storage via microSD cards provides backup recording and secure local footage retention independent of network connectivity.
- Full PoE/12VDC/24VAC Power Flexibility — Multiple power input options simplify integration into existing electrical infrastructure; PoE (802.3af) support enables single-cable IP deployment.
- IP67/IK10 Vandal-Resistant Rating — Meets IP67 water and dust ingress protection and IK10 impact resistance (20J), suitable for outdoor and semi-exposed indoor deployments exposed to physical stress.
- True Day/Night Mode with Hallway View and HLC — Automatic IR cut filter switching and specialized video processing (Hallway View for corridor scenes; High Light Compensation for backlit conditions) adapt to extreme lighting changes.
- Defog Detection and Digital Image Stabilization (DIS) — Automatic defog algorithms improve image clarity in humid or misty conditions; DIS compensates for vibration and minor camera movement.
- Wide Operating Temperature Range (-40°C to 55°C) — Rated for extreme cold and heat, supporting deployment in arctic, desert, and unheated facility environments.
Hanwha XNV-8080RB Integration & Compatibility
The XNV-8080RB supports ONVIF standards for broad VMS compatibility and third-party integration. USB configuration port simplifies on-site setup and lens adjustment without external tools. Matte black housing reduces glint and blends with facility architecture. NEMA 4X-rated enclosure provides additional corrosion resistance in coastal or chemically harsh environments.
