Hanwha TNM-C2712TDR T network Bi-spectrum Early Fire Detection

Hanwha TNM-C2712TDR Overview

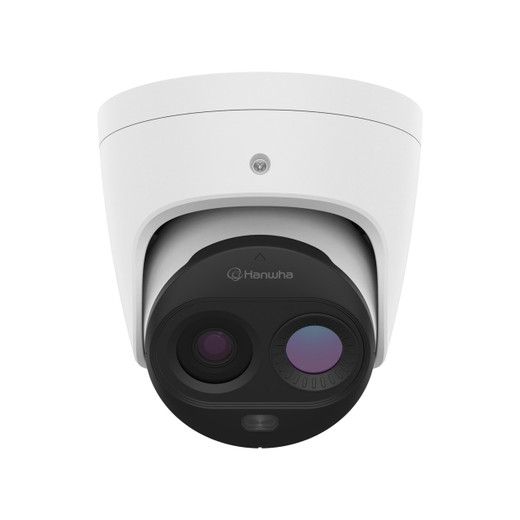

The TNM-C2712TDR is a Wisenet T network bi-spectrum early fire detection camera designed for rapid, proactive fire hazard identification in indoor and outdoor facility environments. This camera combines simultaneous 3MP visible-spectrum imaging with uncooled thermal sensing to detect both visible flame signatures and temperature anomalies, enabling facility managers and integrators to identify fire risks before they escalate into critical events.

Hanwha TNM-C2712TDR Key Features

• Dual-Sensor Bi-spectrum Architecture: 160 x 120 uncooled thermal sensor operating at 8 fps with <50mK NETD (noise equivalent temperature difference) paired with 3MP visible sensor delivering up to 2048 x 1536 resolution @ 30fps for simultaneous thermal and visual monitoring.

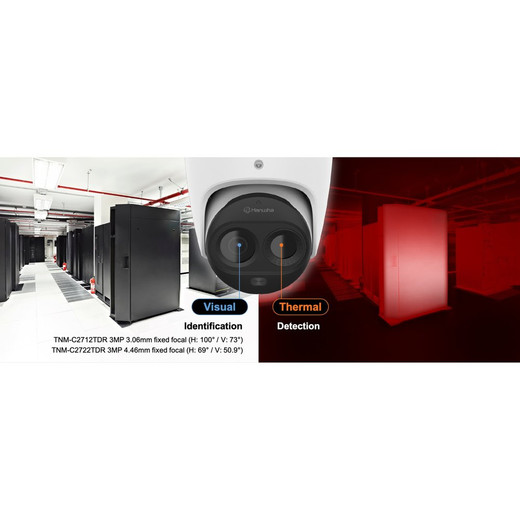

• Integrated Fixed Dual Lenses: Built-in 1.2mm thermal lens (95° HFoV / 69° VFoV) and 3.06mm visible lens (100° HFoV / 73° VFoV) provide wide-angle field of view for comprehensive facility coverage without additional lens procurement or installation complexity.
• Extended Temperature Detection Range: Radiometric measurement capability spanning -10°C to 450°C (-14°F to 842°F) enables detection of subtle temperature variations indicative of equipment malfunction, electrical faults, and incipient fire conditions across diverse industrial and commercial environments.
• AI-Powered Multi-Modal Analytics: Three user-programmable quadrangle ROIs for early flame detection using visible-spectrum AI; two quadrangle ROIs for radiometric temperature profiling; thermal motion detection; temperature difference detection; visible-spectrum motion detection; audio detection; and tampering alerts provide layered, configurable detection logic.
• Flexible Compression and Bandwidth Management: Triple codec support (H.265, H.264, MJPEG) with integrated Wisestream II compression delivers efficient streaming and local storage without compromising detection responsiveness, reducing network load and edge storage requirements.
• Programmable Alarm and Integration Workflows: Alarm events trigger image upload (email/FTP), email notifications, local and NAS recording, discrete alarm output, PTZ preset handover, HTTP/HTTPS/TCP messaging, MQTT publication, and audio clip playback—enabling seamless integration with existing fire management systems, access control platforms, and SIEM infrastructure.
• Local Edge Storage: MicroSD/SDHC/SDxC card support (up to 512GB) with AES-256 partition encryption provides secure on-device recording continuity independent of network availability, critical for facilities requiring forensic thermal imagery and visible-spectrum event logs.
• Secure Credentials and Device Identity: Hanwha Vision Root CA device certificates, encrypted credential storage, audit access/system/event logs, and secure SD card partitioning with AES-256 encryption meet enterprise cybersecurity baseline requirements for critical infrastructure surveillance.
• Standard PoE (802.3af) Powering: 6.2W typical / 10.8W maximum power consumption via IEEE 802.3af delivers flexibility in network design and eliminates the need for 12V DC or PoE+ midspan injectors in most facility deployments.
• Robust Environmental and Electrical Certification: Rated IP66/IP67 for wet, dusty, and washdown environments; IK09 vandal rating; UL 62368-1 safety certification; FCC Class A EMC compliance; operating temperature -30°C to +55°C supports both indoor HVAC rooms and uncontrolled outdoor enclosures.
• DORI Compliance (EN62676-4): Detect capability to 34.4m (112.8 ft), Observe to 13.7m (44.9 ft), and Recognize to 6.9m (22.6 ft) under wide conditions provide specification transparency and predictable coverage planning for facility risk assessments.

Hanwha TNM-C2712TDR Integration & Compatibility

The TNM-C2712TDR operates as an ONVIF-compliant IP camera on Wisenet T network architecture, enabling integration with ONVIF Profile S/T compliant video management systems, edge recording appliances, and NAS platforms. HTTP/HTTPS/TCP message handover and MQTT publication support custom event workflows and third-party fire management software integration. Discrete alarm output pins enable dry-contact integration with legacy fire panel interfaces and building automation systems. Mounting via single gang box option permits standard wall and ceiling installation in compliance with EN62676-4 detection distance guidance.

Hanwha TNM-C2712TDR Technical Specifications Summary

• Thermal Sensor: 160 x 120 uncooled @ 8 fps, <50mK NETD
• Visible Sensor: 3MP, max 2048 x 1536 @ 30 fps
• Thermal Lens: 1.2mm fixed, 95° HFoV / 69° VFoV
• Visible Lens: 3.06mm fixed, 100° HFoV / 73° VFoV
• Compression: H.265, H.264, MJPEG with Wisestream II
• Storage: MicroSD/SDHC/SDxC, up to 512GB x1, AES-256 encrypted
• Power: PoE (802.3af), 6.2W typical / 10.8W max
• Operating Temperature: -30°C to +55°C (-22°F to +131°F)
• Storage Temperature: -40°C to +60°C (-40°F to +140°F)
• IP Rating: IP66/IP67
• IK Rating: IK09
• Certifications: UL 62368-1; FCC 47 CFR 15 Subpart B Class A; CE/UKCA EN 55032 Class A; IEC 60529 IP66/IP67; IEC 62262 IK09
• Dimensions: Ø110 x 97 mm (Ø4.33 x 3.82 in)
• Weight: 650 g (1.43 lbs)
• Memory: 2GB RAM, 512MB Flash
• ROI Configuration: 3 quadrangle ROIs (early fire detection), 2 quadrangle ROIs (radiometric)
• Temperature Range: -10°C to 450°C (-14°F to 842°F)
