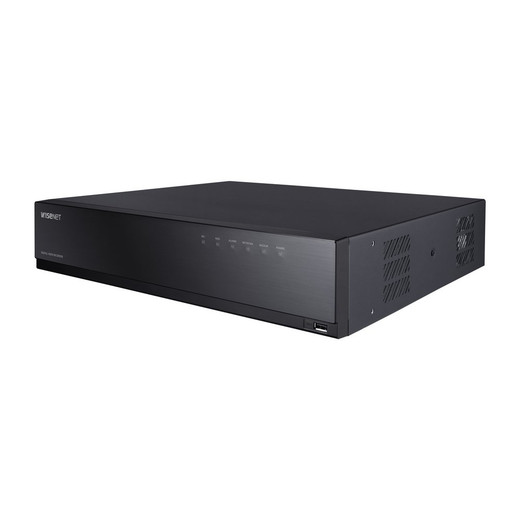

Hanwha HRX-835A-16TB HD+ Pentabrid DVR AHD (up to 8MP)

Hanwha HRX-835A Overview

The Hanwha HRX-835A is an 8-channel pentabrid DVR built for mixed-camera deployments where analog and network infrastructure coexist. This recorder accepts AHD, TVI, CVI, CVBS analog signals and IP camera feeds simultaneously—up to 8 analog channels plus 10 network channels—with maximum analog resolution up to 8MP and network resolution up to 8MP. The 16TB pre-configured storage provides substantial archive capacity for continuous and event-triggered recording across all input types.

Hanwha HRX-835A Key Features

• Pentabrid signal support: AHD (8MP, 5MP, 4MP, 1080p, 720p), HDTVI (8MP, 5MP, 4MP, 1080p, 720p), HDCVI (8MP, 5MP, 4MP, 1080p, 720p), CVBS (NTSC/PAL), and IP (8MP to CIF)
• 8 analog channels + up to 10 network channels for flexible camera mixing
• Recording bandwidth: max 80Mbps; playback bandwidth: max 32Mbps
• Triple codec compression: H.265, H.264, MJPEG for optimized storage efficiency
• Frame rates: 8/8fps at 8MP, 12/12fps at 5MP analog; 2MP network up to 30fps per channel
• Dual display outputs: 1x HDMI (up to 4K), 1x VGA for simultaneous monitoring
• 1x spot monitor output and dynamic/sequential layout options
• 8CH audio input, 1CH audio output for comprehensive audio surveillance
• 8 alarm inputs and 4 relay outputs with coaxial control support
• QR code quick access and support for up to 4 Users (1 local, 3 remote)
• Expandable storage: supports up to 4 SATA HDDs (6TB each, max 24TB); includes 16TB pre-configured
• Analog camera playback: 10CH simultaneously (local monitor), 4CH via mobile app
• Event triggers: alarm input, video loss, motion detection, tampering; network camera events include sensor, analytics, defocus, audio
• Event actions: e-mail, push notification, PTZ preset, alarm output, buzzer, monitor output, FTP, SUNAPI command
• ONVIF and SUNAPI (Wisenet) protocol support for standardized IP camera integration

Hanwha HRX-835A Recording & Playback Specifications

• Recording modes: Normal, Dual Stream, Schedule (Continuous/Event), Event with Pre/Post
• Main stream recording bandwidth: max 80Mbps across all 18 potential inputs
• Playback bandwidth: max 32Mbps supporting 10CH simultaneous local playback, 10CH via CMS, 4CH on Wisenet Mobile, 1CH via web browser
• Bookmark capability for quick event marking and retrieval
• Operating system: Embedded Linux for reliable, purpose-built performance
