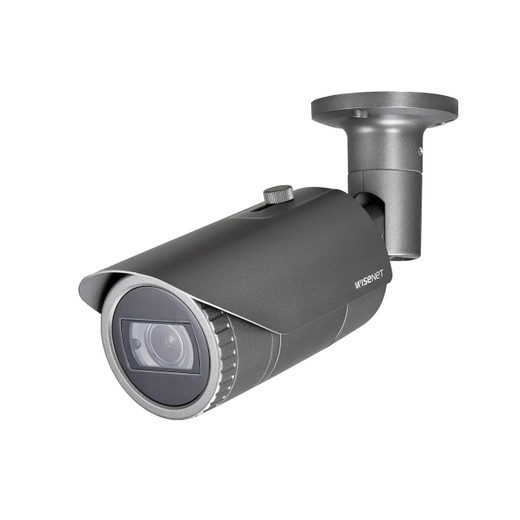

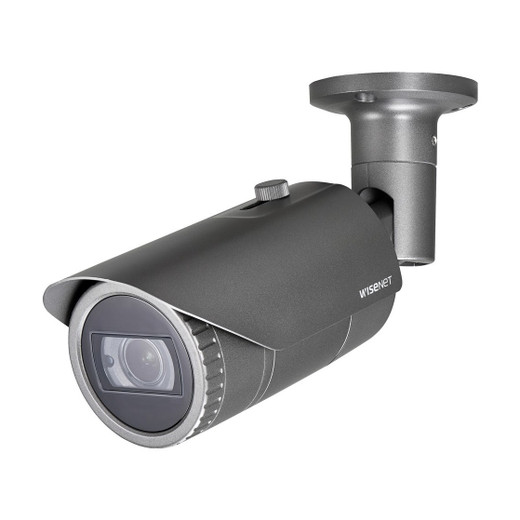

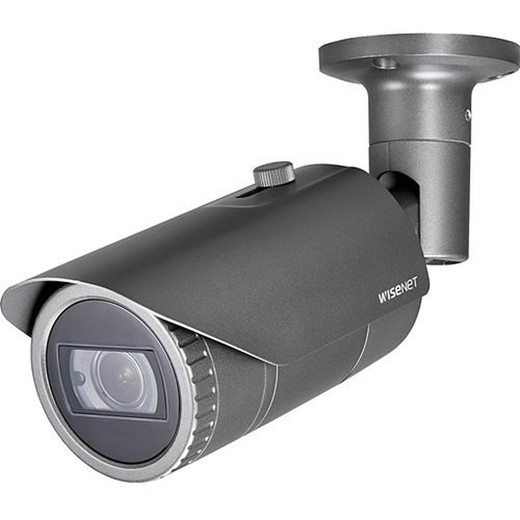

Hanwha HCO-7070RA Overview
The Hanwha HCO-7070RA is a 4MP Wisenet HD+ analog bullet camera designed for outdoor surveillance installations requiring long-range infrared imaging and robust environmental protection. Built with a 1/3" 4MP CMOS sensor delivering QHD (2560x1440) resolution at 30 fps, the HCO-7070RA combines low-light performance with manual varifocal lens control to adapt to varied deployment scenarios. Its dual power input (24VAC and 12VDC), IP66/IK10 rating, and 98-foot IR range make it suitable for perimeter monitoring, facility access points, and outdoor infrastructure protection where weather resistance and vandal resilience are critical.
Hanwha HCO-7070RA Key Features
- 4MP QHD Resolution at 30 fps — Captures 2560x1440 video delivering sufficient detail for identification-level surveillance while maintaining full-frame rate performance.
- Manual Varifocal Lens (3.2-10mm, 3.1X Zoom) — Provides flexible field-of-view adjustment from 93.48° (wide) to 29.44° (telephoto), enabling installers to optimize coverage during setup without requiring multiple camera SKUs.
- Extended IR Night Vision with 98-Foot Range — Integrated 850nm IR LEDs deliver viewable distance to 30 meters (98.43 feet) in complete darkness, with 0 lux performance when IR is enabled.
- Exceptional Low-Light Color Performance — Achieves 0.16 lux @ F1.6 in color mode (1/30 sec), supporting surveillance during twilight and heavily shaded conditions before IR activation.
- Day & Night Auto (ICR) with DWDR — Automatic infrared cut-filter switching (ICR) enables true day/night operation; Digital Wide Dynamic Range (DWDR) balances exposure across high-contrast scenes (bright windows, outdoor-facing surveillance).
- IP66 & IK10 Environmental Protection — Sealed against sustained water jets (IP66) and resistant to severe mechanical impact (IK10), meeting requirements for outdoor installations exposed to weather and potential vandalism.
- Dual Power Input (24VAC / 12VDC) — Supports both legacy analog systems (24VAC) and modern DC power distribution, with maximum consumption of 5.8W across both voltage standards for energy-efficient deployments.
- AHD and CVBS Transmission Formats — Native support for AHD (Analog High Definition) via BNC output and CVBS fallback via 2-pin connector, ensuring compatibility with hybrid DVR systems and legacy infrastructure.
- Extended Transmission Distance (500m Max) — Analog coaxial transmission supports runs up to 500 meters, reducing cabling costs in large perimeter deployments.
- 4-Zone Motion Detection with 2-Zone Privacy Masking — Configurable motion analytics and privacy zones reduce false alarms and protect sensitive areas without recording.
- Advanced Image Processing — 2D Digital Noise Reduction (2DDNR), electronic shutter (1/30–1/12,000 sec), and multiple gain levels (Low/Middle/High/Very High) maintain clarity across variable lighting and movement speeds.
- Flexible White Balance Control — Auto Tracking White Balance (ATW), Auto White Balance (AWC), manual, indoor, and outdoor presets adapt color accuracy to varying light sources and environmental conditions.
Hanwha HCO-7070RA Integration & Compatibility
The HCO-7070RA transmits over standard coaxial cable via ACP (Analog Camera Protocol) and CVBS, integrating seamlessly into hybrid DVR systems and analog surveillance backends. Its plug-and-play installation, dual power flexibility, and extended transmission distance (500m) make it compatible with both legacy analog infrastructure and modern migration scenarios. Alarm input and output provide integration hooks for external triggers, access control events, and system notifications.
Hanwha HCO-7070RA Package Contents
- HCO-7070RA Camera Unit
- Installation Cable (2-pin connector for CVBS)
