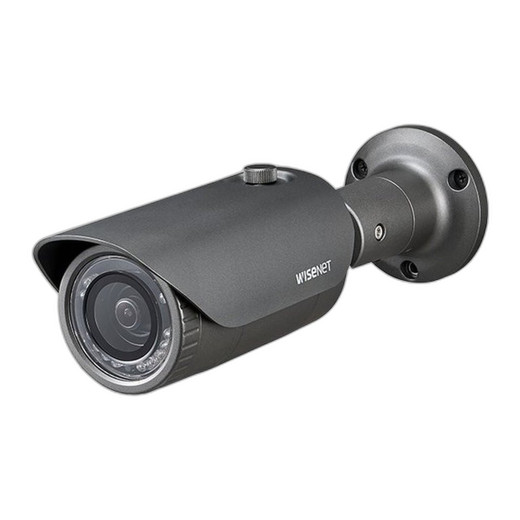

Hanwha HCO-7010RA HD+ 4MP IR bullet camera

Hanwha HCO-7010RA Overview

The Hanwha HCO-7010RA is a 4MP Wisenet HD+ analog IR bullet camera designed for fixed outdoor surveillance deployments requiring robust day/night imaging and vandal resistance. This QHD-resolution camera delivers 2560 x 1440 at 30 fps with a built-in 2.8mm fixed lens, offering a 107.48° horizontal field of view. The HCO-7010RA combines analog transmission (AHD or CVBS) with integrated infrared illumination and digital wide dynamic range, making it ideal for integrators deploying analog-based systems where network infrastructure is unavailable or cost-prohibitive.

Hanwha HCO-7010RA Key Features

• QHD 4MP Resolution: Captures 2560 x 1440 pixels at 30 fps, delivering sharp detail for identification and forensic review in fixed surveillance applications.
• Ultra-Low Light Performance: Achieves 0.26 lux in color mode (F1.8, 1/30 sec) and 0 lux in black-and-white with infrared LED enabled, supporting 24/7 monitoring without network lighting.
• 20-Meter IR Illumination: Integrated infrared LED provides 20m (65.62 ft) viewable range, enabling round-the-clock coverage in darkened or unlit environments.
• Intelligent Day/Night with ICR: Automatic image control rotation (ICR) switches between color and monochrome modes based on ambient light, preserving image detail across day and night transitions.
• Digital Wide Dynamic Range (DWDR): Compensates for backlit and high-contrast scenes, ensuring visible detail in both shadows and bright areas.
• Dual Transmission Format Support: Operates via AHD (coaxial) or CVBS (composite video via 2-pin connector) on the same camera body, allowing flexible integration with existing analog DVR infrastructure.
• Extended Coaxial Reach: Supports transmission distances up to 500m over coaxial cable, reducing hub and splitter requirements in large deployments.
• Vandal-Resistant Construction: IP66 weatherproofing and IK10 impact resistance withstand harsh outdoor environments, rainfall, and mechanical stress.
• Motion Detection Analytics: 4-zone motion detection with configurable sensitivity enables rule-based alerting without requiring external analytics.
• Privacy Masking: 2-zone privacy masking allows masking of sensitive areas such as windows, neighboring properties, or restricted zones.
• Advanced Exposure Control: User-configurable backlight compensation (User BLC, HLC), gain control (Low/Middle/High/Very High), and electronic shutter (1/30 to 1/12,000 sec) optimize image quality in varied lighting.
• Compact Bullet Design: ø70.0 x 246.0 mm (ø2.76 x 9.69 inches) and 670g weight simplify mounting on walls, eaves, and poles without structural reinforcement.

Hanwha HCO-7010RA Integration & Compatibility

The HCO-7010RA integrates with analog DVR and hybrid recorder systems (SBP-302PM, SBO-100B1 compatible devices noted by manufacturer). The dual AHD/CVBS output allows installation flexibility—AHD provides higher bandwidth and longer distance over coaxial, while CVBS ensures backward compatibility with legacy DVRs. Electronic video controls support ATW (auto tracking white balance), AWC (auto white balance control), manual white balance, and preset indoor/outdoor modes for color accuracy. Digital noise reduction (2D DNR) reduces compression artifacts and lowers bandwidth demand. Video rotation capability (H-Rev/V-Rev) accommodates ceiling or inverted mounting without requiring DVR-side configuration.

Hanwha HCO-7010RA Technical Specifications

Imaging Device: 1/3" 4MP CMOS, 2688(H) x 1520(V) effective pixels | Lens: 2.8mm fixed, F1.8 maximum aperture, 0.5m minimum object distance | Field of View: 107.48° horizontal, 59.67° vertical, 122.01° diagonal | Video Resolution: QHD 2560 x 1440 @ 30 fps | Min. Illumination: Color 0.26 lux (F1.8, 1/30 sec), BW 0 lux (IR LED on) | IR Viewable Length: 20m (65.62 ft) | Transmission Distance: 500m maximum coaxial | Video Output: BNC (AHD), additional CVBS (2-pin connector) | Day/Night Mode: Auto ICR | Backlight Compensation: User BLC, HLC, DWDR | Digital Noise Reduction: 2D DNR | Motion Detection: 4 zones | Privacy Masking: 2 zones | Gain Control: Low/Middle/High/Very High | White Balance: ATW, AWC, Manual, Indoor, Outdoor | Electronic Shutter: 1/30 – 1/12,000 sec (NTSC), 1/25 – 1/12,000 sec (PAL) | Video Rotation: H-Rev/V-Rev | Power Supply: 12 VDC | Power Consumption: 5W maximum | Operating Temperature: -30°C to +55°C (-22°F to +131°F) | Operating Humidity: 0–90% RH (non-condensing) | Dimensions: ø70.0 x 246.0 mm (ø2.76 x 9.69 inches) | Weight: 670g (1.48 lb) | Environmental Certification: IP66 (IEC60529), IK10 (IEC62262)
