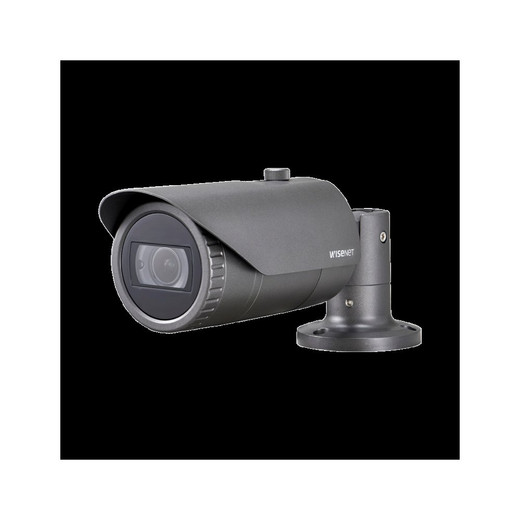

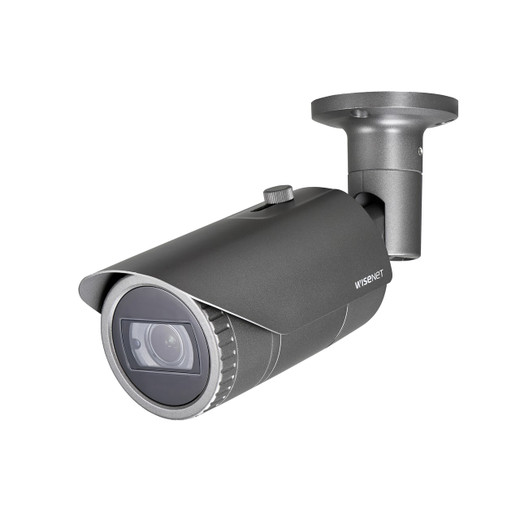

Hanwha HCO-6070R Overview
The Hanwha HCO-6070R is a 2MP full HD analog bullet camera purpose-built for outdoor surveillance in demanding environments. Combining analog HD video transmission with infrared night vision and advanced wide dynamic range processing, this camera delivers reliable 1080p video capture at 30 fps across day and night conditions. The rugged, sealed aluminum housing rated IP66/IK10 withstands harsh weather and physical impact, making it suitable for perimeter security, facility monitoring, and remote site deployments requiring extended transmission distances up to 500 meters.
Hanwha HCO-6070R Key Features
- Full 1080p HD Resolution at 30 fps: Captures 2MP video at full frame rate for sharp, real-time surveillance imagery without latency or frame skipping.
- 3.2–10mm Manual Varifocal Lens (3.1x zoom): Enables field adjustment of focal length to optimize framing for wide-area coverage or narrow corridor monitoring without lens replacement.
- Dual Power Supply (24VAC / 12VDC, max 6W): Accepts both alternating and direct current, accommodating diverse power infrastructure in legacy and modern installations. Low power draw enables operation via extended coaxial runs.
- 120dB True Wide Dynamic Range (WDR): Processes extreme lighting contrasts—direct sunlight, shadows, reflections—in a single frame, preventing washout or underexposure in high-contrast outdoor scenes.
- 98-Foot Infrared Range (30m / 0.11 Lux @ F1.6 color; 0 Lux B/W with IR LED on): Integrated 850nm IR emitters deliver passive illumination for 24/7 surveillance in total darkness without auxiliary lighting infrastructure.
- Day & Night with Infrared Cut Removal (ICR): Automatic switching between color mode (daylight) and monochrome (low light) with motorized IR-cut filter eliminates manual mode transitions and maintains video consistency across transitions.
- IP66 Weather Rating / IK10 Vandal Rating: Sealed against dust and high-pressure water jets; withstands impacts up to 20 joules, protecting against environmental and intentional damage in exposed outdoor locations.
- Analog HD Multi-Protocol Support (AHD / TVI / CVI / CVBS): Compatible with legacy analog systems and modern HD analog standards, enabling seamless integration into existing coaxial surveillance infrastructure without DVR replacement.
- 500-Meter Maximum Transmission Distance: Extends coverage across large properties, parks, and industrial sites using standard RG-59 coaxial cable without signal conditioning or repeaters.
- Electronic Shutter (1/1 to 1/12,000 sec) and Motion Detection: Adaptive exposure control compensates for rapid lighting changes; built-in motion triggers enable event-driven recording and alarm integration.
- White Balance Modes (ATW, AWC, Manual, Indoor, Outdoor): Flexible color temperature adjustment prevents color cast under fluorescent, sodium vapor, or mixed ambient lighting conditions.
- Aluminum Housing with Dark Grey Finish: Durable construction with corrosion-resistant materials; compact form factor (ø78.0 × 259.8 mm; 2.02 lbs) for discrete mounting on poles, eaves, and wall brackets.
Hanwha HCO-6070R Integration & Compatibility
The HCO-6070R transmits video via standard analog protocols (AHD, TVI, CVI, CVBS), enabling integration with hybrid DVRs, traditional analog recorders, and video management systems supporting coaxial input. RS-485 control interface allows pan-tilt-zoom (PTZ) command integration and remote camera parameter adjustment via dedicated control lines. Plug-and-play installation with no IP configuration or network setup required—ideal for remote locations lacking broadband infrastructure or for systems prioritizing analog simplicity and proven reliability. Compatible mounting accessories include the SBP-302PM Pole Mount and SBO-100B1 Backbox for Bullet Cameras, sold separately.
