Hanwha HCD-6080R HD+ 2MP

Hanwha HCD-6080R Overview

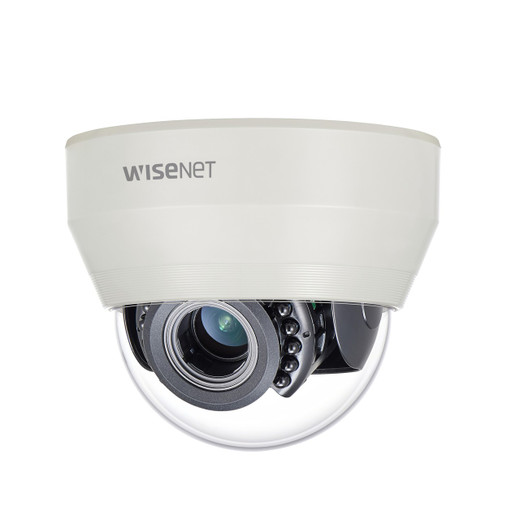

The Hanwha HCD-6080R is a 2MP analog HD infrared indoor dome camera designed for compact surveillance deployments requiring flexible focal length control and robust low-light performance. This Wisenet HD+ model supports AHD, TVI, CVI, and CVBS transmission protocols, making it compatible with existing analog systems while delivering full HD 1080p resolution at 30 fps. The motorized 3.2-10mm varifocal lens (3.1x zoom) combined with 120dB true WDR and integrated IR illumination provides reliable performance across varied lighting conditions typical in retail, office, and facility monitoring environments.

Hanwha HCD-6080R Key Features

• Full HD 1080p resolution at 30 fps delivers sharp detail across the 2MP sensor, supporting real-time monitoring and recorded playback without lag
• 3.2-10mm motorized varifocal lens with 3.1x optical zoom enables field installers to adjust focal length post-deployment without lens replacement, reducing spare parts inventory
• 120dB true WDR (Wide Dynamic Range) with SSNR IV digital noise reduction handles mixed lighting scenarios—bright windows paired with dark interior zones—without image degradation
• Integrated IR illumination with 65-foot (20m) IR viewable length provides switchless day/night operation (ICR) for 24/7 surveillance without auxiliary lighting
• Dual power input (24VAC or 12VDC, 6W max consumption) supports coax-based analog setups and offers flexibility in power distribution architecture
• IP66 and IK10 rated enclosure delivers sealed protection against dust and water spray in indoor environments prone to humidity or washdown
• Multi-protocol analog output (AHD, TVI, CVI, CVBS) ensures backward compatibility with legacy DVR systems and new hybrid recorders
• RS-485 control interface enables remote lens and camera adjustments from compatible control panels without additional wiring
• Transmission distance up to 500m (1640 feet) on coaxial cable supports extended analog runs in campus or large-footprint facility deployments
• Motion detection with 8 privacy masking zones supports alarm triggering and privacy compliance in sensitive areas
• Electronic shutter control (1 to 1/12,000 sec) with adjustable gain (Low, Middle, High, Very High) and white balance modes (ATW, AWC, Manual, Indoor, Outdoor) optimizes image capture across dynamic scene changes

Hanwha HCD-6080R Integration & Compatibility

The HCD-6080R integrates with analog surveillance infrastructure via AHD, TVI, CVI, and CVBS coaxial transmission, supporting maximum cable runs of 500m. RS-485 control enables integration with compatible control panels for remote focus and zoom adjustment. Mounting flexibility is provided through a wide range of Hanwha accessories including wall mounts (SBP-120WM, SBP-300B), pendant mount (SBP-300CM), corner mount base (SBP-300KM1), parapet mount (SBP-300LM), hanging mount (SBP-122HM), and installation box (SBP-300NB). A tinted bubble enclosure (SPB-IND6) is available for discrete operation. The compact form factor (4.72" × 3.88" diameter) and light weight (0.73 lbs) simplify ceiling or wall mounting in confined spaces.
