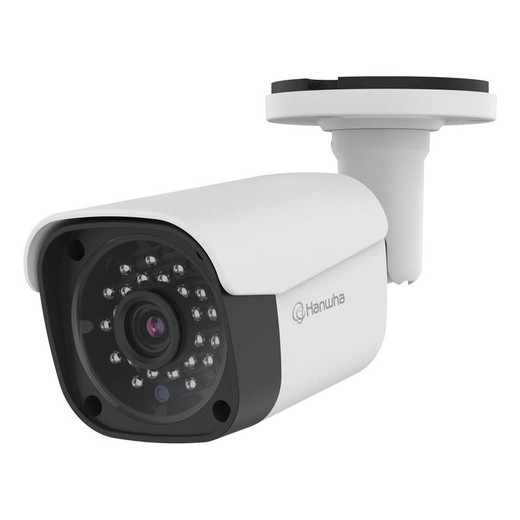

Hanwha ACO-6020R Overview
The Hanwha ACO-6020R is a 2MP analog HD IR bullet camera designed for outdoor surveillance installations requiring robust weatherproofing and extended infrared capability. This Wisenet A Series camera delivers full HD resolution at 30 fps with 25-meter IR coverage, making it ideal for perimeter security, facility monitoring, and general-purpose analog HD deployments in temperature-controlled and outdoor environments.
Hanwha ACO-6020R Key Features
- 2MP Full HD Resolution at 30 FPS: Captures 1920×1080 video at native 30 frames per second, delivering clear detail for identification and incident review.
- Multi-Protocol Compatibility: Supports AHD, TVI, CVI, and CVBS transmission formats over coaxial cable, enabling flexible integration into existing analog HD or hybrid systems without requiring network infrastructure.
- 25-Meter IR Range (82 ft): Integrated IR LED array provides viewable IR distance of 25 meters, enabling 24/7 day/night surveillance in complete darkness without external lighting.
- 3.6mm Fixed Focal Lens with 81° H / 42° V FOV: Wide horizontal field of view optimized for general surveillance coverage; 3.6mm focal length balances proximity coverage and distance detail.
- Digital WDR (Wide Dynamic Range): DWDR processing reduces backlight washout and improves visibility in high-contrast scenes such as doorways, windows, and mixed indoor/outdoor boundaries.
- Compact Bullet Form Factor: Discrete, low-profile 70 mm width and 186 mm depth design minimizes visual impact while providing professional appearance suitable for retail, office, and public-facing installations.
- IP67 & IK10 Rugged Rating: IP67 dust and water ingress protection rated for outdoor mounting; IK10 impact resistance protects against vandalism and mechanical stress in high-risk environments.
- Low-Light Performance: 0.08 lux color sensitivity in daylight mode; 0 lux (B/W IR on) for complete night operation, with selectable gain control (LOW/MIDDLE/HIGH) for dynamic light adjustment.
- Day & Night ICR (Infrared Cut Filter Removal): Automatic infrared cut filter removal transitions to monochrome mode at dusk, maximizing IR LED effectiveness and sensitivity.
- Advanced Image Processing: Dual 2D and 3D digital noise reduction suppresses video grain in low light; electronic shutter (AUTO 1/30–1/50,000 sec) optimizes exposure across varying light conditions.
- 12V DC Simple Power: Single 12VDC input at typical 2.9W, maximum 3.6W consumption; easy integration with standard analog surveillance power distribution and battery backup systems.
- Coaxial Control & Extended Transmission: ACP (AHD Coax Protocol), TCP (TVI Coax Protocol), CCP (CVI Coax Protocol), and Pelco-C support enable camera control via coaxial cable; 300m transmission distance on 5C2V coaxial cable reduces cabling complexity.
Hanwha ACO-6020R Integration & Compatibility
The ACO-6020R integrates into hybrid analog/AHD systems and legacy DVR installations supporting AHD, TVI, CVI, or CVBS input. Coaxial control protocols (ACP, TCP, CCP, Pelco-C) allow two-way camera control from compatible DVR systems without network setup. No IP address, ONVIF, or VMS software is required; deployment is immediate with any analog HD-capable recorder and coaxial infrastructure. Compatible with hybrid recorders that support multiple analog protocols.
Hanwha ACO-6020R Environmental & Mechanical Specifications
- Operating Temperature: -30°C to +55°C (-22°F to +131°F); Storage: -30°C to +60°C (-22°F to +140°F)
- Operating Humidity: 0–90% RH (non-condensing)
- Input Power: 12VDC; Max 3.6W, Typical 2.9W
- Sensor: 1/3" CMOS, 1920×1080 resolution
- Electronic Shutter: AUTO (1/30–1/50,000 sec)
- Video Output: BNC connector; selectable AHD/TVI/CVI/CVBS
- Minimum Object Distance: 2.0 meters (6.56 ft)
- Dimensions: 70 mm W × 69 mm H × 186 mm D (2.76" × 2.72" × 7.32"); Weight: 420g (0.93 lb)
- Housing: Aluminum and plastic construction, white finish
- Max. Aperture: F1.6
- Focus: Manual fixed (no autofocus)
