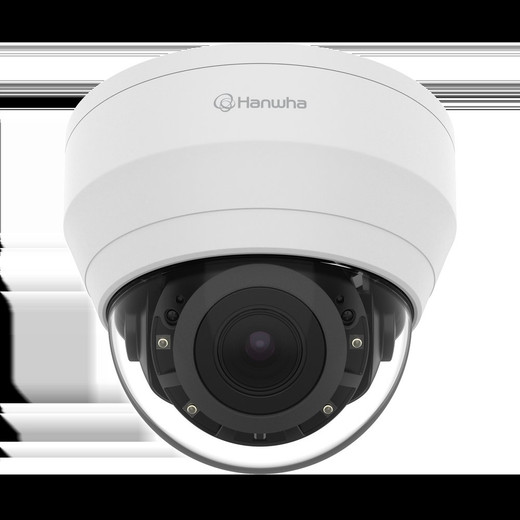

Hanwha QND-8080R/KME Overview
The Hanwha QND-8080R/KME is a 5-megapixel network IR dome camera designed for indoor surveillance applications requiring flexible focal range and low-light performance. This TAA-compliant camera combines a motorized varifocal lens with multi-codec support and advanced video analytics, making it suitable for security integrators and IT managers deploying enterprise-grade surveillance systems.
Hanwha QND-8080R/KME Key Features
- 5 Megapixel Resolution: Captures 2592×1944 pixel video at 30 fps, delivering sufficient detail for identification and forensic review in indoor environments.
- Motorized Varifocal Lens (3.1x): 3.2–10.0mm motorized zoom lens (3.1x optical magnification) enables scene framing flexibility without physical reinstallation, ideal for hallway, corridor, and open-plan deployments.
- 120dB Wide Dynamic Range (WDR): Handles mixed lighting conditions with high-contrast environments, maintaining detail in both bright and dark areas simultaneously.
- Infrared Night Vision: 0.15 lux color sensitivity; 0 lux B/W mode with IR LEDs providing 98 feet (31m) detection range for round-the-clock surveillance without auxiliary lighting.
- Multi-Codec Compression: Supports H.265, H.264, and MJPEG codecs with WiseStream II technology, enabling bandwidth-efficient streaming and flexible recording strategies across mixed VMS platforms.
- Advanced Video Analytics: Integrated tampering detection, motion detection, and defocus detection provide intelligent event triggers and automated alerting for security operations.
- Hallway View Mode: Optimized aspect ratio for landscape surveillance of narrow corridors and hallways, improving field-of-view utilization in constrained spaces.
- PoE Powered (802.3af, Class 3): Single-cable power delivery with typical consumption of 6.60W and maximum 8.90W, reducing installation infrastructure complexity.
- MicroSD/SDHC/SDxC Card Slot: Up to 128GB local edge storage for autonomous operation and backup recording, with AES-256 partition encryption for data protection.
- Secure Architecture: Encrypted firmware, digest authentication with brute-force prevention, IEEE 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2), HTTPS secure communication, and SD card partition encryption.
- CVBS Output: Legacy analog video output for integration with hybrid or analog backup systems.
- Enterprise Environmental Range: Operating temperature -10°C to +55°C; storage -30°C to +60°C, supporting varied indoor climates from climate-controlled offices to non-conditioned spaces.
Hanwha QND-8080R/KME Integration & Compatibility
The QND-8080R/KME supports ONVIF-compliant integration, enabling vendor-neutral VMS deployment across major platforms. IP-based access control, encrypted credential management, and comprehensive access/system/event logging provide audit trails required for compliance environments. Device certificate authentication via Hanwha Vision Root CA ensures secure network communication. Ceiling-mount design suits standard drop-ceiling and drywall installations common in commercial interiors.
Hanwha QND-8080R/KME Detection & Recognition Performance
Per EN62676-4 DORI (Detection, Observation, Recognition, Identification) standards: Detect mode (25 PPM / 8 PPF) achieves 43.3m wide and 185.7m telephoto; Observe mode (63 PPM / 19 PPF) reaches 17.3m wide and 74.3m telephoto; Recognize mode (125 PPM / 38 PPF) spans 8.7m wide and 37.1m telephoto, providing predictable performance benchmarks for deployment planning.
