Hanwha XND-6083RV/KEX TAA Compliant

Hanwha XND-6083RV/KEX Overview

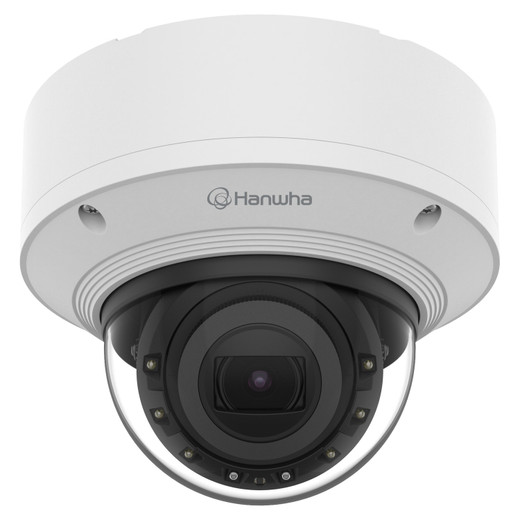

The Hanwha XND-6083RV/KEX is a 2MP AI-powered IR indoor vandal dome camera engineered for security integrators and IT managers requiring TAA-compliant surveillance with advanced analytics and robust mechanical protection. Built on the WN7 platform with X-Plus series intelligence, this camera delivers high-resolution capture at up to 120 fps with motorized 4.3x varifocal zoom, 50-meter infrared viewable range, and comprehensive AI-driven threat detection across person, face, vehicle, and license plate recognition.

Hanwha XND-6083RV/KEX Key Features

• 2MP Resolution at 120 FPS: Captures full 2MP video at maximum 120 fps with H.265, H.264, and MJPEG codec support, enabling high-frame-rate recording and real-time streaming for critical surveillance scenarios.
• 4.3x Motorized Varifocal Lens (2.8–12mm): Delivers flexible focal range from 119.5° to 27.9° field of view, allowing integrators to adjust zoom remotely without lens replacement; precise motor control supports dynamic scene adaptation during installation and operation.
• 50-Meter IR Illumination with WiseIR: Extends viewable infrared range to 164 feet, enabling reliable day/night surveillance in low-light and no-light conditions with 0 lux performance when IR LED is activated; color mode operates down to 0.01 lux at F1.4.
• Extreme Wide Dynamic Range (150dB): Handles challenging lighting environments with exceptional contrast recovery, eliminating washout and loss of detail in scenes with simultaneous bright and dark zones typical in retail, industrial, and mixed-lighting deployments.
• AI-Powered Analytics Engine: Integrated object detection identifies persons, faces, vehicles, and license plates; intelligent video analytics (IVA) module supports virtual line crossing, area intrusion, loitering detection, directional tracking, and enter/exit events—all processed on-device without cloud dependency.
• Comprehensive Event Detection: Defocus detection, tampering alerts, fog detection, motion detection, audio detection with sound classification, shock detection, and appear/disappear tracking provide layered behavioral and mechanical anomaly monitoring.
• Hard-Coated Dome Bubble with IK10 Vandal Rating: Precision hard-coated optical dome resists scratching and UV degradation; IK10 impact rating withstands 20-joule strikes, meeting ANSI/IEC 62262 specifications for high-vandalism environments.
• Day/Night ICR with Digital Image Stabilization: Automatic infrared cut-off filter (ICR) switches seamlessly between day and night modes; built-in gyro sensor enables digital image stabilization (DIS) to compensate for subtle camera motion or vibration.
• Dual Micro SD Card Slots (up to 1TB Total): Supports two 512GB microSD cards for local edge recording, offering 1TB onboard storage capacity for autonomous backup and forensic playback independent of network infrastructure.
• PoE+ Power with Redundancy Support: Powers via IEEE 802.3at PoE+ (max 22.5W typical 17.9W) or 12VDC auxiliary input; includes power redundancy failover configuration for uninterrupted operation in mission-critical deployments.
• TAA Compliant with FIPS 140-2 Certification: Meets Trade Agreements Act requirements for U.S. federal procurement; FIPS 140-2 level compliance ensures cryptographic standards for secure authentication and encrypted communication in government and sensitive commercial installations.
• Metal Shielded RJ-45 Network Interface: Hardened Ethernet connector with electromagnetic shielding reduces noise susceptibility and ensures reliable PoE delivery over extended cable runs common in large facility deployments.

Hanwha XND-6083RV/KEX Integration & Compatibility

The XND-6083RV/KEX operates on the WN7 platform and supports ONVIF standard protocols for VMS integration across Milestone, Axis Camera Station, and third-party ONVIF-compliant platforms. Hanwha CloudConnector enables hybrid cloud/edge deployment for flexible archive and remote access. The camera supports standard IP networking via metal-shielded RJ-45 with PoE+ or auxiliary 12VDC power input. Compatible mounting options include single gang boxes, double gang boxes, 4-inch octagon, and standard square conduit holes (M20 / 12.7mm) for ceiling and wall installation in indoor environments. Operating temperature range of -25°C to +50°C (-13°F to +122°F) suits most interior commercial and light industrial deployments.
