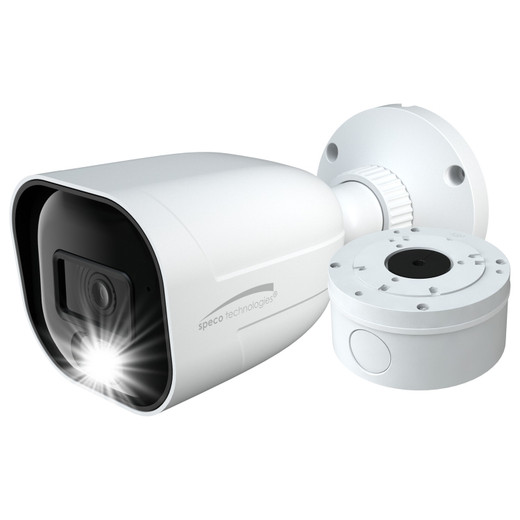

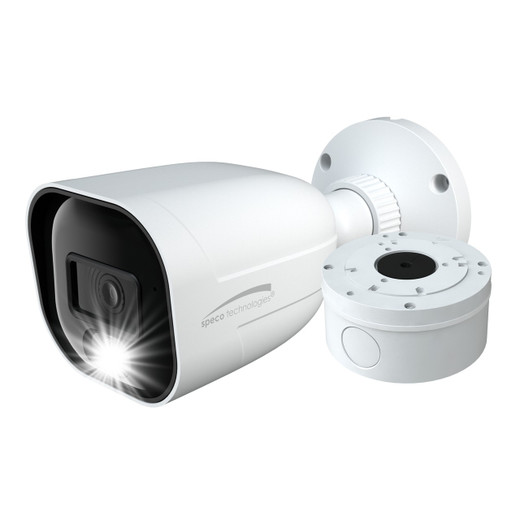

Speco H2AB2 2MP HD-TVI Bullet Camera with Audio

Speco Technologies H2AB2 2MP HD-TVI Bullet Camera with Audio

Overview

The Speco Technologies H2AB2 is a compact 2MP HD-TVI bullet camera designed for outdoor and indoor surveillance deployments requiring reliable video capture in varied lighting conditions. This camera delivers 1920x1080 resolution at 30fps, making it suitable for fixed-view perimeter monitoring, building entrances, and facility surveillance applications. The H2AB2 includes integrated audio via a built-in microphone, enabling audio verification of events without requiring separate external audio devices. Its NDAA-compliant status makes it suitable for federal, state, and institutional procurement environments where supply chain security is mandated.

When this is the correct choice

The H2AB2 is the right choice when you need a weatherproof bullet form factor for outdoor mounting with DC 12V power availability. Select this camera for fixed surveillance zones where 2MP resolution is adequate for identification at typical outdoor distances, and where HD-TVI signal transmission is preferred over IP networking. Its compact bullet design is ideal for discrete installation on building facades, under eaves, or pole-mount installations. The included audio capability supports incident verification without additional microphone procurement. NDAA compliance makes this model mandatory for federal, state, and institutional customers with supply chain security requirements.

When to choose a different model

Avoid the H2AB2 if you require PoE (Power over Ethernet) power delivery, as this camera operates exclusively on DC 12V. Do not specify this model if your installation requires higher resolution (4MP or greater) for facial recognition or license plate capture at distance. Skip this camera if your infrastructure is IP-native without HD-TVI DVR capability. Consider alternatives if you need intelligent video analytics, pan-tilt-zoom functionality, or built-in storage.

Optics and field of view

The H2AB2 features a fixed 2.8mm lens, delivering a standard field of view suitable for general-purpose surveillance of moderate-distance zones (typical coverage 30–50 feet depending on lighting and mounting height). The 2.8mm focal length is industry-standard for bullet cameras where fixed wide-angle coverage is required. No varifocal or motorized focus adjustment is available; this is a fixed-focus lens.

Imaging performance and low light

The 1/2.8" CMOS sensor captures 1920x1080 resolution at 30 frames per second, delivering smooth video suitable for event playback and incident investigation. The H2AB2 supports day/night operation with infrared (IR) capability for low-light and nighttime surveillance. Wide Dynamic Range (WDR) processing helps manage scenes with mixed lighting conditions—bright windows alongside darker interior zones—improving detail visibility in high-contrast environments. The combination of IR night vision and WDR enables 24/7 monitoring across varying outdoor lighting conditions.

Analytics and edge capabilities

The H2AB2 does not include built-in motion detection, object tracking, or deep-learning analytics. This is a traditional surveillance camera designed for reliable video capture. Analytics and event filtering are handled by the connected HD-TVI DVR or NVR platform.

Video encoding and streaming

As an HD-TVI camera, the H2AB2 transmits video over coaxial cable (via an HD-TVI DVR interface) rather than native IP streaming. HD-TVI provides long-distance transmission over standard RG59/RG6 coaxial cable without network infrastructure, making it suitable for retrofit installations and facilities without existing IP camera networks.

Network and security

The H2AB2 is not an IP camera and does not connect directly to networks or the internet. ONVIF Profile I support is available, enabling limited network-based integration through compatible DVR/NVR gateways where the recording device supports ONVIF bridging. All video transmission occurs over HD-TVI coaxial connections, eliminating direct network exposure and reducing cybersecurity surface area.

Environmental and durability ratings

The H2AB2 carries an IP67 weatherproof rating, protecting against complete dust ingress and immersion in water up to 1 meter for 30 minutes. This rating confirms suitability for outdoor installation under eaves, on building facades, and in wet environments (vehicle wash areas, loading docks). Operating temperature range spans -22°F to 122°F, supporting deployment in cold climates (northern US, winter facilities) and warm environments without active cooling. The camera weighs 0.82 lbs, enabling installation on standard wall or pole mounts without reinforcement.

Power and installation notes

The H2AB2 operates on DC 12V power delivered via separate 2-conductor power cables. Power is not integrated with coaxial video transmission; separate DC power infrastructure must be planned. A junction box is included to facilitate weatherproof termination of power and audio connections at the camera mounting point. Installers should budget for dedicated 12V power supply capacity and cable runs. No PoE capability means power distribution must be managed independently from the HD-TVI coaxial system.

What is included

The H2AB2 package includes the bullet camera body, 2.8mm lens, and junction box for weatherproof connection termination. Contact us for complete package details and optional accessories such as power supplies, cable, and mounting brackets.

Ted Perry

The Speco H2AB2 represents a practical choice for integrators managing hybrid surveillance environments or federal/institutional facilities with NDAA procurement mandates. During deployment planning, this camera's HD-TVI architecture and DC 12V power requirement become central considerations—they simplify network security (no direct IP connectivity) but require careful power supply budgeting and DVR/NVR compatibility verification.

Technical Highlights:

• NDAA Compliance: Meets federal and institutional supply chain security requirements without exception.
• IP67 Weatherproofing: Reliable outdoor operation across -22°F to 122°F range; withstands water immersion and dust ingress in loading docks, vehicle wash bays, and coastal installations.
• Day/Night with WDR: IR capability plus Wide Dynamic Range processing delivers consistent video quality across backlit scenes (bright windows, headlight glare) and low-light conditions.
• Integrated Audio: Built-in microphone eliminates separate external audio infrastructure for incident verification.

Deployment Considerations:

• Verify DVR/NVR platform supports HD-TVI input and ONVIF Profile I if network integration is required. HD-TVI cameras do not natively integrate into IP-based VMS platforms.
• Plan 12V power distribution independently of video cable runs. Budget 12V supply capacity and verify cable runs do not exceed distance limits for DC power delivery.
• The included junction box simplifies weatherproof termination—verify mounting surface preparation and grounding practices during installation.

For facilities standardizing on HD-TVI infrastructure or requiring NDAA certification without exception, the H2AB2 delivers dependable 2MP capture with minimal network attack surface. Confirm your recording platform's HD-TVI input availability before committing to this camera family.
