Hanwha WWT-P-5404W Overview

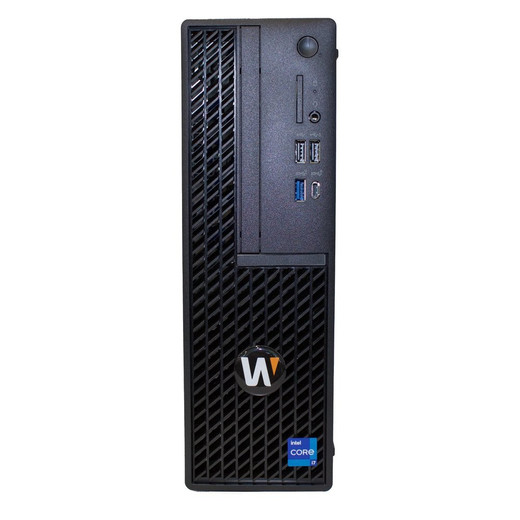

The Hanwha WWT-P-5404W is a small form factor Wisenet WAVE Client Workstation purpose-built for on-site and remote Wisenet WAVE video management system access. This compact desktop solution delivers quad-monitor capability in a 3.65" × 11.53" × 11.42" chassis, making it ideal for security operations centers, control rooms, and distributed surveillance deployments where space is constrained but monitoring scalability is required. The WWT-P-5404W comes pre-loaded and configured with Wisenet WAVE client software, eliminating integration overhead and reducing time to deployment.
Hanwha WWT-P-5404W Key Features
- Quad-Monitor Video Output — Nvidia Quadro A400 GPU with 4× mini DisplayPort outputs supports simultaneous display across four monitors; includes three mini DisplayPort to HDMI adapters plus dedicated VGA, HDMI, and DisplayPort outputs for maximum flexibility in monitor configuration and legacy display integration.
- 14th Generation Intel Core i5 Processor — Latest-generation CPU delivers responsive performance for real-time video stream processing, multi-monitor rendering, and concurrent Wisenet WAVE client operations without compromising system stability.
- 16GB DDR4 Memory — Sufficient RAM for stable operation across multiple video feeds, smooth UI responsiveness, and background system processes on Wisenet WAVE deployments.
- 256GB M.2 SSD OS Drive — Fast internal solid-state storage eliminates mechanical disk latency, ensures rapid system boot, and provides secure OS and application storage with no external drive dependency.
- Windows 11 IoT Enterprise LTSC 2024 or Ubuntu 22.04 LTS Operating System — Choice of Windows 11 IoT Enterprise LTSC 2024 (long-term servicing channel) or Ubuntu 22.04 LTS provides extended support windows, enterprise-grade stability, and compatibility with Wisenet WAVE across multiple OS environments.
- Single Gigabit Ethernet Interface — 1× 1GbE RJ-45 network connection supports reliable connection to Wisenet WAVE video management servers and recorder systems with standard datacenter and LAN infrastructure.
- Comprehensive USB Connectivity — Rear-mounted 2× USB 3.2 Gen 1 and 2× USB 2.0 ports; front-panel 1× USB 3.2 Gen 1, 1× USB 3.2 Gen 1 Type-C, and 2× USB 2.0 ports enable flexible peripheral attachment including external storage, input devices, and third-party hardware integration.
- Universal 3.5mm Audio Port — Onboard audio connectivity for intercom, audio monitoring, or speaker integration within surveillance workflow.
- 180W 80 Plus Bronze Power Supply — Efficient power delivery with industry certification; maximum power consumption of 180W supports extended operation with minimal heat generation, reducing cooling requirements in enclosed spaces.
- Compact Small Form Factor Chassis — Measuring 11.38 lbs (5.16 kg) in weight with compact 92.6mm × 292.8mm × 290mm dimensions, the WWT-P-5404W fits into space-constrained control room racks, wall-mounted installations, and mobile command deployments without sacrificing I/O density or performance.
- Included Keyboard and Mouse — Eliminates accessory procurement overhead and ensures immediate operability upon deployment.
- 5-Year On-Site Next Business Day Warranty with Keep Your Hard Drive — Enterprise-class warranty with rapid response ensures minimal downtime and eliminates costly data recovery procedures.
Hanwha WWT-P-5404W Operating Environment & Certifications
The WWT-P-5404W operates reliably across standard commercial and light industrial environments with operating temperature range of 50°F to 95°F (10°C to 35°C), storage temperature tolerance from -40°F to 149°F (-40°C to 65°C), and operating humidity from 20% to 80% relative humidity (non-condensing). The system carries UL, cUL, CB, and FCC certifications, meeting North American and international electrical safety and electromagnetic compatibility standards for professional deployment. 80 Plus Bronze power supply certification confirms energy efficiency compliance.
Hanwha WWT-P-5404W Package Contents
- WWT-P-5404W WAVE Client Workstation
- USB Keyboard
- USB Mouse
- 3× Mini DisplayPort to HDMI Adapters
