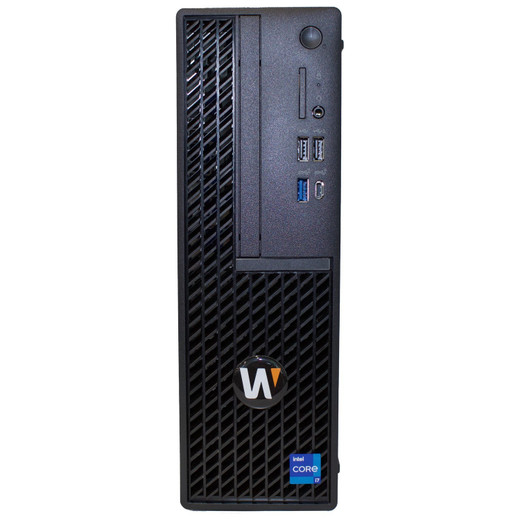

Hanwha WWT-P-5404W1-1TB Small form factor WAVE Client Workstation

Hanwha WWT-P-5404W1 Overview

The Hanwha WWT-P-5404W1 is a small form factor Wisenet WAVE client workstation purpose-built for dedicated video surveillance monitoring and management in security operations centers, dispatch facilities, and control room deployments. This compact system integrates 14th generation Intel processing, dedicated graphics acceleration, and quad-monitor display capability—delivering the computational power and display flexibility required for multi-stream video analysis without consuming excessive rack or desk space. The WWT-P-5404W1 comes with Wisenet WAVE pre-installed and fully configured, enabling rapid deployment for organizations standardized on Hanwha's IP video management ecosystem.

Hanwha WWT-P-5404W1 Key Features

• 14th Generation Intel Core i5 Processor: Delivers responsive performance for real-time video decoding, analytics processing, and multi-tasking across surveillance applications without bottlenecks typical of entry-level workstations.
• 16GB DDR4 Memory: Supports simultaneous management of multiple high-resolution video streams and concurrent Wisenet WAVE client operations with stable performance under sustained monitoring workloads.
• Nvidia Quadro T1000 GPU with 4 Mini DisplayPort Outputs: Dedicated graphics acceleration enables hardware-accelerated H.265 and H.264 video decoding, reducing CPU load while four independent mini DisplayPort connections support full-resolution output to four separate monitors for comprehensive visual coverage.
• 256GB SSD OS Drive: Fast NVMe-class storage for Windows 10 IoT Enterprise LTSC boot and application responsiveness, isolating the operating system from long-term video storage I/O patterns.
• 1TB SATA Hard Drive: Dedicated 3.5-inch SATA storage for local video recording, event archives, and temporary event buffering, maintaining separation from system-critical OS operations.
• Windows 10 IoT Enterprise LTSC Operating System: Long-term servicing channel (LTSC) build ensures predictable patch cycles, extended support lifecycle (10 years), and minimal forced updates—critical for security operations requiring stability and change control in production surveillance environments.
• Single 1GbE Network Interface: Standard Gigabit Ethernet connectivity for camera streams and management traffic; suitable for installations with moderate bandwidth requirements or where additional network adapters can be added via expansion slots.
• Wisenet WAVE Pre-Installed: Ships with Hanwha's unified IP video management platform configured and ready for immediate deployment, eliminating software licensing delays and configuration complexity.
• Small Form Factor Design: Compact dimensions (1.4" W × 7.0" D × 7.2" H) and light weight (3.04 lbs) permit flexible mounting behind monitors, in constrained server racks, or wall-mounted positioning using optional VESA adapters, preserving valuable floor and desk space in tight control room environments.
• USB 3.1 and USB 2.0 Ports: Rear and front USB connectivity supports external storage, input devices, and peripherals typical in SOC deployments, with USB 3.1 Gen 1 speeds for rapid data transfer when required.
• Audio Support: Dual 3.5mm audio input/output headset jacks enable two-way voice communication and audio event monitoring in emergency response and critical operations scenarios.

Hanwha WWT-P-5404W1 Integration & Compatibility

The WWT-P-5404W1 is optimized for deployment within Hanwha Wisenet WAVE environments, where it functions as a dedicated client workstation within the unified video management platform. Pre-loaded with Wisenet WAVE Professional licenses (4 concurrent streams supported as standard), the system integrates seamlessly into existing WAVE Recording Server and multi-site surveillance architectures. The single 1GbE network interface connects to standard Ethernet infrastructure; installations requiring redundancy or higher aggregated bandwidth should evaluate network segmentation or additional NIC expansion. Windows 10 IoT Enterprise LTSC provides ONVIF-compatible integration points for third-party VMS systems if required, though primary operation assumes native Wisenet WAVE management. The Nvidia Quadro T1000 GPU driver support ensures hardware codec acceleration compatibility with H.264 and H.265 streams common across IP camera deployments.

Hanwha WWT-P-5404W1 Package Contents

• WWT-P-5404W1 Client Workstation unit
• Power cable
• Keyboard and mouse
