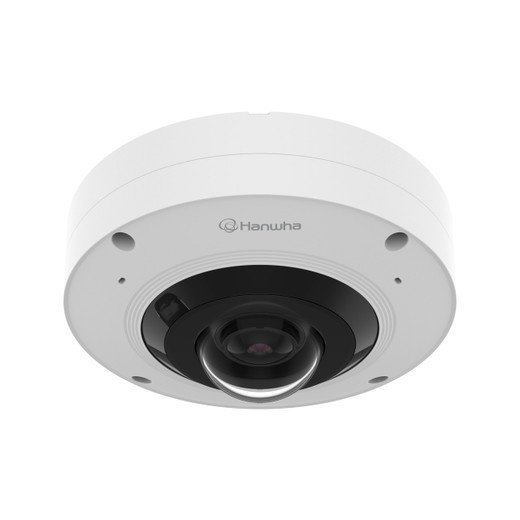

Hanwha XNF-A8014RV Overview
The Hanwha XNF-A8014RV is an outdoor AI-enabled infrared fisheye dome camera engineered for wide-area surveillance in demanding environmental conditions. Featuring a 1.76mm stereographic fisheye lens with 185° horizontal and vertical coverage, this camera delivers 2048x2048 resolution at 30 fps for comprehensive perimeter monitoring, parking lots, courtyards, and open outdoor spaces. Built to IP66/IK10/NEMA4X standards with operating temperature range of -40°C to +60°C, the XNF-A8014RV combines extreme durability with AI-driven video analytics and integrated IR illumination for 24/7 surveillance.
Hanwha XNF-A8014RV Key Features
- 2048x2048 Resolution at 30 FPS: Delivers 4.2 megapixel imaging at 30 frames per second, supporting multiple simultaneous streams with H.265, H.264, and MJPEG codecs for flexible storage and bandwidth optimization.
- Ultra-Wide 185° Fisheye Coverage: Stereographic fisheye lens with 1.76mm focal length provides 185° horizontal and 185° vertical field of view, enabling single-camera monitoring of expansive outdoor areas and reducing deployment costs.
- Infrared Night Vision: Integrated IR illumination enables full surveillance capability in complete darkness, supporting round-the-clock monitoring without reliance on external lighting.
- AI-Powered Analytics Engine: WiseStreamIII and WiseNR technologies leverage AI for intelligent video compression, noise reduction, and advanced event detection including motion detection, object detection, line crossing, area monitoring, slip and fall detection, and sound classification.
- Object Classification and Tracking: AI engine classifies detected objects as Person, Face, Vehicle, or License Plate with extracted attributes including person gender, clothing color, bags, face age/gender/mask/glasses recognition, and vehicle type and color identification for investigative intelligence.
- Business Intelligence Analytics: Integrated AI-based analytics provide people counting, vehicle counting, crowd analysis, queue management, and real-time heatmapping for operational insights beyond security.
- Extreme Wide Dynamic Range (120dB): extremeWDR technology maintains detail in scenes with extreme lighting contrasts, critical for outdoor deployments with simultaneous bright and shadowed areas.
- IP66 Outdoor Rated, IK10 Vandal-Resistant: Hard-coated dome cover and IP66/IK10 rating ensure protection against dust, water jets, and impacts; NEMA4X rating adds additional corrosion resistance for coastal and harsh environments.
- Secure Element with FIPS 140-3 Level 3: Built-in cryptographic security with FIPS 140-3 Level 3 certification protects video streams and authentication credentials, meeting federal cybersecurity requirements.
- PoE+ Powered with Wise Power: Operates on PoE+ (802.3at) power delivery through Hanwha Wise Power technology, eliminating need for separate power infrastructure at deployment sites.
- On-Camera microSD Recording: Built-in microSD card slot supports up to 1TB local storage for continuous backup and offline archive, independent of network video recorder availability.
- Digital Rotation and Privacy Masking: Dynamic privacy mask functionality combined with digital rotation enables rapid scene reconfiguration for sensitive areas without physical camera adjustment.
Hanwha XNF-A8014RV Integration and Compatibility
The XNF-A8014RV operates as a network camera compliant with standard surveillance system architectures. Integration details including ONVIF profile support, VMS platform compatibility, SDK/API availability, and firmware handover capabilities are standard features for Hanwha network cameras but are not detailed in available source documentation. Consult Hanwha technical support or your integrator for specific platform compatibility and API endpoint specifications.
