Hanwha PNV-A9082RZ/KDO Powered by WN9

Hanwha PNV-A9082RZ/KDO Overview

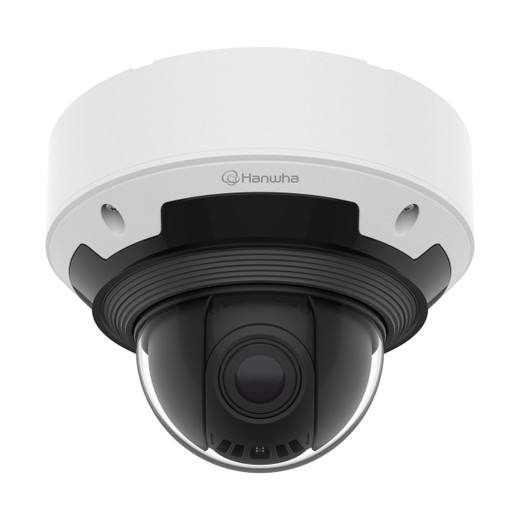

The Hanwha PNV-A9082RZ/KDO is an 8MP network AI outdoor vandal dome camera engineered for demanding surveillance deployments requiring both high resolution and advanced video intelligence. Built on the Hanwha WN9 platform, this motorized varifocal dome combines 4K video capture with embedded AI analytics, IR night vision, and extreme weatherproofing—making it ideal for perimeter security, traffic monitoring, and facility protection in harsh outdoor environments.

Hanwha PNV-A9082RZ/KDO Key Features

• 8MP 4K Video at 30 FPS — Captures 3840×2160 resolution video at 30 frames per second, delivering forensic-quality detail across wide and telephoto zoom ranges. Supports H.265, H.264, and MJPEG compression codecs for efficient bandwidth and storage management.
• Motorized Varifocal Lens with Remote PTRZ Control — 5.9–13.3mm (2.25×) motorized zoom enables remote focus and lens adjustment without physical access. Horizontal field of view spans 109° (wide) to 49° (telephoto), simplifying deployment across variable scene depths.
• Advanced Night Vision: 50m IR with 0 Lux B/W Capability — High-intensity IR LEDs deliver 50-meter (164-foot) viewable range in total darkness. Color sensitivity reaches 0.03 lux at F1.5; infrared mode achieves 0 lux (IR on), enabling 24/7 surveillance without light dependency.
• Extreme WDR (120 dB Dynamic Range) — extremeWDR technology preserves detail in high-contrast scenes with direct sunlight and shadows simultaneously, critical for parking areas, entryways, and mixed-lighting outdoor locations.
• AI-Based WiseStream Compression with Noise Reduction — WiseStream applies machine learning to optimize bitrate dynamically; WiseNR AI noise reduction cleanses low-light video automatically, reducing bandwidth without sacrificing object detection accuracy.
• Comprehensive AI Analytics Engine — Motion detection, object detection (person/face/vehicle/license plate), line crossing detection, intrusion area monitoring, slip-and-fall detection, and sound classification. Attribute extraction includes person gender and clothing color, face age/gender/mask/glasses detection, and vehicle type/color classification.
• Business Intelligence Analytics — People counting, vehicle counting, crowd counting, queue management, and heatmap generation for operational insights and capacity planning.
• Vandal-Resistant Design: IP66/IP67, IK10, NEMA 4X — Hard-coated polycarbonate dome, sealed connectors, and metal-shielded RJ-45 network port. Rated IP67 (complete immersion protection) and IK10 (20-joule impact resistance). NEMA 4X (stainless steel) and NEMA-TS 2 compliance ensure durability in coastal, industrial, and high-corrosion environments.
• Extreme Temperature Operation: -50°C to +55°C (-58°F to +131°F) — Engineered for arctic, tropical, and desert deployments with thermal shock resistance. Storage range extends to -50°C to +60°C.
• PoE+ Power: 11W Typical, 17.5W Maximum — Single-cable power and network delivery via IEEE 802.3at PoE+ (Class 4), simplifying installation and reducing infrastructure costs. Wisepower monitoring enables remote power consumption tracking.
• Gyro-Stabilized Video with DIS — Built-in gyroscope sensor enables digital image stabilization (DIS), reducing vibration artifacts in wind-exposed or vehicle-mounted scenarios.
• Secure Element & Encryption: FIPS 140-3 Level 3 — Hardware-based cryptographic module protects authentication, encryption keys, and secure boot. Enterprise-grade cybersecurity for regulated environments (financial, government, healthcare).
• Dual MicroSD Card Slots: 2TB Total Storage — Built-in local backup via two 1TB microSD card slots, enabling edge recording independent of network connectivity or NVR availability.
• Day/Night Imaging with ICR — Intelligent color/IR switching (ICR) automatically transitions between color mode in adequate light and monochrome IR mode in darkness, preserving frame rate and detail across the full surveillance day.
• Additional Event Detection — Defocus detection, tampering alerts, fog detection, audio detection, and shock detection enable proactive alarm generation and incident response.

Hanwha PNV-A9082RZ/KDO Integration & Compatibility

The PNV-A9082RZ/KDO integrates with ONVIF-compliant video management systems, network video recorders (NVRs), and third-party access control platforms via standard IP protocols. WN9 platform firmware supports CloudConnector for remote management and cloud archival integration. Compatible mounting includes single-gang, double-gang, 4-inch octagonal, and square electrical boxes, as well as 19.1mm (3/4-inch) conduit and M25 connections. Digital privacy masking and multi-region masking prevent recording of sensitive areas, meeting privacy regulations without hardware redesign.
