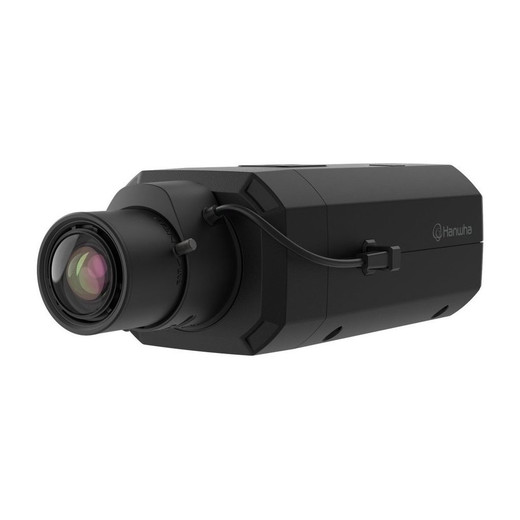

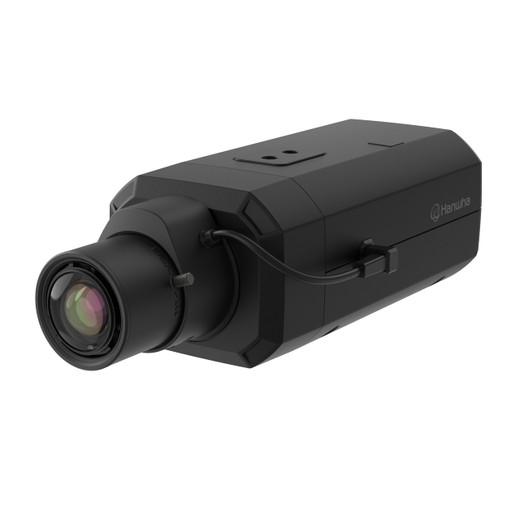

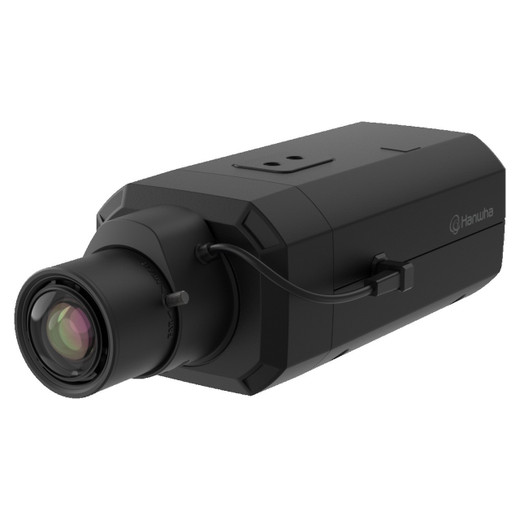

Hanwha XNB-A9004 Powered by WN9

Hanwha XNB-A9004 Overview

The Hanwha XNB-A9004 is an 8MP box camera powered by the WN9 platform, purpose-built for security integrators and IT managers who require embedded AI analytics without external servers. This camera delivers native object classification (person, face, vehicle, license plate) and intelligent video analysis in a compact, fielddeployable form factor.

XNB-A9004 Video Performance & Image Quality

• 8MP resolution at 30 FPS (H.265/H.264); 5 FPS maximum at 8MP MJPEG
• Extreme WDR (120dB) for high-contrast indoor and backlit scenes
• Digital image stabilization with built-in gyro sensor and Handover support for smooth video in motion
• Day & Night (ICR) operation with selectable microphone input (mic in, line in, built-in)
• AI-based WiseNR II noise reduction and WiseStream bandwidth optimization
• Dynamic privacy masking for GDPR and privacy-sensitive deployments
• H.265, H.264, and MJPEG codec support for flexible integration

XNB-A9004 AI Analytics & Intelligence

• Dual NPU AI engine with object detection and classification: person, face, vehicle, license plate
• IVA events: motion detection, object detection, line crossing, area intrusion, slip and fall, sound classification
• Object attributes: person (gender, top/bottom clothing color, bag); face (age, gender, mask, glasses); vehicle (type, color)
• Analytics events: defocus, tampering, fog, audio, and shock detection
• Business intelligence: people/vehicle/crowd counting, queue management, heatmap generation
• BestShot support for forensic frame extraction

XNB-A9004 Network, Power & Security

• PoE (802.3af) and 12VDC power options with metal-shielded RJ-45 connector
• PoE max 10.7W typical, 9.5W; 12VDC max 9.9W typical 8.7W
• Built-in dual microSD card slots supporting up to 1TB each (2TB total local storage)
• Secure element with FIPS 140-3 Level 3 certification
• OnCloud compatible for cloud integration
• Operating temperature: -10°C to +55°C (14°F to 131°F)

XNB-A9004 Physical Specifications

• Dimensions: 81(W) x 67(H) x 165(D) mm (3.19 x 2.64 x 6.48 inches)
• Weight: 851g (1.88 lbs)
• Material: aluminum construction, black (RAL 9005)
