Hanwha TNP-A7430RW Powered by WN9

Hanwha TNP-A7430RW Overview

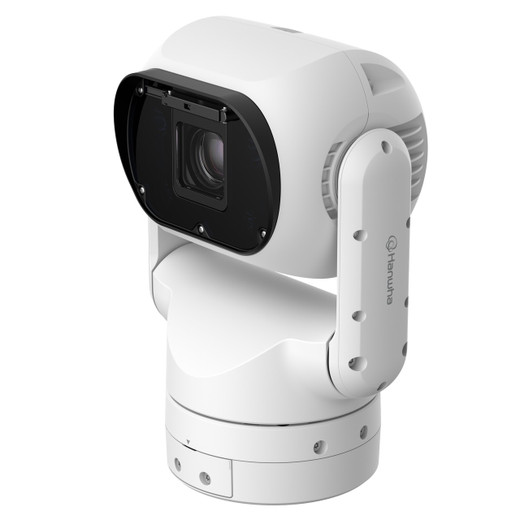

The Hanwha TNP-A7430RW is a 4MP ruggedized PTZ (Pan-Tilt-Zoom) positioning camera powered by the WN9 AI engine, engineered for high-security outdoor deployments in extreme environments. With a 43x autofocus lens (6.1mm–262.4mm), adaptive IR out to 500 meters, and 120dB extreme wide dynamic range, this camera delivers 4MP video at 30 fps in daylight, fog, and complete darkness. Built to military and industrial standards (MIL-STD-810H, NEMA 4X, NEMA-TS 2), it withstands sustained winds to 160 mph, operating temperatures from –50°C to +60°C, and delivers IP66/IP68 and IK10 protection against water, dust, and vandalism. The integrated AI engine enables real-time object tracking, advanced analytics, and dynamic privacy masking without external compute.

Hanwha TNP-A7430RW Key Features

• 4MP Resolution @ 30 FPS with Triple Codec Support: Captures 4MP video at 30 frames per second with H.265, H.264, and MJPEG codec options, allowing flexible compression strategies for bandwidth and archival optimization.
• 43x Autofocus Lens (6.1mm–262.4mm): Extensive focal range enables wide-area monitoring and tight facial/license plate identification from a single fixed mounting location, with 6-axis positioning control (pan, tilt, zoom, focus, iris, rotate).
• Adaptive Wise IR with 500m Range: Hanwha's adaptive infrared system extends night vision to 500 meters, with intelligent adjustment to ambient light and reflective surfaces to prevent blooming and over-saturation in mixed illumination.
• ExtremeWDR 120dB Dynamic Range: Captures detail in scenes combining bright sunlight and deep shadow simultaneously—critical for monitoring building entrances, parking structures, and mixed indoor/outdoor zones without switching to manual exposure modes.
• AI-Powered Object Detection & Auto-Tracking: WN9 dual NPU engine enables real-time tracking of persons and vehicles with target lock, plus IVA events including motion detection, line crossing (with direction), loitering, intrusion, slip-and-fall, and entry/exit counting—all processed on-device without cloud dependency.
• Classified Object Attributes & Analytics: AI extracts person gender and clothing color, face age/gender/mask/glasses detection, vehicle type and color, and license plate recognition; tampering, shock, and audio detection events round out forensic capabilities for incident reconstruction.
• Optical Image Stabilization & BestShot: OIS reduces jitter from wind and vibration common in outdoor PTZ installations; BestShot automatically captures and stores optimized still images during video recording for forensic clarity.
• WiseStream II & WiseNR with AI Noise Reduction: WiseStream II bandwidth optimization combined with WN9-powered noise reduction (WiseNR II) lowers storage and network load by 30–50% versus standard H.264 while maintaining analytic accuracy.
• FIPS 140-3 Level 3 Secure Element & Encrypted Storage: Onboard secure element meets federal cryptographic requirements; supports encrypted microSD card edge recording up to 1TB with tamper alerts and audit trails for compliance-sensitive deployments.
• Military & Industrial Durability: IP66/IP68 rating (submersion-proof), IK10 impact rating (except window), MIL-STD-810H vibration/shock certification, ASTM B117 salt-spray resistance, and sustained 257 km/h (160 mph) wind load qualify this camera for coastal, industrial, and high-security outdoor perimeters.
• HPoE Power with Redundancy: IEEE 802.3bt PoE++ (Class 8) delivers up to 71W maximum, with typical draw of 33.2W; HPoE injector included; WisePower modes enable eco operation and remote power monitoring for extended-range deployments.
• Dynamic Privacy Mask & Day/Night ICR: Configurable privacy regions block sensitive areas in real-time; day/night infrared cut-off (ICR) filter switches automatically for true color day imaging and monochrome night sensitivity without manual intervention.

Hanwha TNP-A7430RW Integration & Compatibility

The TNP-A7430RW integrates with ONVIF-compliant video management systems via standard RTSP/ONVIF Profile S/T feeds. HPoE power and metal shielded RJ-45 connectors support long-run outdoor installations; Handover functionality enables seamless camera-to-camera tracking in multi-camera deployments. Edge analytics run on-device via the WN9 dual NPU, reducing VMS server load and enabling real-time IVA event triggers without external GPU compute. Secure element and FIPS 140-3 compliance support integration with enterprise identity and access management systems. Built-in microSD slot accepts Hanwha Vision-certified cards for isolated edge recording, independently recoverable for forensic analysis or audit compliance.

Hanwha TNP-A7430RW Package Contents

• TNP-A7430RW Ruggedized PTZ Positioning Camera
• HPoE Injector (IEEE 802.3bt PoE++ Class 8)
• Metal Shielded RJ-45 Cable Assembly
• Installation Documentation
