Hanwha TNP-A6550RW Powered by WN9

Hanwha TNP-A6550RW Overview

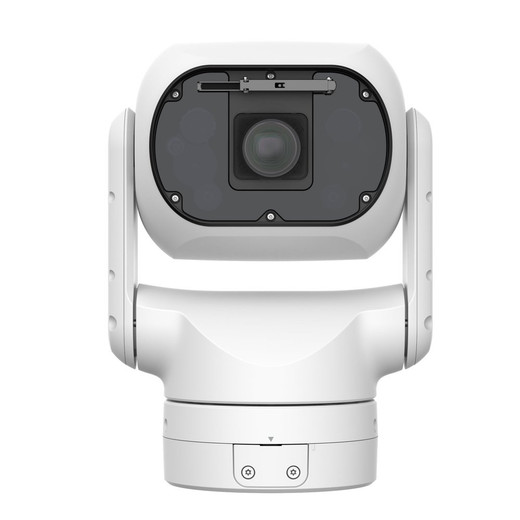

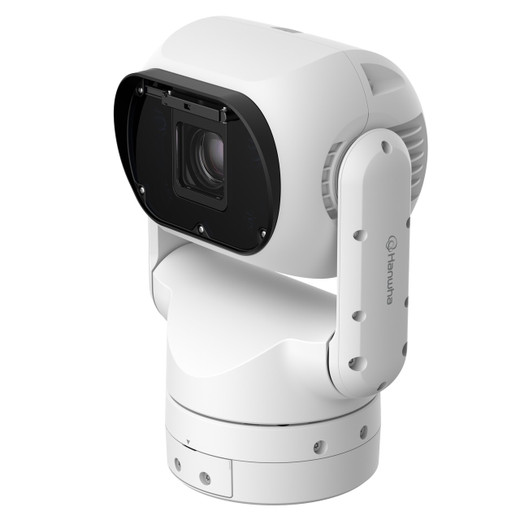

The Hanwha TNP-A6550RW is a 2MP AI-powered ruggedized PTZ positioning camera engineered for deployment in extreme outdoor environments. Powered by the WN9 AI engine, this camera delivers full day/night surveillance with adaptive IR, advanced analytics, and military-grade durability across volatile operating conditions. The TNP-A6550RW is purpose-built for security integrators deploying persistent surveillance in sites exposed to shock, vibration, high winds, and temperature extremes without mechanical degradation.

Hanwha TNP-A6550RW Key Features

• 55x Autofocus Zoom Lens: 4.75mm to 261.4mm focal range provides long-range subject identification and flexible framing from wide-angle to telephoto coverage in a single unit.
• 2MP Resolution at 30 FPS: Delivers sufficient detail for object classification and identification across extended monitoring ranges while maintaining smooth motion tracking and playback.
• Adaptive Wise IR with 600m Range: Advanced infrared illumination extends day/night operation to 1,968.5 feet, with adaptive intensity management to prevent washout and maintain image contrast in total darkness and fog.
• ExtremeWDR 120dB Dynamic Range: Captures detail in scenes with extreme lighting contrasts—bright outdoor areas and deep shadows simultaneously—without loss of forensic clarity.
• AI-Powered Video Analytics: WN9 engine delivers object detection and classification (Person, Face, Vehicle, License Plate) with attribute extraction including gender, clothing color, vehicle type, and facial characteristics (age, mask, glasses). Includes motion detection, line crossing with direction reporting, loitering/intrusion detection, and slip-and-fall events for rapid incident response.
• Auto-Tracking with Target Lock: AI-based continuous tracking of persons and vehicles with intelligent handover between PTZ zones, enabling unmanned persistent monitoring of moving subjects across scenes.
• WiseStream and WiseNRⅡ Compression: H.265, H.264, and MJPEG codec support with AI-enabled compression optimization and noise reduction (WiseNRⅡ using AI engine) to minimize storage bandwidth while preserving investigative detail.
• Military-Grade Weatherproofing: IP66/IP68 submersion rating, IK10 impact resistance (except window), NEMA 4X corrosion resistance, NEMA-TS 2 compliance, MIL-STD-810H shock/vibration certification, and ASTM B117 salt-fog testing ensure operation in marine, industrial, and arctic environments.
• Extreme Environmental Tolerance: Operating temperature range -50°C to +60°C (-58°F to +140°F) and sustained wind load resistance to 257 km/h (160 mph) with 0.095 m² effective projected area maintains functionality in hurricanes, blizzards, and temperature-cycling climates.
• PoE++ Powered (802.3bt Type 4, Class 8): Draws maximum 71W typical 28.3W via single Ethernet conductor with included injector; eliminates separate power infrastructure in remote locations and enables Eco Mode power management.
• Gyro-Stabilized Video: Built-in gyroscope enables Digital Image Stabilization (DIS) to eliminate jitter from wind vibration and platform movement, preserving video sharpness during PTZ repositioning.
• Edge Storage and FIPS 140-3 Security: Built-in microSD slot supports up to 1TB local recording (Hanwha-certified cards recommended); secure element with FIPS 140-3 Level 3 and ETSI EN303645 IoT compliance protects credential and analytics data against physical tampering and network interception.
• Dynamic Privacy Masking: AI-driven privacy zones with real-time object detection prevent recording of sensitive areas while maintaining transparency for audit compliance.
• Advanced Analytics Events: Tampering detection, shock detection, and optional audio analysis (via NW I/O box) provide situational awareness and automatic alerting on equipment interference or abnormal acoustic events.

Hanwha TNP-A6550RW Integration & Compatibility

The TNP-A6550RW supports standard ONVIF protocols for VMS integration and includes metal-shielded RJ-45 connectivity to resist electromagnetic interference in industrial RF-dense environments. Compatible with Milestone, Axis Camera Station, and ONVIF-certified management platforms. Supports both upright normal and inverted (canted) mounting configurations for flexible deployment on poles, walls, and roof-edge arrays. WisePower mode and monitoring allow remote power profiling and Eco Mode scheduling to optimize energy consumption across multi-camera deployments.

Hanwha TNP-A6550RW Package Contents

• TNP-A6550RW Camera Unit
• PoE++ Injector (IEEE 802.3bt Type 4, Class 8)
