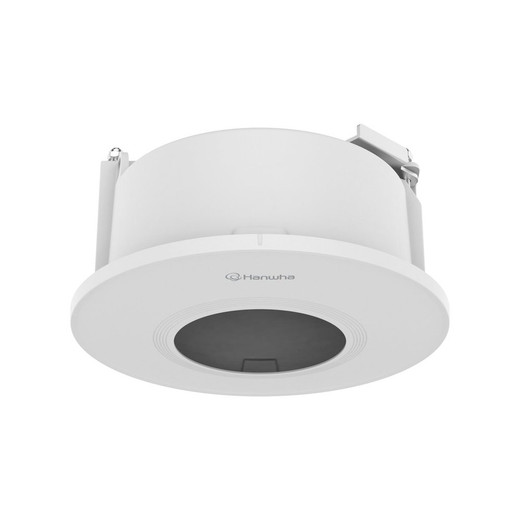

Plenum In-ceiling mount compatible with QNV-C8013R/C8023R?

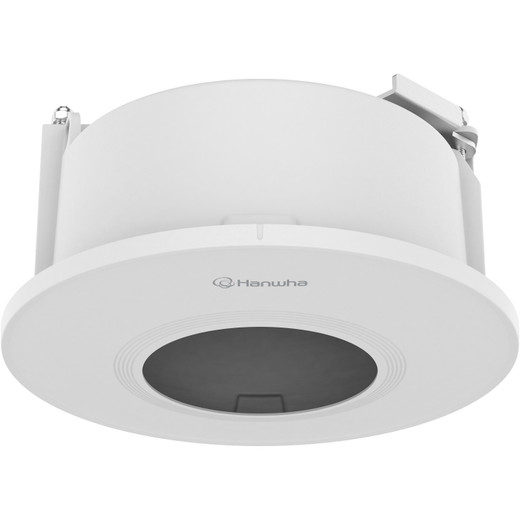

Hanwha SHD-1201FPW Overview

The Hanwha SHD-1201FPW is a plenum-rated flush-mount in-ceiling bracket designed to integrate 5MP outdoor vandal dome cameras into drop-ceiling installations. Compatible with Hanwha QNV-C8013R and QNV-C8023R models, this mount provides secure, code-compliant camera placement in commercial and institutional environments where plenum airspace compliance is required.

SHD-1201FPW Installation and Construction Specifications

• Material: Polycarbonate and aluminum construction in white (RAL 9003)
• Mounting: Flush in-ceiling design for standard drop ceilings
• Tile thickness compatibility: 10–70 mm (0.4–2.8 in.)
• Mount screw size: TR20
• Maximum load capacity: 2 kg (4.41 lb); ceiling board max load 3 kg (6.61 lb)
• Conduit holes: 12.7 mm (1/2" M20) and 19.1 mm (3/4" M25) for cable management
• Dimensions: ø180 × 100.7 mm (ø7.09 × 3.96 in.)
• Weight: 676.4 g (1.49 lb)
• Compatible devices: QNV-C8013R, QNV-C8023R
