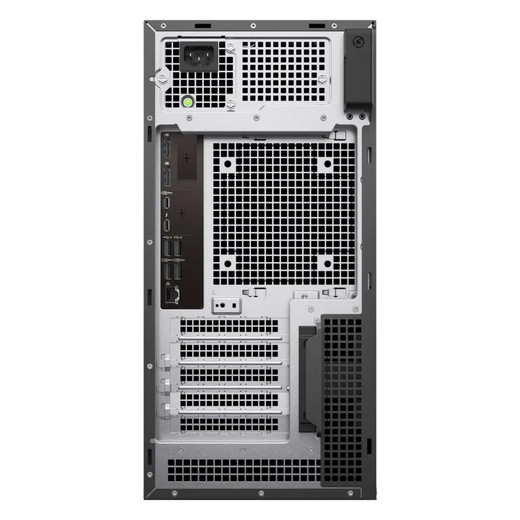

Hanwha WRT-P-5205L-12TB Overview
The Hanwha WRT-P-5205L-12TB is a Linux-based WAVE Network Video Recorder in mini-tower form factor, purpose-built for mid-to-enterprise surveillance deployments. Preloaded with Wisenet WAVE video management system and configured with 4 Professional licenses, this system delivers 470 Mbps recording bandwidth with up to 12TB raw storage capacity, supporting up to 64 channels of IP video from Wisenet and ONVIF-conformant cameras. Designed for integrators and IT managers requiring a robust, software-inclusive recording platform without separate licensing complexity.
Hanwha WRT-P-5205L-12TB Key Features
- Pre-installed Wisenet WAVE VMS: Arrives fully configured with Wisenet WAVE video management software, eliminating setup delays and ensuring immediate deployment readiness with professional-grade tools.
- 12TB Raw Storage with Hot-Swappable Architecture: Three 3.5-inch front-mounted hot-swappable drive bays support up to 12TB raw capacity on this configuration, allowing online drive replacement without system shutdown.
- 470 Mbps Recording Throughput: Supports simultaneous high-bitrate recording from multiple 4K or HD streams at sustained 470 Mbps aggregate bandwidth, verified through Hanwha Vision performance testing.
- 64-Channel IP Camera Support: Accommodates up to 64 IP camera channels, enabling large-scale deployments from single-unit installations to complex multi-building environments with Wisenet or ONVIF-compliant devices.
- Four Wisenet WAVE Professional Licenses Included: Licenses bundled at purchase—no additional software acquisition required; supports Professional-tier functionality for all four concurrent user seats or applications.
- Dual Network Interfaces (1 GbE + 5 GbE): Segmented network architecture with 1x 1GbE and 1x 5GbE RJ45 NICs enables bandwidth separation between management and video ingest, reducing contention and improving throughput reliability.
- Intel Core Ultra 5 Processor with 16GB RAM: Modern processor architecture paired with sufficient memory for real-time video processing, search, and playback across all 64 channels without performance degradation.
- 512GB SSD OS Drive: Dedicated M.2 SSD internal OS drive isolates system software from video storage, ensuring responsive UI and system stability independent of video recording I/O load.
- Ubuntu 22.04 LTS Operating System: Long-term support Linux distribution provides security patching and stability for multi-year deployments in enterprise environments, with minimal licensing overhead.
- Dual DisplayPort Video Outputs with HDMI Adapter: Two DisplayPort connections (with one DisplayPort-to-HDMI adapter included) enable multi-monitor live viewing and playback configurations typical in control rooms and NOCs.
- Comprehensive USB Connectivity: Front and rear USB ports (USB 3.2 Gen1, Gen2, and Type-C options) support external storage, keyboard/mouse extension, and third-party integrations without daisy-chaining.
- 1500W 80 Plus Platinum Power Supply: Efficient single power supply with Platinum certification reduces operational power draw, lowering total cost of ownership in 24/7 surveillance applications.
Hanwha WRT-P-5205L-12TB Integration & Compatibility
Supports Wisenet and ONVIF-conformant IP cameras, ensuring broad interoperability with third-party camera ecosystems. Pre-installed Wisenet WAVE provides native integration with Hanwha camera product lines while ONVIF compliance accommodates multivendor deployments. System runs on Ubuntu 22.04 LTS, qualifying for enterprise IT infrastructure management and security patch distribution workflows standard in managed security service provider (MSSP) and integrator environments.
Hanwha WRT-P-5205L-12TB Package Contents
- WRT-P-5205L-12TB Mini-tower Recording Server
- USB Mouse
- USB Keyboard
- DisplayPort to HDMI Adapter
