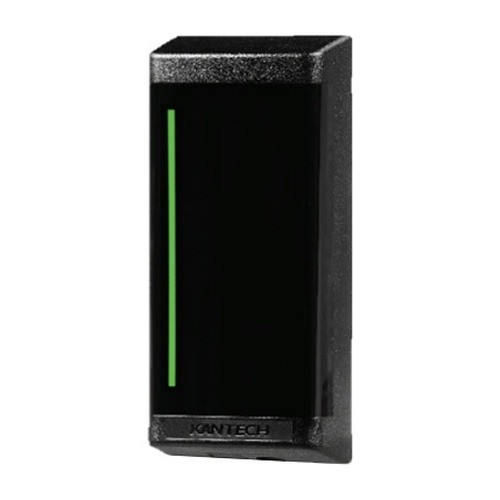

Kantech KT-MUL-MT2 Gen 2 Multi-Technology Mullion Reader

Kantech KT-MUL-MT2 Gen 2 Multi-Technology Mullion Reader

The Kantech KT-MUL-MT2 Gen 2 is a second-generation multi-technology mullion reader engineered for access control installations requiring support across multiple credential formats and frequencies. This wall-mounted reader consolidates both high-frequency and low-frequency credential authentication into a single form factor, reducing installation complexity and hardware footprint in entry control systems.

Overview

The KT-MUL-MT2 delivers dual-frequency credential support with a unified mounting profile optimized for mullion applications. By integrating both 13.56 MHz and 125 kHz reading capability, this reader accommodates MIFARE and HID-based credential ecosystems within a single deployment point. The mullion form factor fits standard glass and structural mullion profiles, making it ideal for commercial building entrances, institutional facilities, and secure perimeter access points where aesthetic integration and mounting simplicity are priorities.

Power delivery via PoE (802.3af) eliminates the need for dedicated power runs, streamlining both installation and long-term operational management. The 850nm infrared low-light support ensures reliable credential reading in varied ambient lighting conditions, extending reader performance into low-light entry scenarios.

Key Features

• Dual-Frequency Technology: 13.56 MHz (MIFARE Plus EV1, ISO/IEC 14443A, ISO/IEC 14443B) and 125 kHz (ioProx, HID) support in one reader
• PoE Power: 802.3af powered—no additional power supply or dedicated electrical runs required
• Mullion Mount Design: Wall-mounted form factor for seamless integration into glass and structural mullion profiles
• IR Low-Light Performance: 850nm infrared for enhanced credential reading in low-ambient conditions
• Gen 2 Architecture: Second-generation design incorporating field-proven refinements and improved credential compatibility
• Consolidated Deployment: Single-unit integration eliminates the need for separate high and low-frequency readers

Technical Highlights

Credential Support: The dual-frequency architecture supports legacy HID and ioProx cards (125 kHz) alongside modern MIFARE and ISO/IEC standards (13.56 MHz), enabling mixed-credential environments without separate readers at each access point.

Power & Installation Efficiency: PoE (802.3af) integration eliminates separate 12V power supplies and associated wiring runs, reducing installation labor and infrastructure costs while simplifying system maintenance.

Low-Light Reliability: The 850nm infrared capability ensures consistent read performance even when ambient lighting is insufficient, particularly valuable in covered mullion entries, transitional spaces, and secure vestibules.

Applications

• Commercial office building main entrances and lobbies
• Institutional facilities (universities, hospitals, government buildings)
• Secure perimeter access with glass or structural mullion profiles
• Multi-credential environments requiring HID and MIFARE support
• Installations prioritizing streamlined wiring and PoE-powered infrastructure

Eden Phillips

The KT-MUL-MT2 Gen 2 addresses a specific but common deployment challenge: supporting multiple credential technologies at a single access point without installing separate readers. The dual-frequency architecture is particularly valuable in organizations managing credential migration (transitioning from legacy HID to modern MIFARE systems) or those operating mixed credential ecosystems across different facility zones.

From an integration perspective, PoE power delivery simplifies both new installations and retrofits by leveraging existing network infrastructure—a significant advantage in retrofitting mullion readers into existing glass facade or structural entry systems where dedicated electrical runs may be difficult or costly.

The Gen 2 refinements reflect mature product architecture, suggesting improved compatibility with a broader range of access control platforms and enhanced field reliability compared to earlier iterations. The 850nm IR low-light support is a practical specification for mullion mounting, where ambient light is often limited by architectural elements (overhangs, covered entry areas) or time-of-day variations.

This reader is best suited for organizations seeking to consolidate credential technology at the hardware level rather than expanding wiring and power infrastructure, and where mullion-profile aesthetics and integration are prerequisites for the access control deployment.
