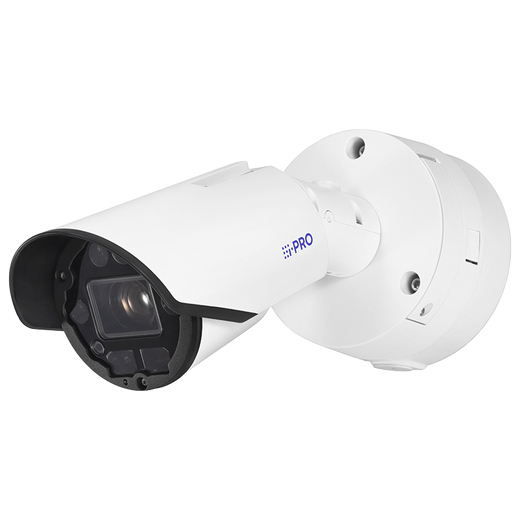

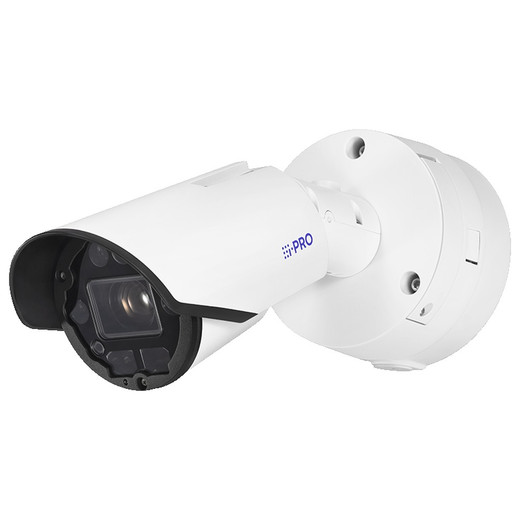

i-PRO WV-X15701-Z3L Overview
The i-PRO WV-X15701-Z3L is a 4K outdoor IR bullet camera engineered for perimeter security, critical infrastructure, and long-range surveillance applications. This motorized zoom camera combines high-resolution imaging with integrated AI analytics and robust weatherproofing for demanding outdoor deployments requiring extended-range monitoring and intelligent event detection.
i-PRO WV-X15701-Z3L Key Features
- 4K Resolution Imaging — Captures video from a 1/2.8" CMOS sensor with 5.57 mm (H) × 3.13 mm (V) scanning area, delivering detailed reconnaissance-grade imagery for identification and verification at distance.
- 30x Motorized Optical Zoom — Varifocal lens spanning 4.5 to 135 mm with f/1.8 aperture enables flexible framing from wide coverage to extreme telephoto without digital degradation; motorized focus and zoom control for remote adjustment and scene adaptation.
- 140 Meter Built-in IR LED — Integrated IR illumination (140 m / 459 ft range) with color minimum illumination of 0.13 lx (30IRE, F1.8, 1/30s, AGC:11) and black-and-white capability down to 0.006 lx (50IRE, F1.8, 16/30s, AGC:11) supports 24/7 operation in complete darkness without auxiliary lighting.
- Up to 9 Edge AI Analytic Apps — Onboard deep learning inference engine executes AI-powered motion detection, scene analysis, and intelligent event filtering directly on the camera, reducing false alarms and network overhead; edge processing eliminates dependency on external analytics servers.
- 132 dB Dynamic Range with Super Dynamic — Maximum dynamic range reaches 132 dB when Super Dynamic is enabled (Level 31), accommodating extreme backlit scenes, reflective surfaces, and mixed daylight/shadow environments; additionally supports adaptive black stretch, back light compensation, high light compensation, and fog compensation for scene-specific optimization.
- IP66, IP67, and IK10 Rated — Dual IP rating certification (IP66 for dust/water jets; IP67 for temporary submersion) combined with IK10 vandalism resistance ensures field durability in wet, corrosive, and high-impact environments; suitable for coastal, industrial, and unmanned outdoor locations.
- FIPS 140-2 Level 3 Compliant Secure Element — Built-in EdgeLock® SE050F NXP® Semiconductors secure element provides cryptographic key storage, firmware integrity verification, and secure boot capabilities; FIPS 140-2 Level 3 certification meets federal and enterprise cybersecurity requirements for sensitive deployments.
- NDAA Compliant — Verified compliance with National Defense Authorization Act supply chain restrictions; approved for US federal, defense, and critical infrastructure projects.
- Adaptive Shutter and Exposure Control — Configurable shutter modes (60/50/30/25 fps) with fixed or variable shutter speeds from 1/4000 s to 16/30 s; Intelligent Auto exposure with selectable white balance (ATW1, ATW2, AWC) and maximum AGC (0-11 levels) ensures optimal signal-to-noise ratio across lighting conditions.
- Advanced Image Enhancement — Fog compensation (0-8 levels), color/B&W ICR (selectable IR-off or IR-on mode), and digital noise reduction refine output in adverse weather; super dynamic range, adaptive black stretch, and backlight/highlight compensation provide frame-by-frame optimization.
- Day/Night Color-to-Monochrome Switching — Automatic or manual ICR (Infrared Cut filter Removal) enables seamless color capture in daylight and monochrome sensitivity in near-total darkness; programmable transition thresholds prevent color washout in twilight conditions.
i-PRO WV-X15701-Z3L Integration & Compatibility
ONVIF compliance enables standardized video stream integration with third-party VMS platforms and network management systems. The camera supports H.265 (HEVC) and H.264 (AVC) compression formats, reducing bandwidth and storage overhead in high-resolution deployments. Audio input and output terminals (via optional WV-QCA501A I/O cable when using 12 V DC power supply) allow integrated two-way communication. The motorized zoom and focus system integrates with standard PTZ control protocols, enabling remote operators to adjust field of view and focus without physical access. SD card recording capability (AAC-LC audio codec) provides local backup storage independent of network availability, critical for unmanned or isolated deployment scenarios.
