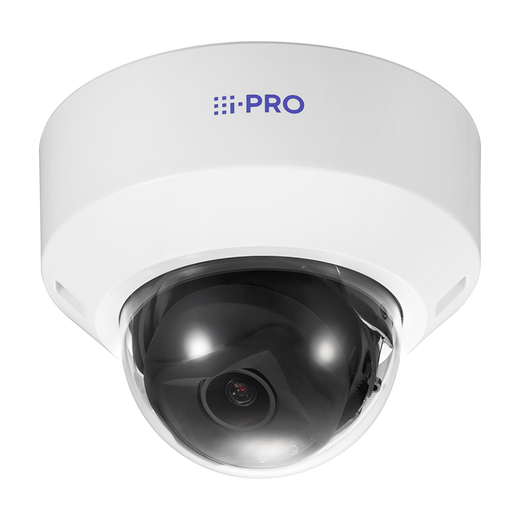

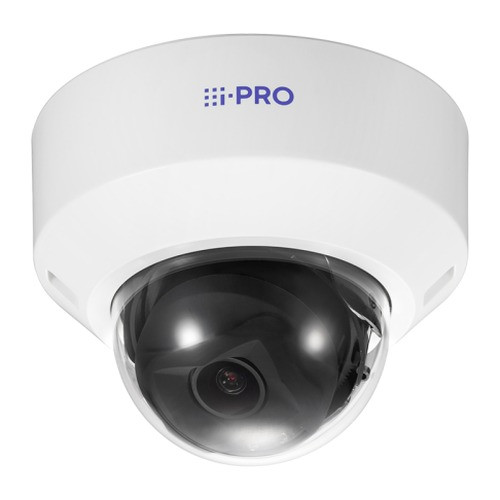

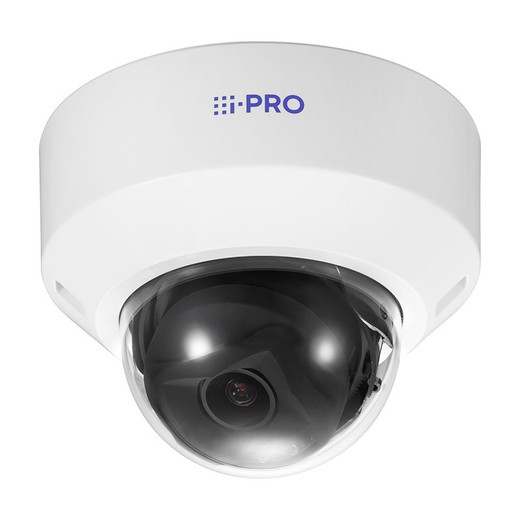

i-PRO WV-U21550-V3L Overview
The i-PRO WV-U21550-V3L is a 5MP indoor AI dome camera engineered for edge-based analytics and secure surveillance deployments. Featuring a motorized 3.2x optical zoom lens, integrated IR illumination with 28m range, and built-in FIPS 140-3 Level 3 certified SecureElement, this camera delivers both analytical intelligence and compliance-ready security in a compact form factor. Ideal for integrators deploying AI-driven motion detection and object analytics in controlled indoor environments.
i-PRO WV-U21550-V3L Key Features
- 5MP CMOS Sensor with Advanced Imaging: Approx. 1/2.8 type CMOS sensor with 5.12 mm (H) × 3.84 mm (V) scanning area delivers sharp, detailed imagery. Color minimum illumination of 0.07 lx (30IRE, F1.6, 1/30 s, AGC: 11) and ultra-low-light monochrome performance at 0.003 lx (50IRE, F1.6, 16/30 s, AGC: 11) ensure visibility across challenging lighting conditions.
- Motorized 3.2x Optical Zoom Lens: F1.6 motorized varifocal lens (3.2–10.2mm focal length) enables smooth zoom coverage and flexible framing without optical quality loss. Motorized focus and iris control supports dynamic scene composition.
- 28m Built-in IR LED Illumination: Integrated IR LED provides up to 28 meters (92 feet) of infrared coverage for reliable night-vision operation without external lighting infrastructure.
- AI-VMD Edge Analytics: AI-based Video Motion Detection (AI-VMD) application supports edge-based intelligent analytics, reducing bandwidth and backend processing load. Native support for multiple AI applications enables flexible deployment of detection, classification, and counting workflows.
- 120 dB Dynamic Range with Super Dynamic Processing: Advanced dynamic range compression (max. 120 dB when Super Dynamic is enabled at Level 31) handles extreme backlit and high-contrast scenes. Adaptive Black Stretch, Back Light Compensation (BLC), High Light Compensation (HLC), and Fog Compensation provide scene-adaptive image optimization.
- H.265, H.264, and JPEG Codec Support: Multi-codec support with H.265 and H.264 compression enables bandwidth-efficient streaming and storage while JPEG capture supports snapshot and forensic retrieval.
- FIPS 140-3 Level 3 Certified SecureElement: Built-in EdgeLock® SE052F (NXP Semiconductors) provides certified cryptographic protection, secure key storage, and tamper detection for compliance-critical deployments.
- NDAA Compliant Camera: Meets U.S. Department of Defense supply chain security requirements for federal and critical infrastructure procurement.
- Audio Recording and Detection Capabilities: Built-in audio input supports two-way communication and recording. Audio detection and AI-based Sound Classification enable acoustic event triggering and forensic audio analysis.
- IP42 Rated Enclosure: IP42 compliance protects against limited dust and water splash in indoor environments. Clear acrylic dome cover maintains optical clarity while providing impact resistance.
- Privacy Zone and Image Masking: Configurable privacy zones enable masking of sensitive areas such as office windows or restrooms while maintaining surveillance of primary zones.
- Advanced Video Quality Adjustments: Intelligent Auto exposure control, adjustable maximum gain (AGC levels 0–11), variable shutter speed (1/30 Fix to 1/10000 Fix @ 30 fps), and dynamic range optimization support diverse deployment scenarios. Fog Compensation (levels 0–8) improves visibility in obscured conditions.
i-PRO WV-U21550-V3L Integration & Compatibility
The WV-U21550-V3L is built on i-PRO's U-series platform and supports ONVIF standards for broad VMS integration. AI-VMD applications run natively on the camera edge processor, enabling rapid analytics response without remote compute dependency. Audio AAC-LC encoding is required for SD memory card recording. The camera operates via standard network connectivity (Ethernet 10Base-T/100Base-TX) and integrates with enterprise surveillance management systems supporting ONVIF Profile S and G workflows. Flexible mounting configurations support ceiling and wall installation in indoor spaces.
