i-PRO WV-U21350-V3L Overview

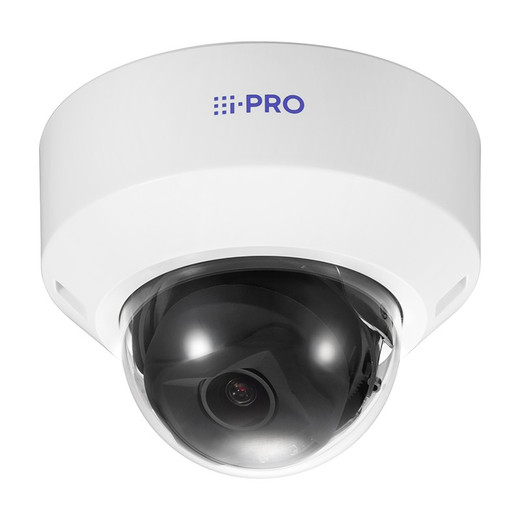

The i-PRO WV-U21350-V3L is a 2MP AI-enabled indoor dome camera engineered for security integrators and IT managers requiring advanced edge analytics in compact, fixed-installation environments. This U-series model combines optical zoom capability, intelligent infrared illumination, and built-in AI-VMD application support, making it suitable for office lobbies, retail spaces, corridors, and interior security applications where motion detection and object classification are primary requirements.
i-PRO WV-U21350-V3L Key Features
- 2MP resolution with 1/2.8-inch CMOS sensor – Delivers 1920 x 1080 video capture across three frame rate modes (1280 x 720, 320 x 180 supported), providing clarity for facial detail and activity documentation in indoor environments.
- 3.2x motorized optical zoom (F=3.2 to 10.2mm, F1.6) – Motorized lens adjustment enables field-of-view flexibility without requiring physical reinstallation, supporting diverse deployment scenarios from wide corridor coverage to focused entry monitoring.
- Built-in IR LED with 42m (138 ft) maximum range – Delivers 0 lux operation in complete darkness (IR on, 50IRE, F1.6, 1/30s, AGC 11), with extended minimum illumination ratings of 0.05 lx color and 0.004 lx (16/30s) in challenging low-light conditions.
- Edge AI analytics with AI-VMD application – Processes Video Motion Detection (VMD) and Scene Change Detection (SCD) on the camera itself, reducing bandwidth and backend processing load while enabling rapid threat response.
- Dual-codec H.265 and H.264 compression with JPEG snapshots – Supports flexible streaming configurations; H.265 reduces storage and bandwidth requirements compared to H.264 without quality loss.
- 120 dB dynamic range with Super Dynamic On/Off – Adaptive imaging with configurable Intelligent Auto, Back Light Compensation (BLC), High Light Compensation (HLC), and Fog Compensation handles challenging mixed-lighting scenes common in office and retail interiors.
- Audio recording capability – Built-in audio support (AAC-LC format on SD memory card) enables complete incident documentation where permitted by facility policy.
- FIPS 140-3 Level 3 Certified SecureElement (EdgeLock SE052F by NXP Semiconductors) – Provides certified cryptographic key storage and secure boot, meeting rigorous federal compliance and protecting against firmware tampering.
- NDAA Compliant camera – Meets U.S. federal procurement standards, cleared for deployment in government and defense contracting environments without supply chain restrictions.
- IP42 ingress protection – Sealed against dust and water splash, suitable for clean indoor installations; not rated for outdoor or high-moisture environments.
- Color/BW (ICR) with automatic mode selection – Supports Off, IR Light Off, IR Light On, and three Auto modes (Auto1/Auto2/Auto3), enabling seamless day/night imaging without manual configuration.
- Adaptive Black Stretch and Digital Noise Reduction – Enhances detail in shadow regions and reduces thermal noise in low-light conditions for cleaner, more usable night video.
i-PRO WV-U21350-V3L Integration & Compatibility
The WV-U21350-V3L supports ONVIF standards for broad VMS integration and is compatible with i-PRO surveillance platforms. The camera operates on standard IP network infrastructure via Ethernet 10Base-T/100Base-TX connectivity. Motorized lens and ICR (infrared cut filter removal) are remotely controllable, enabling operators to adjust zoom and color mode from NVR or third-party ONVIF-compliant management software. Maximum Shutter range extends from 1/4000 s to 16/30 s in 30 fps mode, accommodating both fast-motion and extreme low-light capture scenarios. Privacy Zone functionality supports masking sensitive areas within the frame.
i-PRO WV-U21350-V3L Shutter and Frame Rate Specifications
- 30 fps mode: Shutter 1/30 s fixed to 1/10,000 s fixed; Maximum Shutter 1/4000 s to 16/30 s
- 25 fps mode: Shutter 1/25 s fixed to 1/10,000 s fixed; Maximum Shutter 1/4000 s to 16/25 s
- White Balance: ATW1, ATW2, AWC (Automatic White Correction)
- Maximum Gain (AGC): Adjustable range 0 to 11
- Fog Compensation: On/Off with range 0 to 8 (when Intelligent Auto and Auto Contrast disabled)
- Adaptive Black Stretch: Configurable range 0 to 255
- Back Light/High Light Compensation: Range 0 to 31 when Super Dynamic and Intelligent Auto disabled
