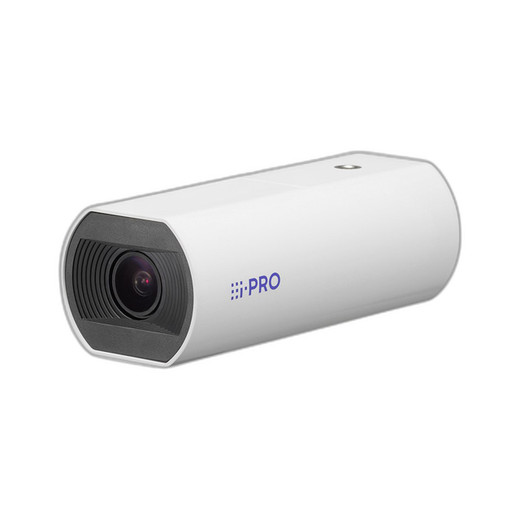

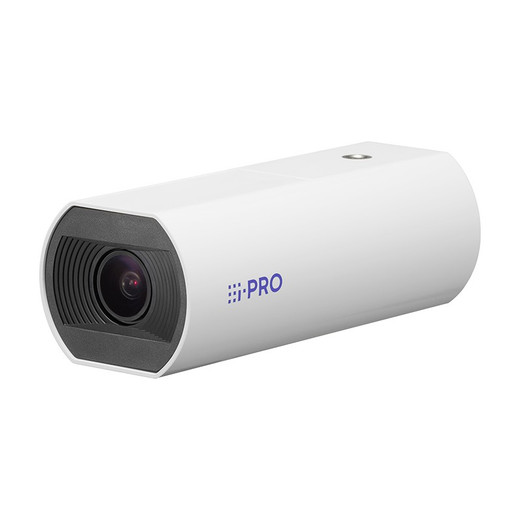

i-PRO WV-U11301-F3 2MP Indoor Box Camera

i-PRO WV-U11301-F3 Overview

The i-PRO WV-U11301-F3 is a compact 2MP indoor box camera designed for institutional and commercial surveillance deployments where space, security compliance, and reliable motion detection are critical. This fixed-lens model delivers consistent performance in controlled indoor environments, combining standard video analytics with hardware-level security certification—making it suitable for government, education, and regulated enterprise installations.

i-PRO WV-U11301-F3 Key Features

• 2MP resolution with 1/2.8-inch CMOS sensor: Captures clear, detailed video across a 5.57mm (H) × 3.13mm (V) scanning area, providing adequate facial and object detail for indoor monitoring applications.
• 3.2mm fixed focal length lens with F2.0 aperture: Wide field of view optimized for standard indoor coverage; F2.0 maximum aperture supports low-light performance and enables faster shutter speeds in bright conditions.
• Dual codec compression (H.265 and H.264) with JPEG snapshots: Flexible encoding options reduce bandwidth and storage requirements while maintaining video quality and compatibility with legacy systems.
• Excellent low-light performance: Minimum illumination as low as 0.07 lx in color (30IRE, F2.0, 1/30s, AGC 11) and 0.003 lx in black-and-white mode (50IRE, F2.0, 16/30s, AGC 11); intelligent auto mode and super dynamic range (up to 120 dB maximum) adapt to challenging lighting without manual adjustment.
• i-VMD video motion detection with 4 configurable areas: Standard motion detection engine supports 4 independent detection zones for flexible alarm triggering and event management; scene change detection available for 1 additional area.
• Built-in microphone for audio recording: Integrated audio capture enables synchronized sound with video; supports AAC-LC format for efficient recording to SD memory cards.
• FIPS 140-3 Level 3 Certified SecureElement (EdgeLock® SE052F by NXP®): Hardware-embedded security module provides cryptographic operations and secure credential storage, meeting federal security standards for sensitive deployments.
• NDAA compliant camera: Satisfies National Defense Authorization Act requirements for government and DoD-adjacent procurement; no blacklisted components or foreign security risks.
• White balance automation (ATW1/ATW2/AWC): Automatic white balance modes maintain color accuracy across varying lighting conditions without manual intervention.
• Adaptive image processing: Fog compensation (0–8 levels), back light/high light compensation (0–31 levels), adaptive black stretch, intelligent auto exposure, and digital noise reduction (0–255 levels) optimize image quality across diverse indoor environments.
• Color-to-BW conversion (ICR): Automatic, manual, or IR-light-triggered black-and-white switching; three auto modes support normal conditions, IR lighting, and specialized color space conversion (SCC).
• Compact form factor (59mm W × 48mm H × 142mm D): Lightweight design (approx. 250g / 0.56 lbs) permits discreet wall or ceiling mounting in confined spaces; white PC resin finish blends into standard office and institutional environments.
• Privacy zone masking: Configurable privacy zones block sensitive areas from recording, supporting GDPR and organizational privacy policies.

i-PRO WV-U11301-F3 Integration & Compatibility

The WV-U11301-F3 supports standard ONVIF profiles and integrates with enterprise video management systems via H.265, H.264, and JPEG stream protocols. Easy Kitting is supported for rapid deployment. Audio recording on SD memory cards requires AAC-LC encoding. For comprehensive integration guidance, network configuration, and power/PoE requirements, consult i-PRO technical documentation and your VMS administrator.
