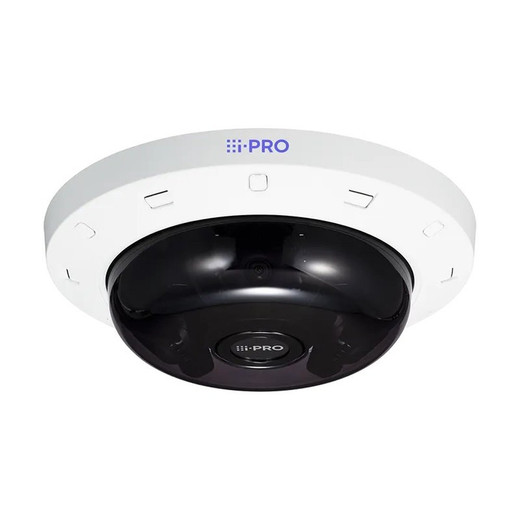

i-PRO WV-S8543G 3X4MP(12MP) Multi-Sensor Outdoor Vandal

i-PRO WV-S8543G Overview

The i-PRO WV-S8543G is a 3x4MP (12MP total) outdoor multi-directional network camera engineered for comprehensive surveillance with minimal footprint. Designed as the industry's thinnest multi-sensor camera at 90mm (3.5 inches), the WV-S8543G integrates three independent 4MP sensors into a single form factor, delivering 270° coverage through a single IP address and network cable. This model is ideal for integrators deploying perimeter security, facility monitoring, and high-security outdoor applications where vandalism resistance, AI-driven analytics, and low-profile installation are critical requirements.

i-PRO WV-S8543G Key Features

• 12MP Tri-Sensor Array with 270° Coverage: Three independent 4MP sensors (2688x1520 resolution) capture simultaneous video from three directions, delivering 270° coverage via a single IP address and Ethernet connection—eliminating the need for multiple cameras and simplifying network architecture.
• AI Engine with Smart Coding and Intelligent Auto: Embedded AI processor identifies people and vehicles, reducing false alarms compared to conventional motion detection. Smart Coding optimizes bandwidth by prioritizing AI-detected objects. Support for up to 4 different AI applications simultaneously enables flexible deployment across diverse use cases.
• Color Night Vision and IR-LED Function: Operates at 0.21 to 0.3 lux with color night vision capability. Built-in IR-LED lighting improves AI intruder detection accuracy in low-light and nighttime environments, ensuring reliable analytics performance 24/7.
• Advanced Dynamic Range Processing: Super Dynamic technology with 108dB dynamic range handles extreme lighting transitions. Includes Intelligent Auto with AI Engine, Adaptive Black Stretch, Back Light Compensation, High Light Compensation, and Fog Compensation for consistent image quality across variable outdoor conditions.
• IK10 Vandal-Resistant Construction: Aluminum die-cast main body with stainless steel corrosion-resistant fixing screws and polycarbonate smoke dome resin. Achieves IK10 impact resistance rating while maintaining a lightweight profile (approximately 3.1 kg / 6.83 lbs), suitable for high-risk outdoor deployment.
• FIPS 140-2 Level 3 Secure Element and NDAA Compliance: Built-in EdgeLock® SE050F (NXP® Semiconductors) FIPS 140-2 Level 3 compliant secure element with third-party digital certificates (GlobalSign®) meets federal security standards. NDAA compliant for government and defense procurement.
• Remote Zoom and Focus with Motorized Tilt Adjustment: Motorized focus capability enables post-installation angle adjustment and optimization without physical repositioning. Continuous view assistance via smartphone guides proper angle positioning during installation.
• H.265 and Smart Compression: Native H.265 video compression with Smart Coding optimizes bandwidth utilization for AI-prioritized content, reducing storage requirements and network load across multi-sensor streams.
• Panorama and Advanced Motion Detection: Panorama mode stitches multi-sensor feeds for comprehensive scene overview. VMD (Video Motion Detection) and SCD (Scene Change Detection) with AI enhancement minimize false triggers. Audio detection with AI sound classification available for multi-modal threat assessment.
• Privacy Zones and Flexible Deployment: Configurable privacy zones mask sensitive areas in each sensor's field of view. Wide-range tilt angle adjustment mechanism accommodates varied mounting scenarios (outdoor perimeter, wall-mounted, in-facility positioning). Low-profile form factor blends seamlessly with building architecture.
• Dual-Purpose Indoor/Outdoor Capability: Although rated for outdoor vandalism resistance, the thin profile and low-light color vision make the unit suitable for interior high-security facilities requiring multi-directional monitoring without visible camera arrays.

i-PRO WV-S8543G Integration and Compatibility

The WV-S8543G supports ONVIF standards for broad VMS interoperability. Single Ethernet connection integrates three sensor streams, simplifying network deployment in facilities using Milestone, Exacq, or other ONVIF-compliant management platforms. Standard attachment plate mounting supports wall and ceiling installation with motorized post-installation adjustment. Continuous view assistance via iOS and Android smartphone apps aids integrators during commissioning to confirm optimal sensor angles before final configuration.
