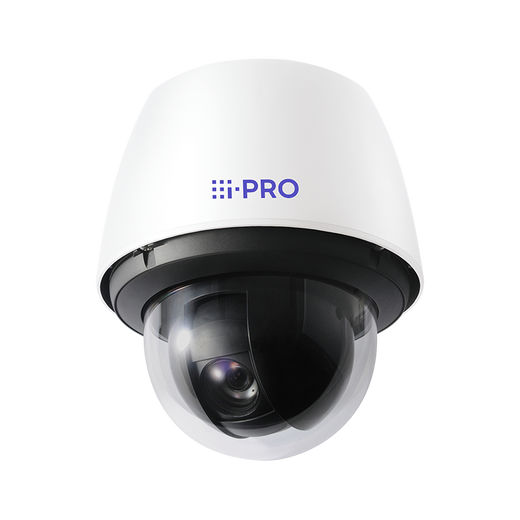

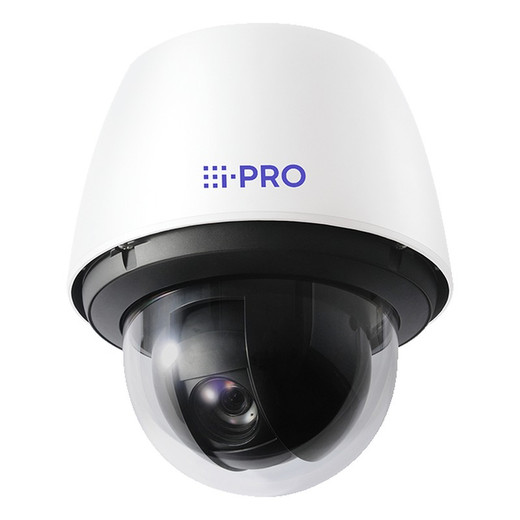

i-PRO WV-S65340-Z4K (2MP) Outdoor AI PTZ Dome Network IP Camera

i-PRO WV-S65340-Z4K

i-PRO WV-S65340-Z4K Overview

The i-PRO WV-S65340-Z4K is a high-performance PTZ network camera designed for large-scale surveillance environments that require long-range optical zoom and automated monitoring. The camera integrates advanced video analytics, high dynamic range imaging, and secure network communication features. It supports multiple video compression formats including H.265, H.264, and MJPEG while delivering Full HD streaming options for flexible bandwidth management. The system also integrates edge AI analytics such as people detection, vehicle detection, and scene change detection, enabling intelligent monitoring directly at the camera.

Lens and Coverage Geometry – What Actually Matters

The WV-S65340-Z4K uses a powerful 40× optical zoom lens with a focal length range of 4.25–170 mm. This optical range enables the camera to transition from wide situational awareness to detailed long-distance observation without changing physical position. The horizontal field of view ranges from approximately 65° at wide angle to 2.1° at telephoto in 16:9 mode. This allows operators to cover large open areas and then zoom into distant targets for detailed inspection.

Extra zoom extends magnification up to 60× when operating at lower resolution modes, while digital zoom can reach up to 640× for investigative review. These zoom capabilities make the camera suitable for monitoring large campuses, transportation hubs, ports, and critical infrastructure where targets may appear hundreds of meters away.

PTZ Motion and Preset Operation

As a PTZ surveillance platform, the camera allows dynamic repositioning across multiple coverage zones. Operators can program guard tours, automated patrol sequences, and preset viewpoints to monitor key areas such as entrances, loading zones, or perimeter boundaries. This type of automated coverage reduces the number of fixed cameras required for wide surveillance environments while still providing targeted inspection when necessary.

Video Processing and Image Quality

The camera incorporates advanced imaging functions including Super Dynamic with up to 144 dB dynamic range, adaptive black stretch, fog compensation, and digital noise reduction. These technologies improve visibility in challenging conditions such as strong backlighting, haze, or nighttime environments. Intelligent Auto operation adjusts exposure and image processing parameters automatically based on scene conditions to maintain usable video quality.

AI Analytics and Detection Capabilities

The WV-S65340-Z4K integrates onboard AI analytics to identify events and objects within the scene. Capabilities include AI video motion detection, AI face detection, AI people detection, vehicle detection, occupancy detection, and scene change detection. AI sound classification can also recognize acoustic events such as gunshots, yelling, vehicle horns, or glass breaking when audio is enabled. These features enable proactive alerting and automated incident detection directly at the edge.

Network, Storage, and System Integration

Network connectivity is provided through a 10Base-T / 100Base-TX RJ-45 interface. The camera supports IPv4 and IPv6 networking along with protocols such as HTTPS, SSL/TLS, SNMP, MQTT, and IEEE 802.1X for secure integration with enterprise networks and video management systems. Edge storage is available through microSD memory cards up to 512 GB for local recording, including scheduled recording, alarm-triggered recording, and failover recording during network interruptions.

Security and Cyber Protection

The device includes enterprise-grade security protections such as FIPS 140-2 Level 3 secure element hardware, signed firmware validation, device certificates, encrypted HTTPS communication, and brute-force protection. These features are designed to protect video infrastructure against unauthorized access or firmware tampering in regulated or mission-critical deployments.

Power and Infrastructure Requirements

The camera supports multiple power options including AC24V, PoE+ (IEEE 802.3at), and PoE++ (IEEE 802.3bt). Maximum power consumption is approximately 53.3 W when powered by AC24V or roughly 50.8 W when using PoE++ power delivery. These higher power requirements reflect the motorized PTZ mechanics and advanced onboard processing capabilities.

When This Is the Right Choice

This model is well suited for large-scale monitoring environments that require long-range zoom, automated PTZ patrols, and AI-driven event detection. Typical deployments include city surveillance networks, airports, transportation corridors, seaports, industrial facilities, and critical infrastructure security.

When It Is Not the Right Choice

If the deployment requires ultra-wide panoramic coverage without moving components, or if power availability is limited to standard low-power PoE devices, a fixed multi-sensor camera may be a more appropriate option.
