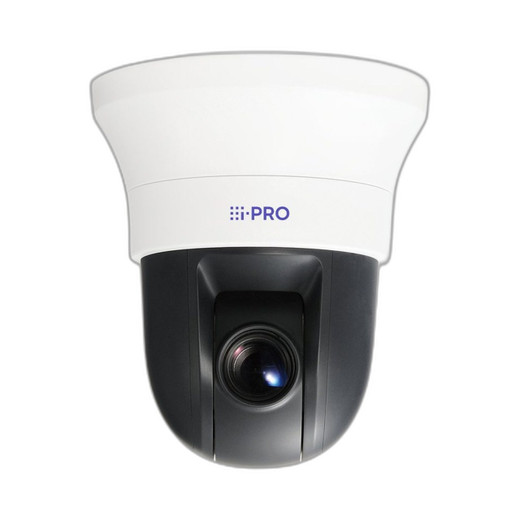

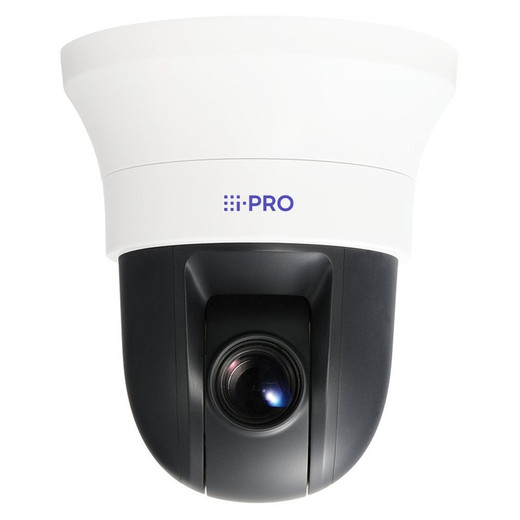

i-PRO WV-S61302-Z4 RB Overview
The i-PRO WV-S61302-Z4 RB is a 2MP (1080p) indoor PTZ network camera designed for automated wide-area surveillance with integrated AI engine capabilities. This S-series model combines 40x optical zoom with standard AI auto-tracking to enable security integrators to deploy intelligent monitoring without requiring external analytics servers. Built to withstand high-frequency pan-tilt movement from continuous auto-tracking, the WV-S61302-Z4 RB delivers enterprise-grade cybersecurity and NDAA compliance for sensitive facility deployments.
i-PRO WV-S61302-Z4 RB Key Features
- 2MP (1920x1080) Resolution: Captures full 1080p video for detailed identification across standard indoor surveillance applications.
- 40x Optical Zoom with 4.25–170mm Lens: Delivers significant magnification range for covering large indoor areas and zooming into specific regions without image degradation. Optical zoom preserves resolution across the entire zoom range, eliminating the soft-focus artifacts of digital zoom.
- AI Auto-Tracking Engine (Standard): Automatically detects people and vehicles in the monitored area, zooms in, and tracks movement with zero operator intervention. The S-series standard AI functionality eliminates the need for external analytics infrastructure and ensures operators never miss tracked intruders.
- Expandable AI Applications: Two additional AI analysis modules can be installed to add privacy guard, person/vehicle attribute detection, and other custom analysis functions, allowing integrators to grow surveillance capabilities without hardware replacement.
- Color Night Vision (0.001–0.015 lux): Intelligent Auto mode delivers color imagery in extremely low-light environments, enabling 24/7 monitoring with minimal false alarms. Operating range from 0.001 lux to 0.015 lux supports surveillance in near-total darkness.
- Super Dynamic 144dB WDR: Processes extreme contrast scenes (backlit windows, mixed indoor/outdoor transitions) in a single frame, ensuring foreground and background detail remain visible without multi-frame processing delays.
- Durable Pan/Tilt Gear Mechanism: Engineered for 3.7 million pan/tilt drive cycles, enabling continuous auto-tracking operation with minimal maintenance. Reduced gear wear compared to standard mechanisms lowers total cost of ownership over the camera's service life.
- FIPS 140-2 Level 3 Compliant Secure Element (EdgeLock® SE050F): Integrates NXP® semiconductor-based hardware security module for cryptographic operations, certificate management, and secure boot. Exceeds federal cybersecurity requirements for government and critical infrastructure deployments.
- NDAA Compliance: Meets U.S. National Defense Authorization Act requirements, ensuring the camera is approved for defense, intelligence, and federal agency procurement.
- Flexible Installation Options: Both pigtail and gromet connectors available for adapting to diverse mounting environments. Easy kitting reduces on-site assembly time.
- PoE and DC12V Power Options: Accepts either PoE (IEEE 802.3af, 48V, Class 0 device) or standalone DC 12V supply, providing flexibility in network architecture design. Maximum power consumption 12.95W (PoE) / 11.6W (DC12V) enables deployment on standard PoE midspans.
- Monitor Output for Field Adjustment: 3.5mm stereo mini jack outputs NTSC or PAL video signal, supporting field setup and troubleshooting without external capture equipment.
i-PRO WV-S61302-Z4 RB Integration & Compatibility
The WV-S61302-Z4 RB integrates via standard ONVIF protocol, enabling deployment across major VMS platforms including Milestone Husky, AXIS Camera Station, and other ONVIF-compliant systems. The camera supports NDAA and FIPS 140-2 Level 3 compliance for federal and high-security installations. As a network camera with built-in AI processing, it operates independently without requiring external GPU compute or analytics servers, reducing system complexity and cost. Installation supports both ceiling and wall mounting via pigtail or gromet connectors. Indoor deployment environment; not rated for outdoor or harsh weatherproof conditions.
