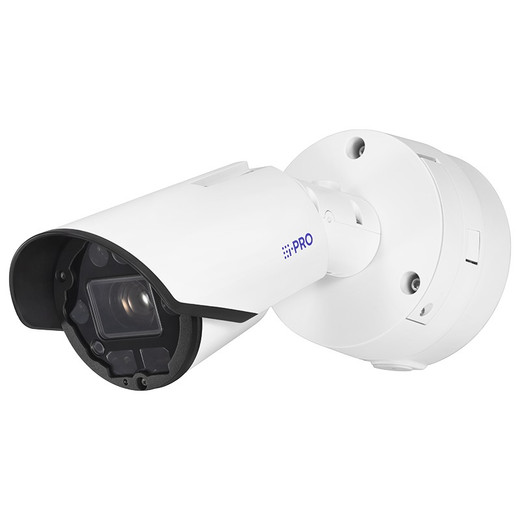

i-PRO WV-S15301-Z1L 2MP AI OUTDOOR IR BULLET CAMERA (10X ZOOM)

i-PRO WV-S15301-Z1L Overview

The i-PRO WV-S15301-Z1L is a 2MP outdoor IR bullet camera engineered for perimeter surveillance, access control, and remote monitoring applications requiring extended optical zoom and enhanced low-light performance. This fixed-mount bullet design combines motorized varifocal optics, built-in infrared illumination, and edge-based AI analytics in a weather-sealed, vandal-resistant housing suitable for high-security installations where NDAA compliance and cryptographic security are mandatory.

i-PRO WV-S15301-Z1L Key Features

• 2MP CMOS Sensor with Extreme Low-Light Performance — Approx. 1/2.8-inch type CMOS image sensor (5.57mm H × 3.13mm V scanning area) delivers color video at 0.011 lux (30IRE, F1.6, 1/30s, AGC:11) and monochrome at 0 lux with IR LED enabled, enabling identification-grade detail in near-total darkness.
• 10x Motorized Optical Zoom Lens — F1.6 motorized varifocal lens spanning 4.7–47mm focal length provides flexible framing from wide environmental context to distant subject detail without digital degradation, controlled via network configuration or physical mount adjustment.
• 250-Meter IR LED Illumination — Integrated infrared LED array projects 250m (820 ft) effective range for continuous surveillance independent of ambient light, with selectable on/off and intensity adjustment to prevent overexposure and blooming artifacts.
• Edge AI Analytics — Up to 3 Concurrent Apps — On-device processing supports simultaneous deployment of up to three intelligent analytics modules (e.g., object detection, perimeter intrusion, loitering) without server dependencies, reducing bandwidth and latency for real-time alerting.
• IP66, IP67, and IK10 Rated Enclosure — Sealed construction withstands jet spray washdown (IP67), moisture ingress (IP66), and heavy impact vandalism (IK10), qualified for exposed outdoor mounting in coastal, industrial, and high-vandalism environments.
• FIPS 140-2 Level 3 Compliant Cryptographic SecureElement — Integrated EdgeLock SE050F hardware security module (NXP Semiconductors) enforces secure boot, signed firmware authentication, and tamper detection at the component level, eliminating software-only trust boundaries.
• NDAA Compliant Manufacturing and Components — Meets U.S. Department of Defense supply chain security requirements; no covered foreign equipment or software, critical for federal and critical infrastructure procurement.
• Advanced Dynamic Range and Tone Management — Maximum 144 dB dynamic range (Super Dynamic enabled, Level 31) with adaptive black stretch, back-light/high-light compensation, and fog compensation (0–8 levels) ensures usable video across mixed lighting and severe weather conditions.
• Flexible Frame Rate and Shutter Control — Selectable 60, 50, 30, 25, 15, or 12.5 fps modes with independent shutter speeds (1/60 Fix to 1/10000 Fix in 60 fps mode; up to 16/30s maximum shutter) for bandwidth optimization and motion artifact tuning.
• Motorized Optical Components with Stable Focus — Motorized zoom and focus motors allow remote lens adjustment via network API or local configuration, enabling retrofitting to exact surveillance angles without site revisit.
• Intelligent Auto and Scene Adaptation — Automatic gain control (0–11 levels), intelligent auto mode (on/off), color-to-B&W switching (ICR), and scene-change detection adapt image processing to lighting transitions and environmental changes in real time.

i-PRO WV-S15301-Z1L Integration & Compatibility

The WV-S15301-Z1L communicates via Ethernet 10Base-T/100Base-TX (IPv4/IPv6) and supports ONVIF standard profiles for interoperability with third-party VMS platforms, including Milestone XProtect, Genetec, and open-source systems via HTTP/HTTPS REST APIs. On-device video motion detection (VMD) and scene-change detection (SCD) algorithms generate events triggerable by external schedules or automation rules. Audio input/output via optional I/O cable (WV-QCA501A) enables two-way communication and synchronized recording. PoE and 12 V DC power options accommodate both managed switch infrastructure and isolated DC supplies; when using 12 V DC with extended I/O features, the dedicated I/O cable is required.
