Hikvision DS-KD9633-WBE6 10in Facial Recognition Video Intercom

Hikvision DS-KD9633-WBE6 10-Inch Facial Recognition HD Video Intercom

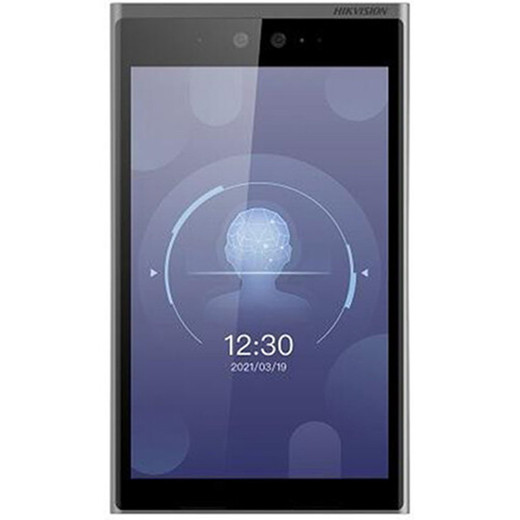

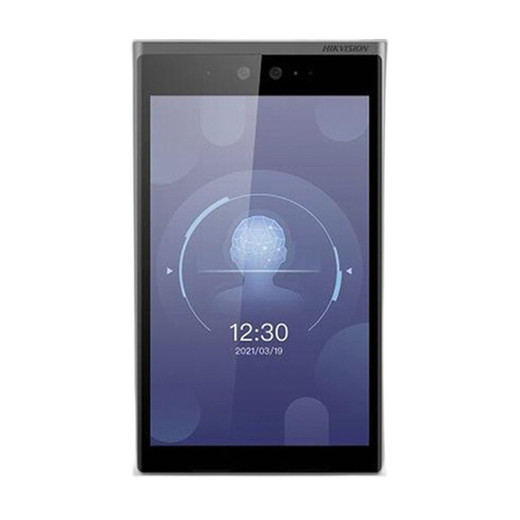

The Hikvision DS-KD9633-WBE6 is an advanced outdoor video intercom system combining a large 10.1-inch capacitive touchscreen display with dual 2MP HD cameras and sophisticated facial recognition technology. Engineered for secure access control in corporate facilities, government buildings, and high-security residential complexes, this device delivers seamless biometric verification alongside crystal-clear video communication, elevating entry management efficiency while maintaining robust security protocols.

Key Features

• 10.1-inch colorful IPS touchscreen with 410 cd/m² brightness for excellent outdoor visibility
• Dual 2MP HD cameras with 88° horizontal field of view and low-illumination capability
• Advanced facial recognition supporting up to 10,000 face records
• Capacitive touch operation with Android 7.1 operating system
• IP65 weatherproof and IK07 vandal-resistant rated for outdoor deployment
• Digital Wide Dynamic Range (WDR) up to 120 dB for challenging lighting conditions
• IR supplemental lighting extending up to 3 meters for night vision capability
• Dual omnidirectional microphones with noise suppression and echo cancellation
• Supports 20,000 user capacity and 100,000 card records for enterprise scalability
• Multi-language support including English, Spanish, French, Russian, German, and more

Technical Specifications

• Video Compression: H.264 at 1920×1080p and 1280×720p main stream, 1280×720p and 640×480p sub stream
• Audio Standard: G.711 U/A with 64 Kbps bitrate and adjustable volume
• Connectivity: Dual Gigabit Ethernet (10/100/1000 Mbps), Wi-Fi and Bluetooth support, 2 RS-485 ports, USB ports
• Access Control Integration: 13.56 MHz card reader, 2 relay lock control outputs (max 30 VDC, 2A), 4 alarm inputs, 2 exit buttons
• System Capacity: 500 linked indoor stations, 16 sub door stations maximum
• Power: 12 VDC, 2A with ≤18W consumption
• Operating Environment: -30°C to 60°C (-22°F to 140°F), 10-90% humidity (non-condensing)
• Physical: 271×159.2×26.5mm (10.7×6.3×1 inch), 1.225 kg net weight
• Installation: Surface or flush mounting for versatile deployment options

Applications

Ideal for office buildings requiring employee access verification, data centers demanding biometric security, government facilities needing visitor management, healthcare institutions requiring access control, and premium residential communities implementing touchless entry solutions. The system's scalability supports enterprise deployments with network protocol support via TCP/IP and RTSP for integration into comprehensive IP surveillance and access control systems.

Eden Phillips

The DS-KD9633-WBE6 represents a mature integration of facial recognition with video intercom functionality. The dual 2MP camera setup with 88° horizontal FOV ensures reliable face capture across typical entry scenarios, while 120 dB WDR and IR lighting address variable outdoor lighting conditions effectively. The 4GB ROM and 2GB RAM provide adequate performance for facial matching against 10,000 records without noticeable latency.

Ethernet redundancy (dual ports with one reserved) combined with Wi-Fi capability ensures reliable network connectivity. The 20,000 user capacity and 100,000 card record support make this suitable for large enterprise deployments. IP65/IK07 ratings guarantee reliability in harsh outdoor environments.

Integration capability with 500 indoor stations enables complex multi-building access control architectures. For organizations prioritizing touchless verification without sacrificing traditional credential support, this system delivers comprehensive access management in a single outdoor-rated device.
