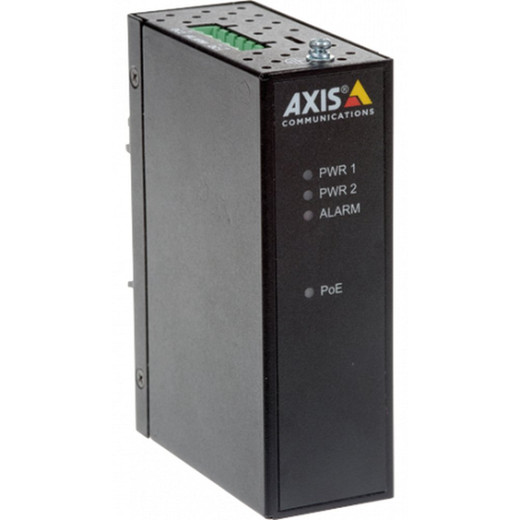

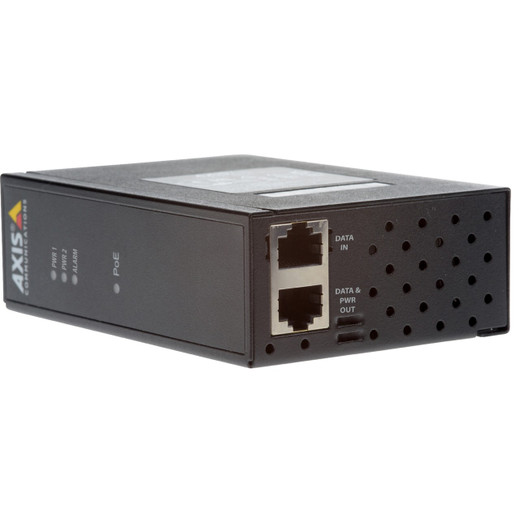

Axis T8144 60W Industrial PoE++ Midspan

Axis T8144 1-Port 60W Industrial Gigabit PoE++ Midspan

The Axis T8144 is a high-performance industrial midspan injector engineered to deliver reliable power and data over a single Ethernet cable in demanding outdoor environments. Rated for 60W output, this device enables seamless deployment of power-hungry network devices—including PTZ cameras, access points, and industrial sensors—without requiring separate electrical infrastructure.

Key Features

• 60W PoE++ power output supports high-demand devices
• Gigabit Ethernet (10/100/1000 Mbps) for high-speed data transmission
• Automatic PoE detection for universal device compatibility
• Industrial-grade steel casing with PVC-free materials
• Wide operating temperature range: -40°C to 75°C
• LED status indicators for power and alarm monitoring
• Wall-mount or DIN rail installation options
• Includes installation guide, DIN rail clip, and wall mount kit
• 5-year warranty for enterprise-grade reliability

Technical Specifications

• Power Input: 20–60V DC, up to 72W
• Power Output: 55V DC, 60W maximum
• Data Rate: 10/100/1000 Mbps Gigabit Ethernet
• Connectors: Shielded RJ45 (EIA 568A/568B), 6-pin terminal connector
• Dimensions: 78 × 36 × 111 mm (3.1 × 1.4 × 4.4 in)
• Weight: 315 g (0.7 lb)
• Humidity Rating: Maximum 95% RH (non-condensing)

Applications

Ideal for industrial surveillance systems, outdoor IP camera installations, wireless access points in remote locations, and any network device requiring high power delivery in harsh environments. Compliant with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) standards.

Environmental Compliance

The T8144 meets stringent safety and EMC certifications including IEC/EN/UL 62368-1, UL 508, EN 55024, EN 55032 Class A, and FCC Part 15 Class A. Its PVC-free design and wide temperature tolerance (-40°C to 85°C storage) ensure durability in extreme climates.

Eden Phillips

The T8144 fills a critical role in industrial surveillance deployments where standard PoE infrastructure is unavailable or impractical. Its 60W output significantly exceeds PoE+ (30W) limitations, making it essential for outdoor PTZ cameras and multi-antenna access points. The automatic detection feature eliminates configuration complexity, while the robust steel enclosure and extended temperature rating ensure performance in exposed industrial settings.

The inclusion of both wall and DIN rail mounting options provides flexibility for retrofit installations. For integrators managing distributed outdoor networks, this midspan delivers a cost-effective alternative to complete PoE++ switch infrastructure.
