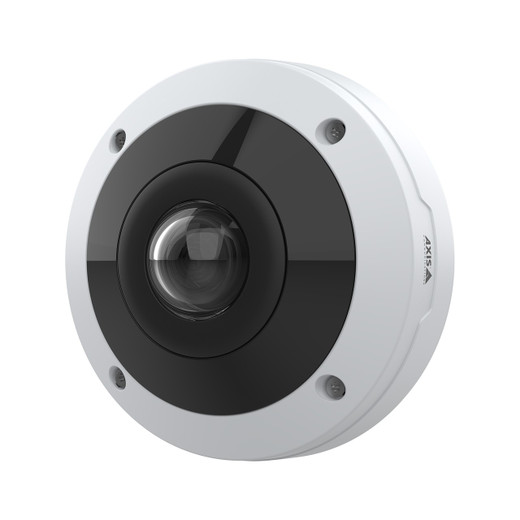

Axis M4317-PLR 6MP Vandal Resistant Panoramic Low Light IR Dome IP Camera, 02833-001

Axis M4317-PLR 6MP Panoramic IR Dome Camera

The Axis M4317-PLR is a multi-sensor panoramic IP camera designed to deliver comprehensive surveillance coverage in a single, vandal-resistant unit. With its 6MP resolution and 360° field of view, this camera eliminates blind spots and reduces the need for multiple camera deployments, making it ideal for high-risk indoor environments requiring robust, all-encompassing monitoring.

Key Features

• 6MP multi-sensor design with 360° panoramic coverage
• Vandal-resistant IK10 rating and IP66 weatherproof enclosure
• Lightfinder technology for exceptional low-light performance (0.16 lux minimum illumination)
• Built-in optimized IR illumination with individually controllable LEDs for 24/7 visibility
• Forensic WDR for detailed image recovery in high-contrast scenes
• H.264 video compression with Zipstream bandwidth optimization
• PoE power delivery for simplified installation
• Operating temperature range: -40°C to +50°C

Technical Highlights

The M4317-PLR captures 2160x2160 resolution at 50/60 fps, utilizing a 1/1.8" CMOS sensor with a 1.1mm focal length to achieve 182° horizontal and vertical fields of view. The panoramic lens design provides expansive coverage without the edge distortion common to traditional fisheye optics, ensuring usable detail across the entire frame.

Lightfinder technology significantly enhances visibility in low-light conditions, reducing noise while preserving critical details. When ambient light drops, the integrated IR system activates, delivering infrared illumination that extends surveillance capability into complete darkness. The Forensic WDR engine balances exposure across bright and dark areas simultaneously, enabling investigators to recover actionable evidence from frames containing both direct light sources and shadows.

H.264 compression combined with Zipstream technology reduces bandwidth and storage requirements without sacrificing image quality, a critical advantage in bandwidth-constrained surveillance networks. Secure Boot and signed firmware protections safeguard against unauthorized modifications.

Durability & Environmental Design

The camera's IK10 vandal rating withstands forceful impact, while the IP66 rating provides complete protection against dust and water jets. The all-polymer construction is BFR/CFR-free and PVC-free, meeting modern environmental standards. The extended operating temperature range ensures reliable performance in both heated and unheated indoor spaces.

Applications

Ideal for transportation hubs, retail environments, warehouses, parking facilities, and other high-security indoor locations where panoramic coverage and low-light performance are essential. The single-camera deployment model reduces installation complexity and ongoing maintenance costs compared to multi-camera systems.

Jerry Tildsen

The M4317-PLR's 360° panoramic design fundamentally changes surveillance economics by replacing 4-6 traditional dome cameras with a single unit. The combination of Lightfinder and Forensic WDR addresses the two most common surveillance failure modes—low-light environments and high-contrast scenes. The 0.16 lux minimum illumination in color mode, paired with optimized IR, delivers dependable forensic-grade footage in virtually any lighting condition.

IK10 vandalism resistance and IP66 weatherproofing ensure longevity in institutional settings where camera damage and tampering represent ongoing operational risks. PoE simplification and H.264/Zipstream efficiency make this camera particularly valuable in systems where bandwidth and power infrastructure are shared across multiple security zones.
