Axis M3905-R Fixed Dome Camera 10-Pack

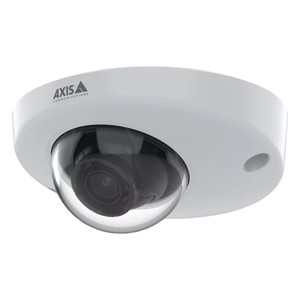

Axis Communications M3905-R M12 2.8mm Overview

The Axis M3905-R M12 2.8mm is a compact 1080p fixed dome onboard camera designed for rugged mobile and stationary deployments requiring a sealed M12 network interface. This bulk pack contains 10 units, making it ideal for fleet integrations, transportation systems, and large-scale surveillance projects where standardized camera configurations and M12 connectivity are essential. The camera combines a bright F1.2 lens with IP66/IP67 environmental sealing for demanding operational environments.

Axis M3905-R M12 2.8mm Key Features

• 1080p (2 MP) Progressive-Scan CMOS Sensor: Delivers sharp, detailed video at 1920x1080 resolution with a 1/2.9" progressive-scan RGB CMOS sensor and 2.8µm pixel size across multiple configurable resolutions (1920x1080 16:9, 1280x800 16:10, 1280x960 4:3)
• Bright F1.2 Fixed Lens with Wide Field of View: The 2.8mm, F1.2 M12-mount lens provides a 107° horizontal and 56° vertical field of view, enabling comprehensive scene capture even in low-light conditions; minimum focus distance is 0.3m (1ft)
• Superior Low-Light Performance: Color minimum illumination of 0.02 lux @ 30 IREF 1.2 and 0.07 lux @ 50 IREF 1.2 ensures usable video in challenging lighting; Forensic WDR with up to 120dB dynamic range handles high-contrast scenes; ForensicWDR technology with 2D and 3D noise reduction optimizes image quality in low-light environments
• Dual Video Compression and Zipstream Technology: Supports H.264 (MPEG-4 Part 10/AVC Main and High Profiles), H.265 (MPEG-H Part 2/HEVC Main Profile), and Motion JPEG; Axis Zipstream reduces bandwidth and storage requirements while maintaining forensic-quality video; configurable frame rates (H.264/H.265: 25/30 fps; MJPEG: 15 fps at 50/60Hz)
• Multiple Configurable Video Streams: Up to 4 unique and individually configurable video streams with support for H.264, H.265, and Motion JPEG; VBR/ABR/MBR rate control optimizes network efficiency; Axis recommends a maximum of 3 unique streams per camera for optimized user experience, bandwidth, and storage
• IP66/IP67 Environmental Sealing: Rugged dome housing rated IP66 and IP67 for protection against dust, water ingress, and harsh outdoor/vehicular conditions; includes lens tool for field maintenance
• Extensive Image Control and Pan/Tilt Capability: Pan ±30°, tilt 15–90°, and rotation ±175° with 0°/90°/180°/270° rotation including corridor format; digital PTZ with preset positions and guard tour functionality; 32 individual polygonal privacy masks for sensitive areas
• Advanced Image Processing: Forensic WDR, Lightfinder, and Axis Zipstream technology; scene profiles including forensic, vivid, and traffic overview; fine-tuned behavior for low-light operation; exposure control and dynamic exposure zones
• M12 Network Connector on Pigtail: Sealed M12 connector ensures robust, field-serviceable network connectivity ideal for mobile and outdoor installations; eliminates RJ45 vulnerability in harsh environments
• Compact System-on-Chip Architecture: S6LM55 SoC with 1024MB RAM and 512MB Flash memory for efficient on-camera processing and local intelligence
• Bulk 10-Pack Configuration: Volume pricing and uniform specification across 10 units simplifies procurement, deployment, and spare management for large-scale fleet and transportation projects

Axis M3905-R M12 2.8mm Integration and Deployment Considerations

The M3905-R M12 2.8mm supports ONVIF standard protocols for broad VMS compatibility. The camera is designed for mobile and stationary onboard applications; however, it is not rolling stock compliant, meaning it may not meet specific regulatory certifications for certain transportation vehicle types. Integrators should verify compatibility with target deployment environments and any applicable transportation or vehicular compliance standards. M12 connector compatibility with your network infrastructure and power delivery system is required. The bulk 10-pack format supports standardized fleet deployments where uniform camera specifications streamline installation, configuration, and maintenance workflows.

Axis M3905-R M12 2.8mm Package Contents

• 10x Axis M3905-R M12 2.8mm Fixed Dome Cameras
• 1x Lens Tool
